Adventure

Adventure

Slant Load

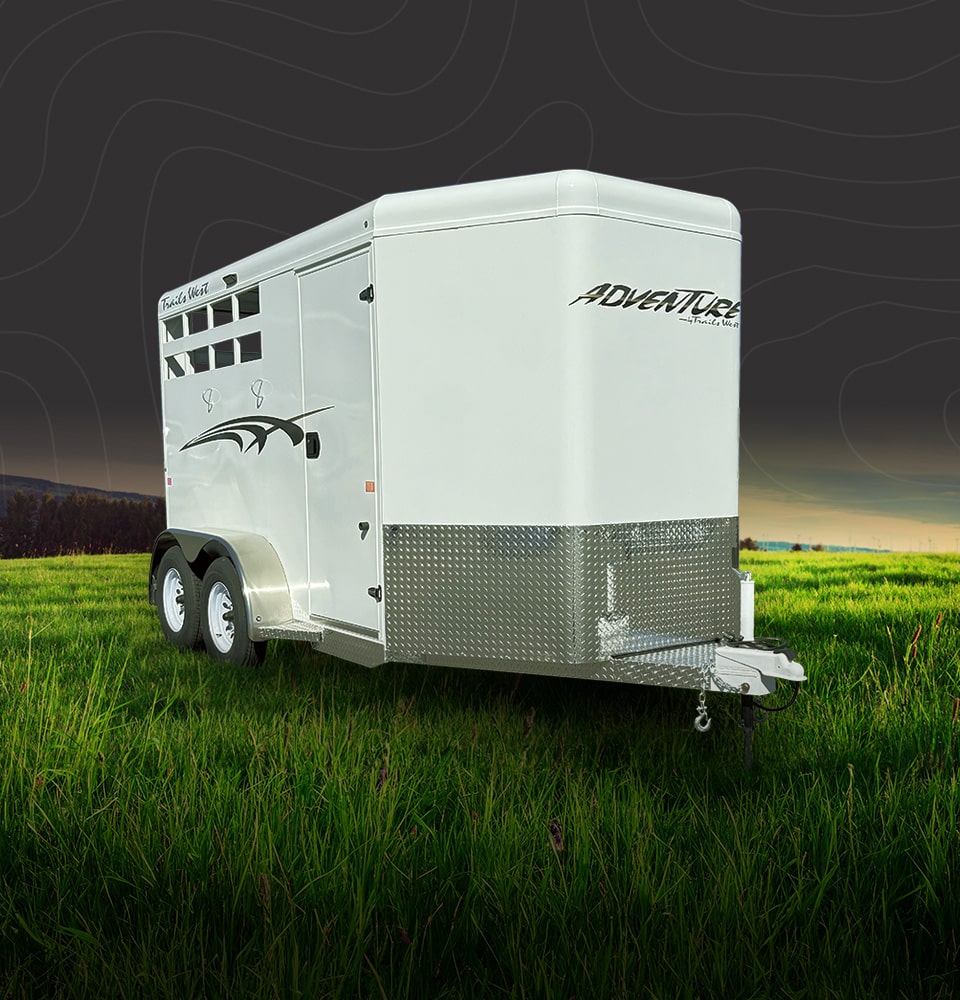

The Adventure is the most economical horse trailer we build.  It is high in standard features with a feasible cost, making it one of the best values in the industry.  This trailer, with double air gaps on head and tail side, is 6’9″ wide and  7’0″ tall.  It is standard with horse dividers, rubber floor mats and 48″ tall rubber wall mats around the entire sides of the horse compartment.

Download Brochure

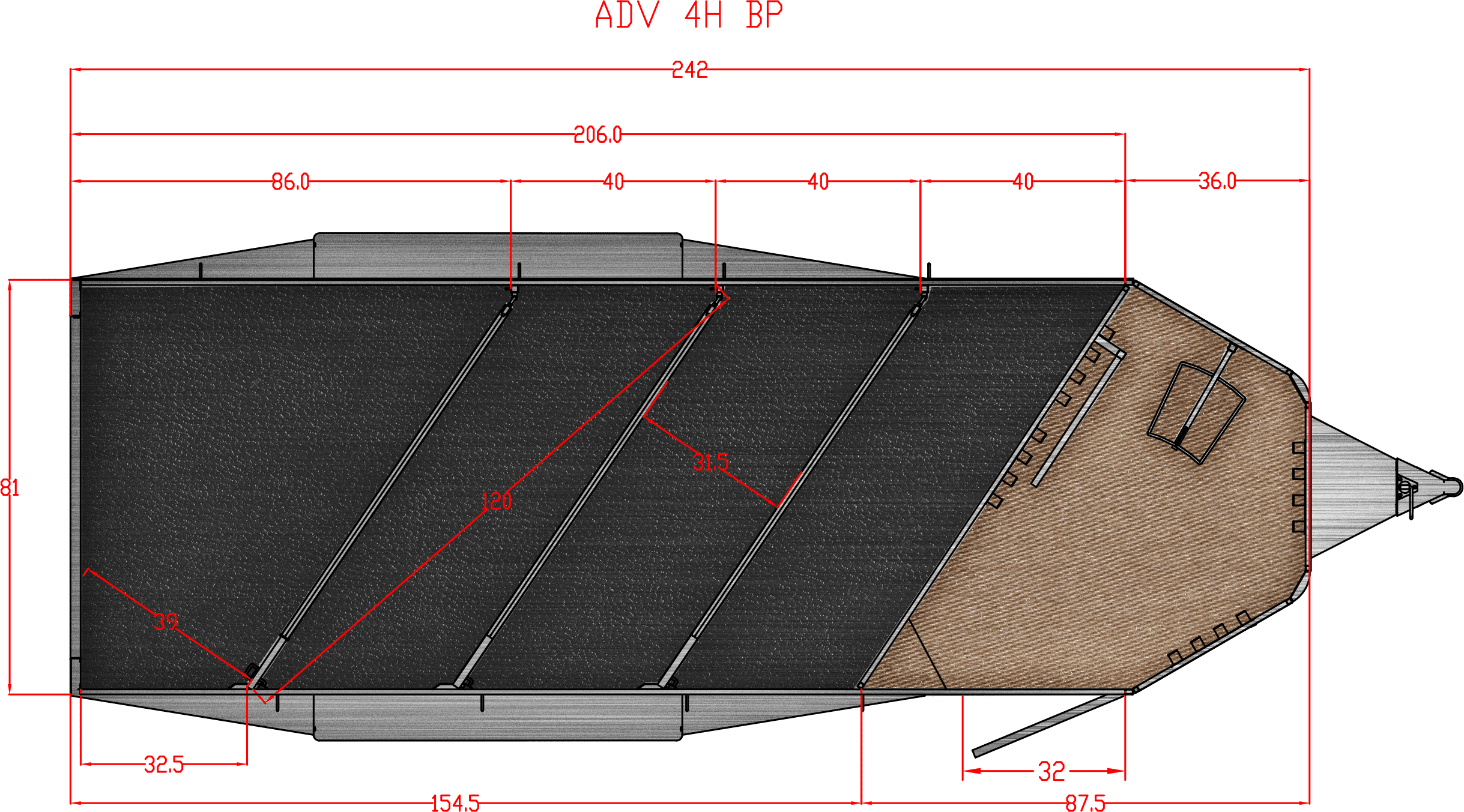

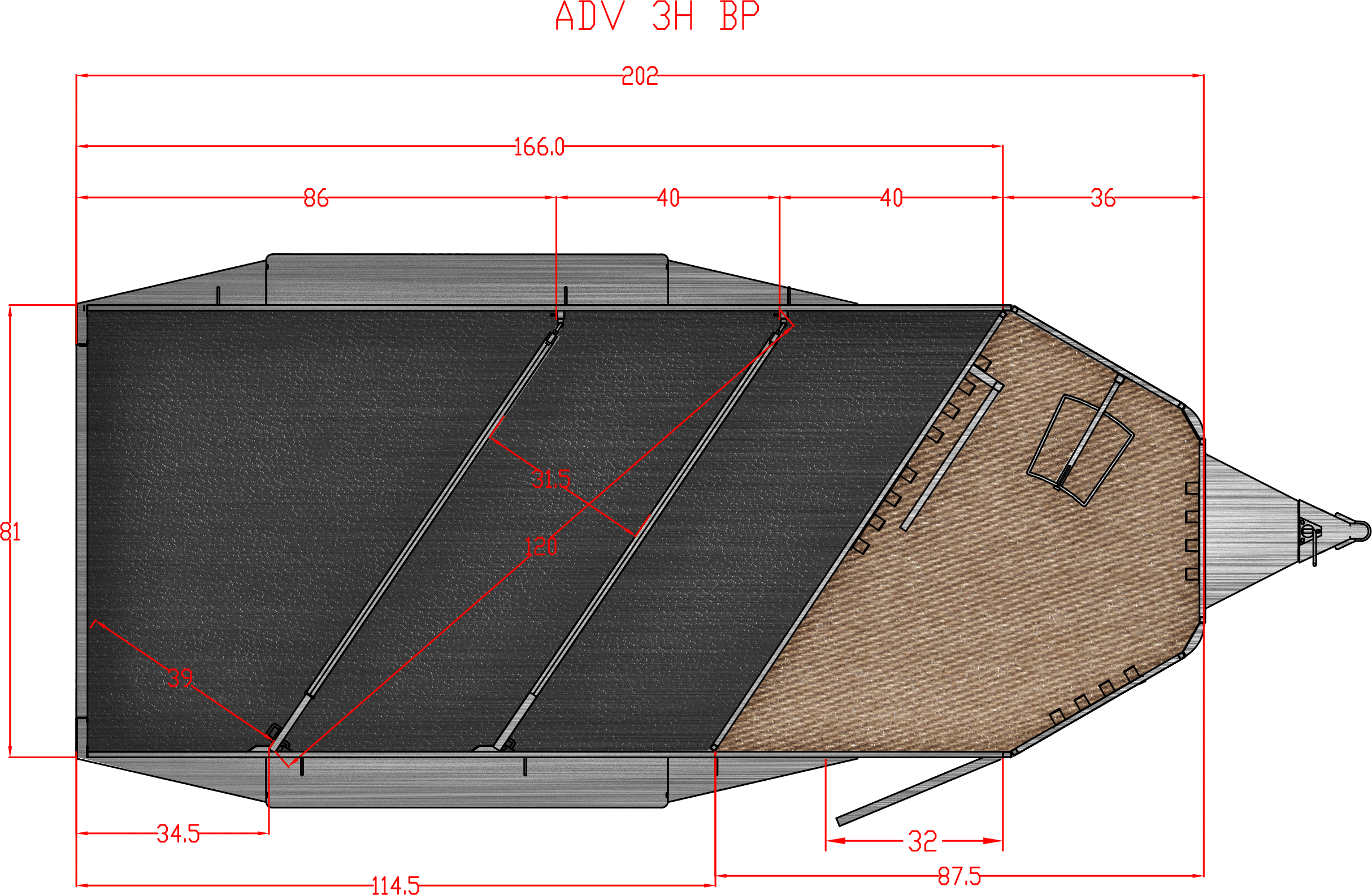

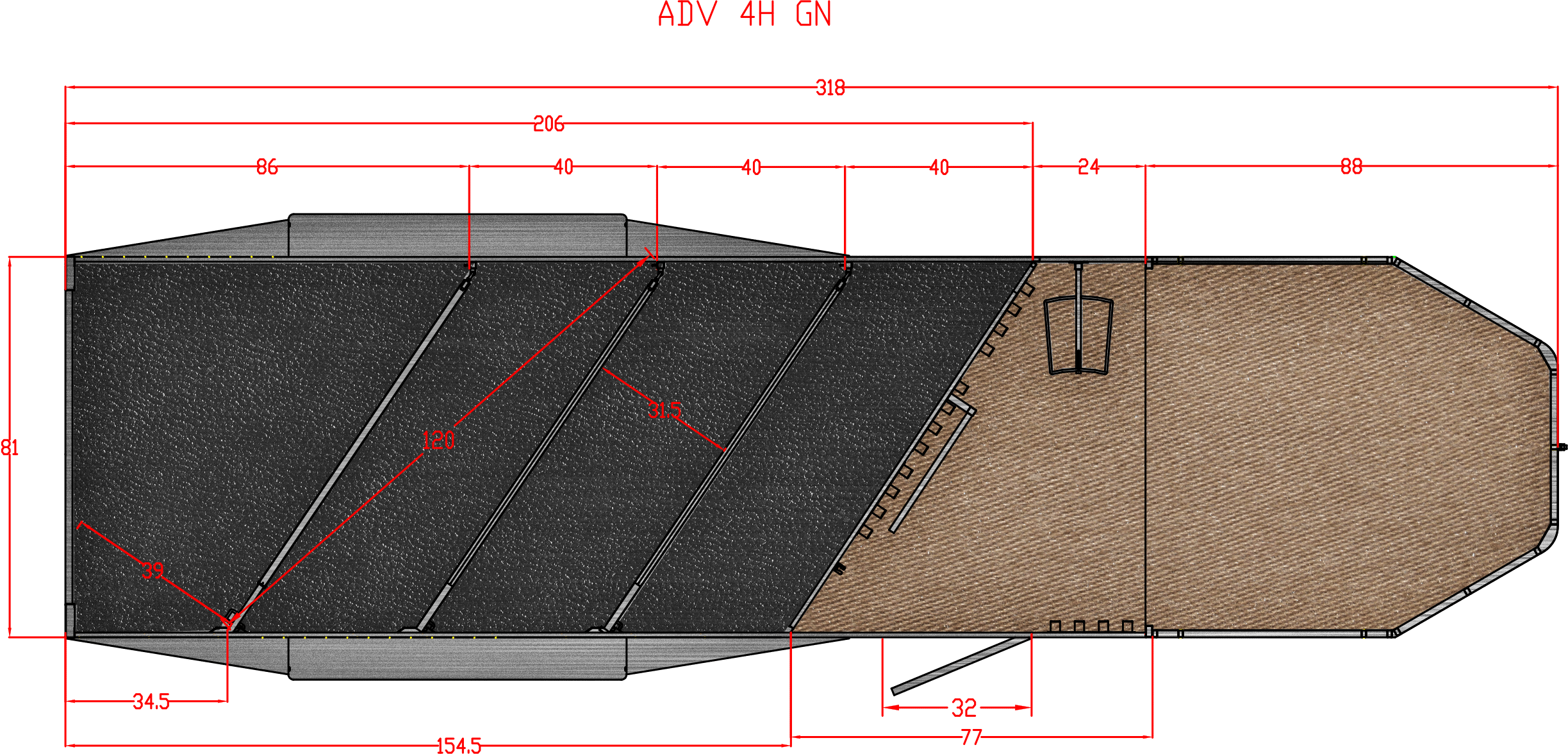

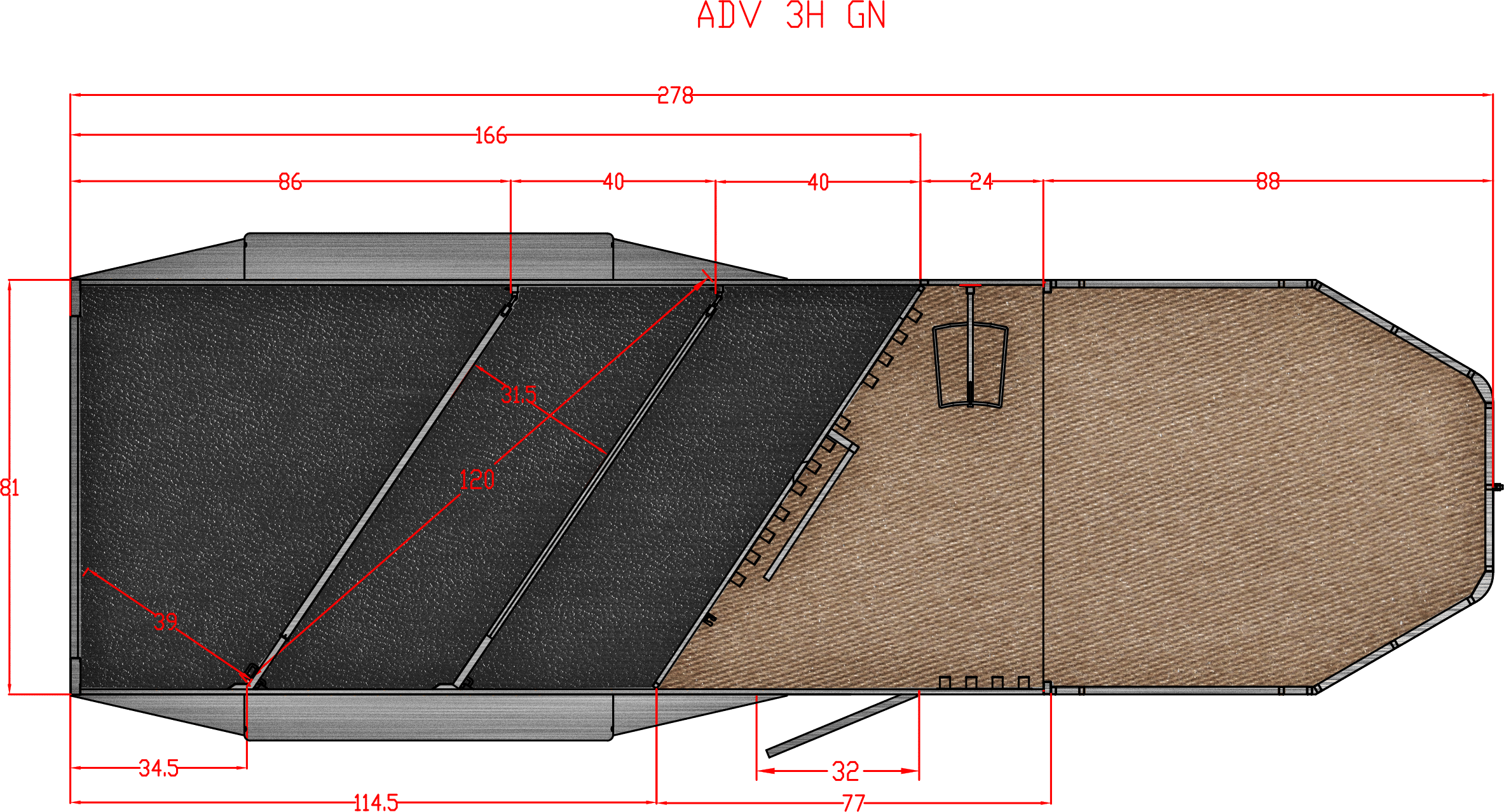

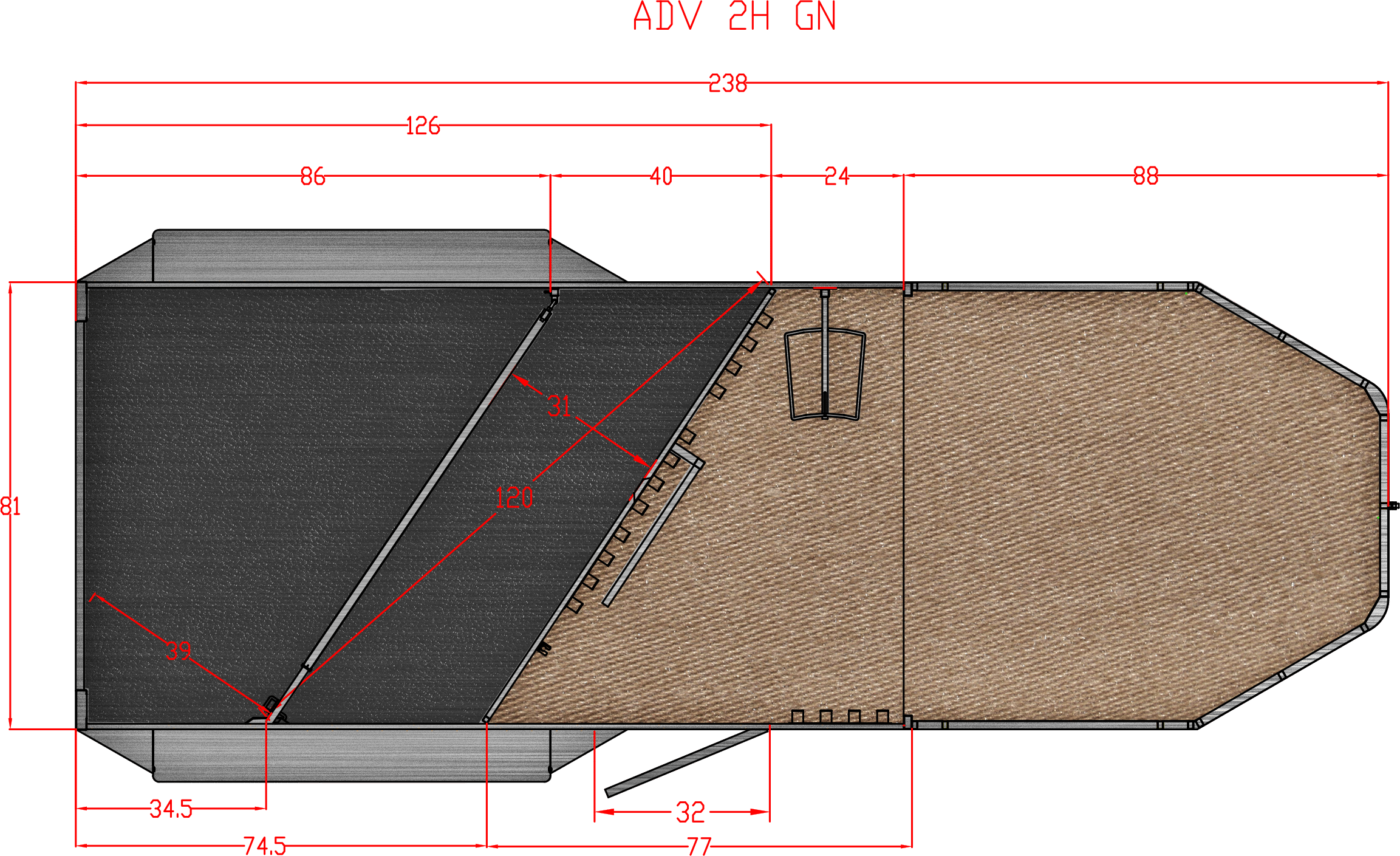

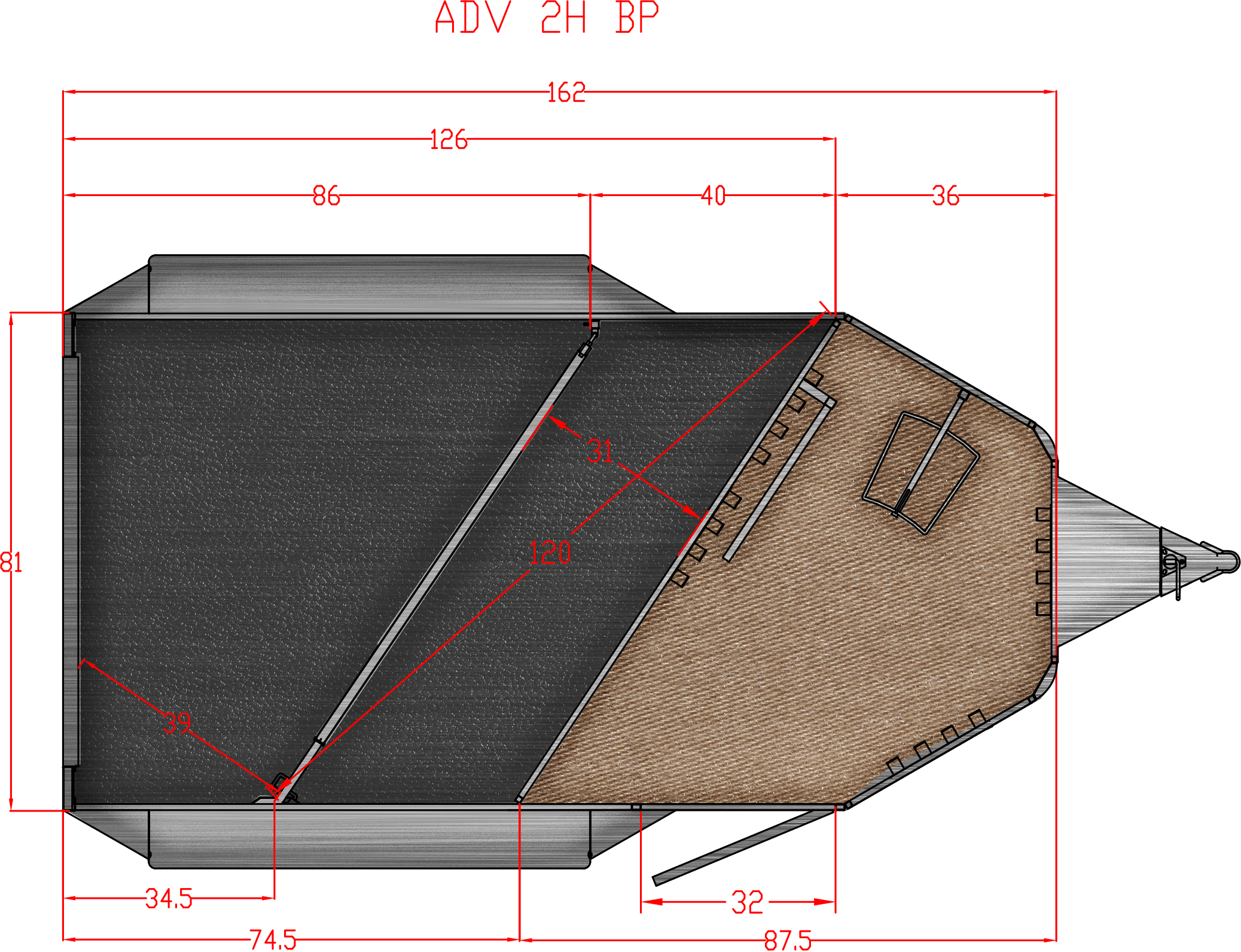

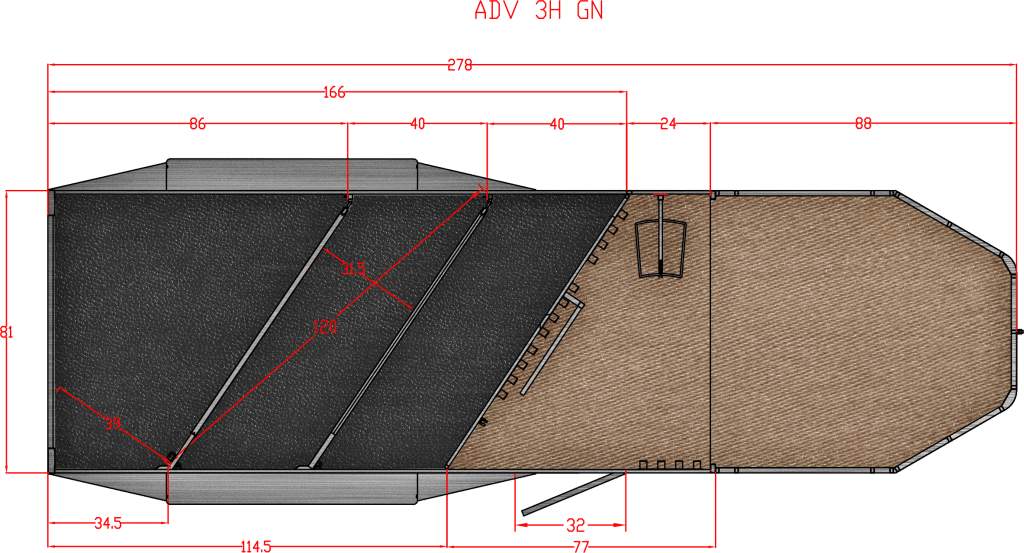

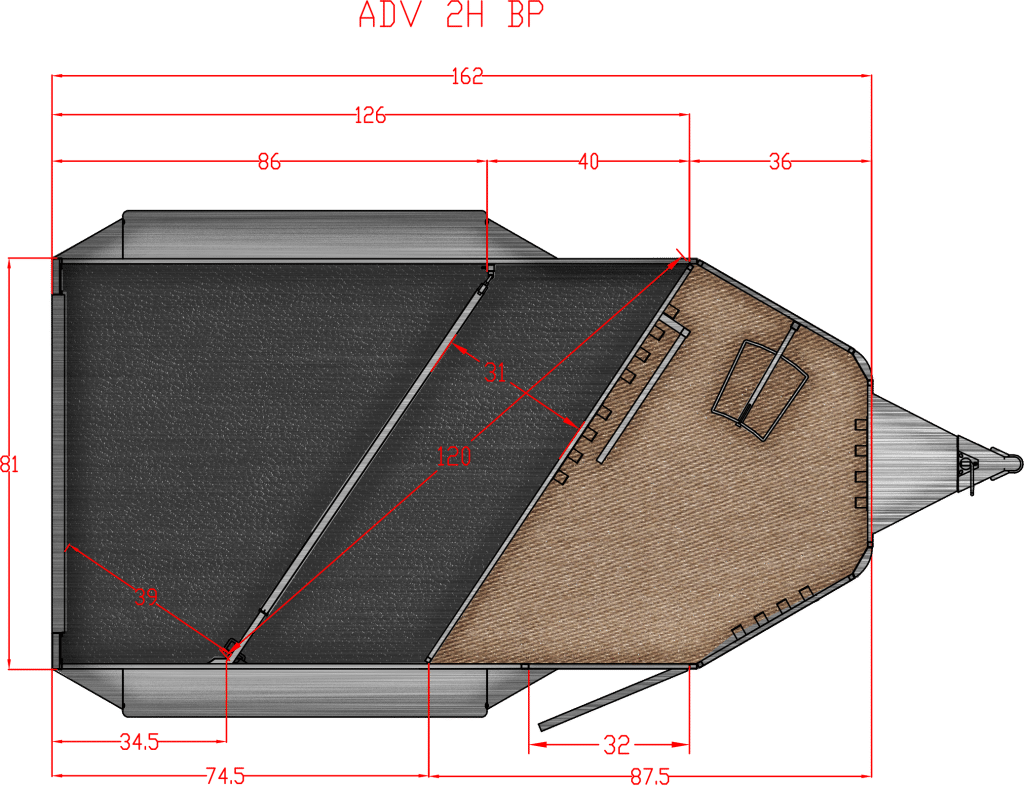

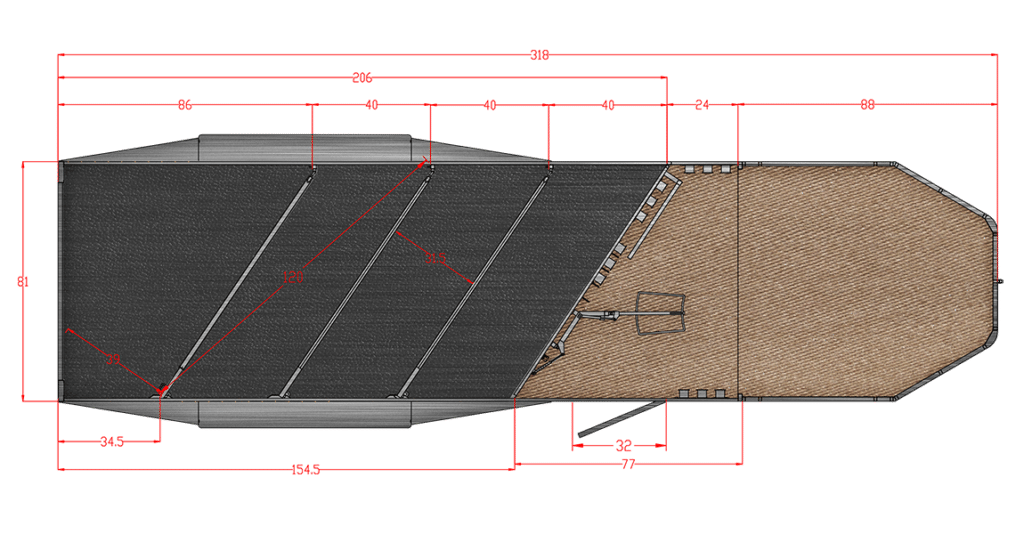

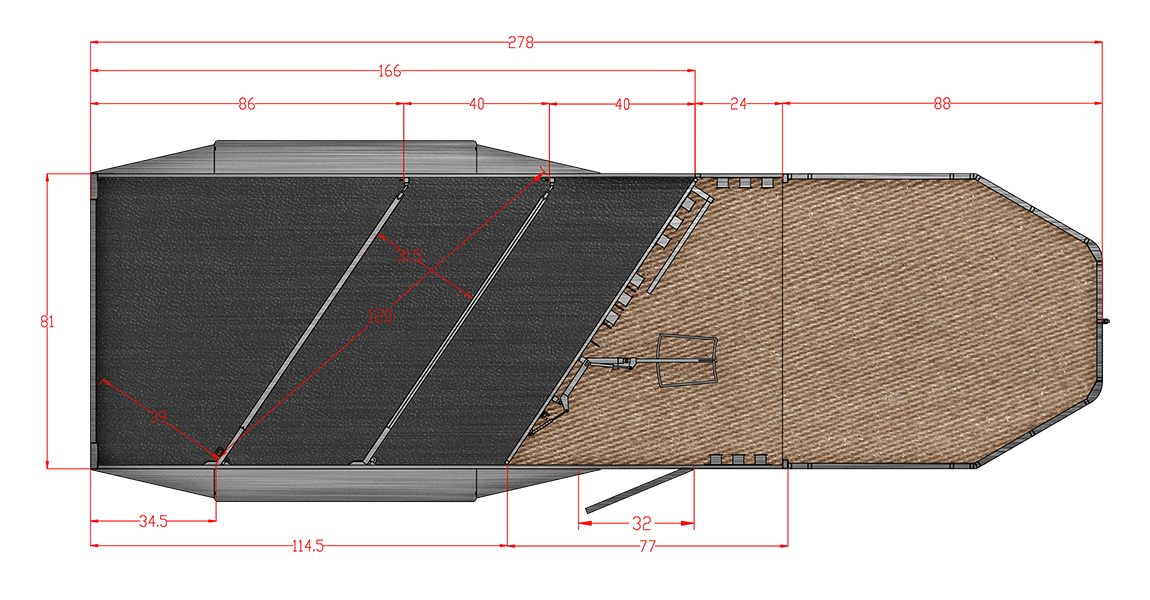

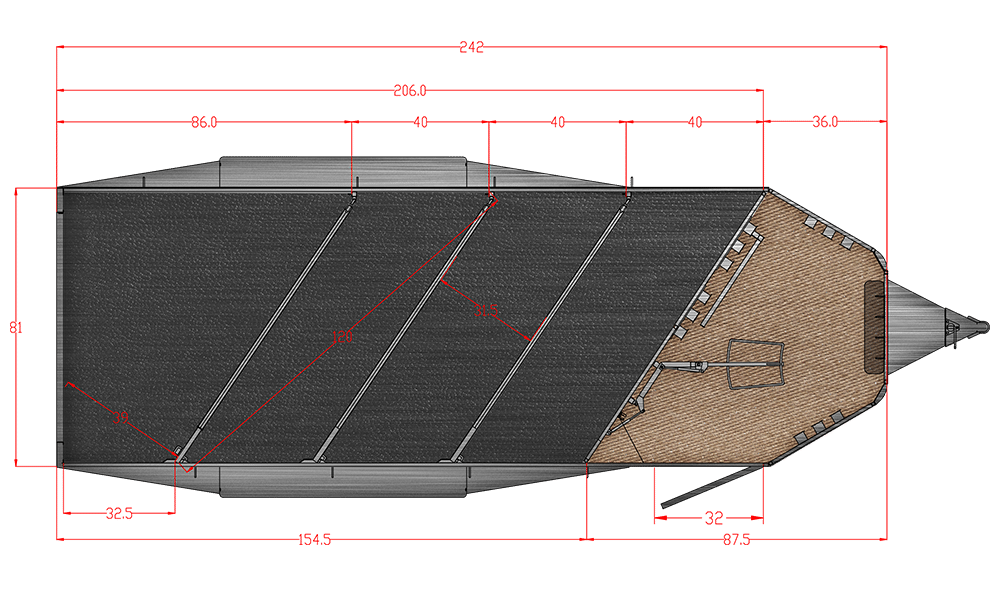

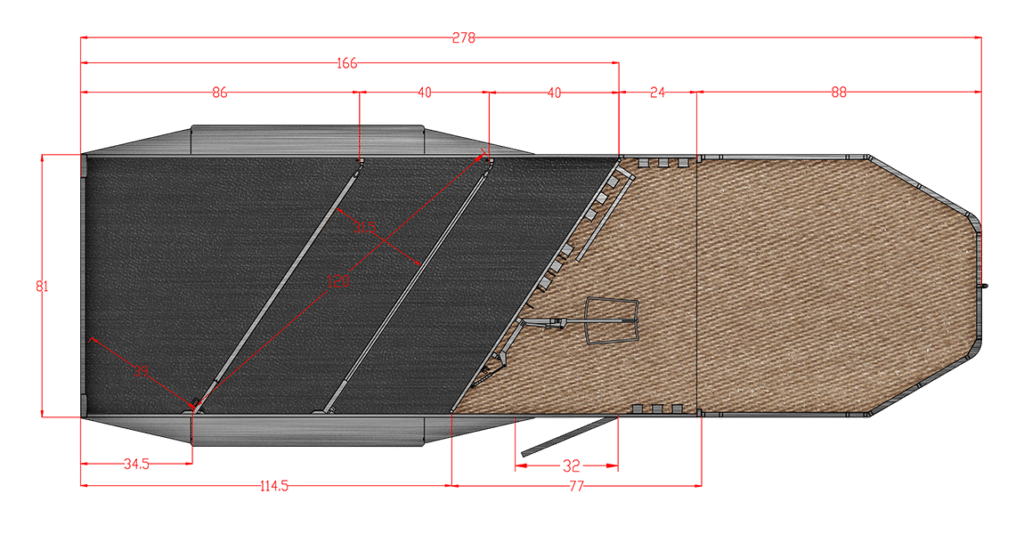

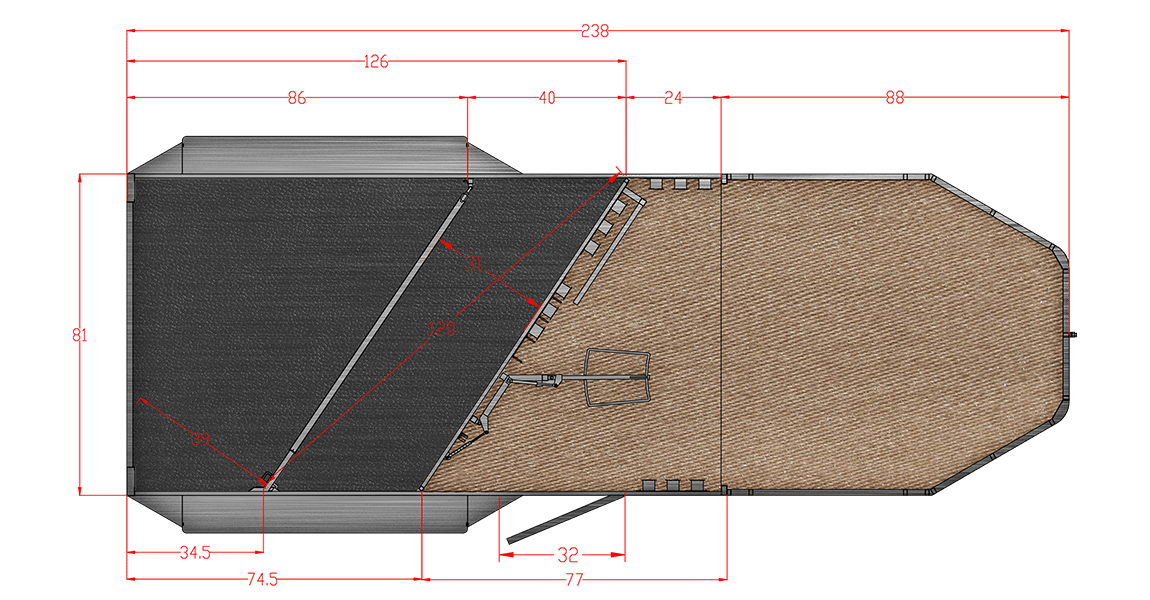

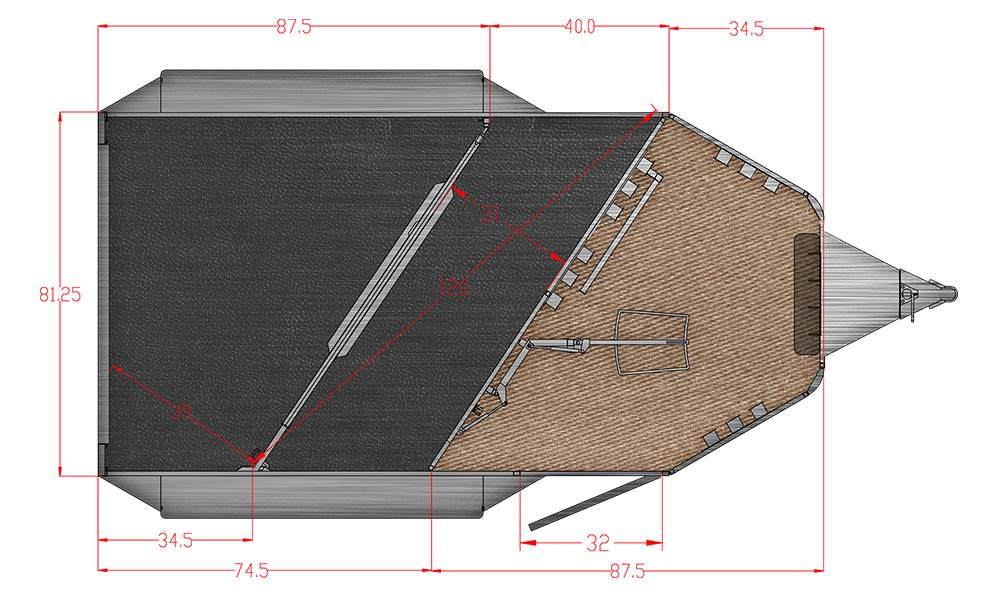

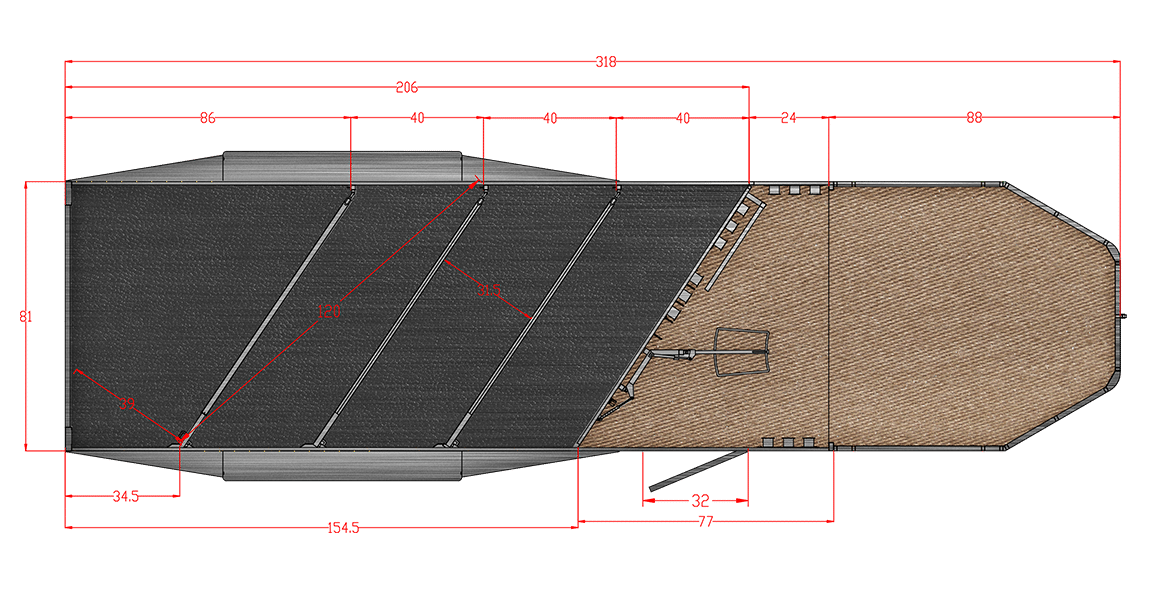

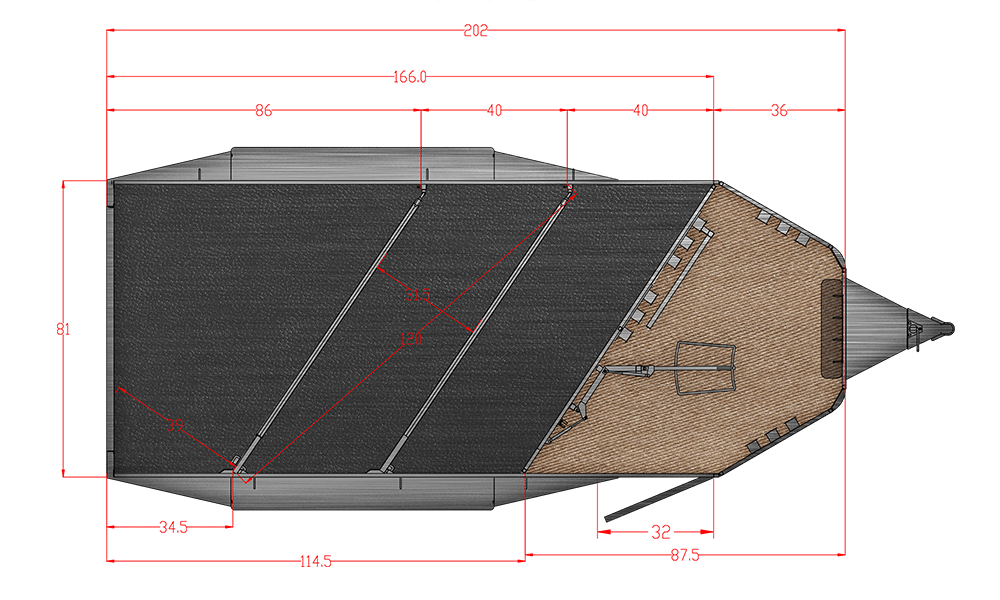

floor plans


Specifications

SIZE
2 Horse GN
3 Horse GN
4 Horse GN

FLOOR LENGTH
13’0″
15’0″
18’2″

WEIGHT*
4190 lbs.
4620 lbs.
5040 lbs.


AXLES*
3500 lbs
5200 lbs.
5200 lbs.

TIRE SIZE
16″ 10 Ply Load Range E
16″ 10 Ply Load Range E
16″ 10 Ply Load Range E




*Weights are approximate.


Find a Dealer
Get a Quote
Join Our Newsletter

Features

Standard Features:

6’ 9” Wide, 7’0” Tall
Triple Wall Construction
Electro-galvanized Sheet Steel
1 Piece Aluminum Roof
4 Wheel Electric Brakes
Easy Lube Hubs
Radial Tires
Aluminum Fenders,Tread Brite Steps & Front Gravel Guard
Double Air Gaps, Head & Tail Side

Rubber Bumper

Epoxy Primer
Infrared Cured Polyurethane Paint
Molded Seven-Way RV Plug
One Year Limited Warranty

Tack Room Features:

Steel Angle Wall
32 Inch Inset Tack door
Dome Light
Corner Brush Tray – Water Tank Ready
Tack Door Brush Tray
Two, Three or Four Place Saddle Racks
16 Bridle Hooks
2 Blanket Rods
Clothes Rod
Camper Vent
Carpeted Floor

Carpeted GN Deck and Bulkhead

Screened Windows Each Side of Gooseneck

Horse Compartment Features:

Double Air Gaps (Head & Tail)
Dome Light in Horse Compartment
Slam Latch Dividers
Rubber Floor Mats
Rubber Wall & Rear Gate Mats
Tie Rings in each stall
One Piece Rear Gate with Double Air Gaps
Slam Latch Dividers

Paint Finish Features:

Acidic Phosphatizing Wash
Polymer Coating
Epoxy Primer
Polyurethane Paint
Infrared Cured



Options

Available Options

Convenience Package*
Swing-out Saddle Rack
Plexiglass Head, Tail or Rear Gate
25 Gallon Water Tank
Door Mounted Tack Organizer
Sport Bag
Flood Light
Spare Tire
Pop Up Roof Vent in Horse Area
Chrome Center Caps
Exterior Aluminum Ramp
Divider Pads
Feed Bags
* Convenience Package includes: swing-out saddle rack, spare tire, water tank, door mounted tack organizer, sport bag, load light by each side and rear gate
