Sierra

Sierra

Slant Load

The Sierra model is our flagship trailer.  It is loaded with standard features such as aluminum wheels, chrome middle belt molding and two-toned paint scheme that will turn anyone’s head when you pull into the fair grounds or trail head.  The ceiling in the horse compartment is lined and insulated to keep the day time sun from penetrating helping the trailer stay cooler for your horse.  A fully carpeted angle wall in the tack room allows you to hang plenty of tack without scratching the wall.  This is the trailer that serious equine enthusiasts are looking for.  Style, flashy looking, highly functional along with getting the most for your money will make your friends envious.

Download Brochure

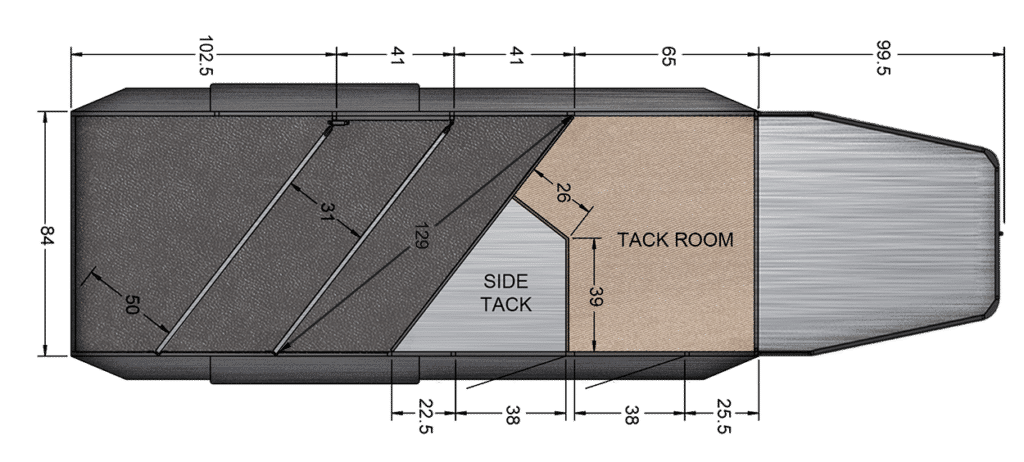

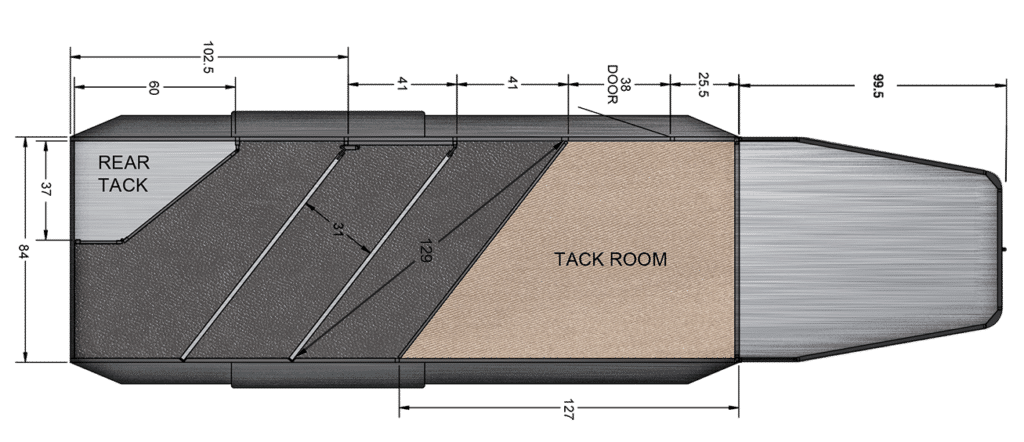

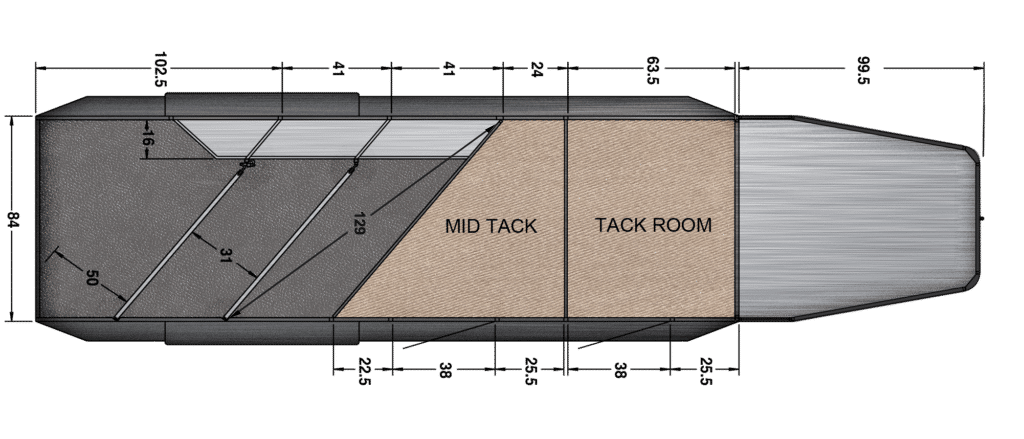

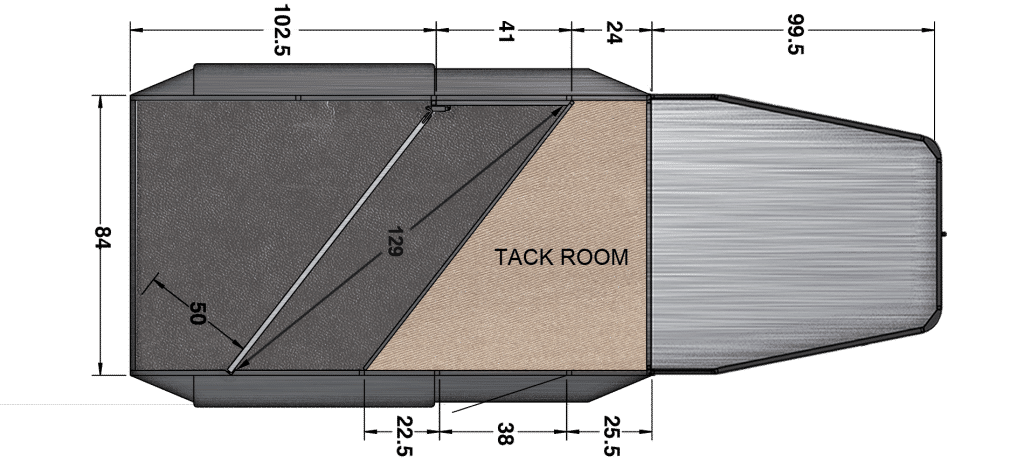

floor plans


Interior Gallery

*Features shown may be optional


Specifications

SIZE
2 Horse GN
3 Horse GN
4 Horse GN
5 Horse GN
6 Horse GN

FLOOR LENGTH
14’0″
17’5″
20’9″
24’2″
27’6″

WEIGHT*
4131 lbs.
4563 lbs.
5049 lbs.
5562 lbs.
6030 lbs.


AXLES*
3500 lbs.
5200 lbs.
6000 lbs.
6000 lbs.
6000 lbs.

TIRE SIZE
ST225/75R15 Load Range D
ST235/80R16 Load Range E
ST235/80R16Load Range E
ST235/80R16 Load Range E
ST235/80R16 Load Range E


*Weights are approximate.


Find a Dealer
Get a Quote
Join Our Newsletter

Features

Structural Features
7’0″ Wide, 7’0″ Tall
Aluminum One-Piece Roof
.050 Aluminum Exterior Sheets
45/55 Cargo Doors
Torsion Axles with Easy Lube Hubs
Four Wheel Electric Brakes
Radial Tires

Horse Compartment Features
Triple Wall Construction
Lined and Insulated Roof
Aluminum Drop Down Feed Doors with Drop Down Safety Grill
Slam Latch, Aluminum Jailbar Dividers
Divider Pads
Sliding Windows on Tail Side
Aluminum Pop-Up Roof Vents in Each Stall
Rubber Wall Mats
Stall Light per Stall with Exterior Switch
Floor Mats

Tack Room Features
Fully Sealed Angle Wall With Carpet
Carpeted Floor and Gooseneck Deck
Screened Window on Each Side of Gooseneck
38″ Inset Double Skinned Tack Door with Window
Dome Light (2 in GN)
Eight Place Powder Coated Swing Out Blanket Rack
Twelve Powder Coated J-Hooks
Four Powder coated Head stall Holders
Two Brush Trays
Swing Out Saddle Rack

Trim Features
Exclusive “Sierra Graphics” Package
Choice of Graphic and Roof Rail Color
Tread Brite Front and GN Gussets
Aluminum Fenders
Extruded Aluminum Running Boards
Aluminum Wheels
Chrome Grab Handle Near Tack Door
Two Sets of Tail Lights
Rubber Bumper
LED Lighting
Backup Lights
Molded Seven-Way RV Plug
Hot wire Package

Paint Finish Features
Acidic Phosphatizing Wash
Polymer Coating
Epoxy Primer
Polyurethane Paint
Infrared Cured

Options

Tack Room Options
Convenience Package*
Comfort Package
(Includes line and insulate, vanity, boot box, hat racks, 12V power point)
Vanity Cabinet with Mirrored Door
Stationary Saddle Rack (Black Powder Coated)
Retractable Screen for Tack Door
Additional Length (Not Available in 4H BP)
Angled Mid Tack
Mid Tack
Side Tack (Not Available in 4H BP)
Sealed Rear Tack
Folding Rear Tack
18″x18″ Window
24″x30″ Window
24″x30″ Egress Window
14×14 Camper Vent
Living Quarters
Air Conditioner
Air Conditioner with Heat Strip
Pre-Wire for Air Conditioner
Gooseneck Mattress
Half Boot Box
Boot Box Cooler
Door Mounted Tack Organizer
25 Gallon Water Tank with Hose
Storage Compartment GN Nose
Stereo with CD Player
Exterior Speakers w/comfort package

Structural Options
7’6″ Height
7’6″ Warmblood Package
7’0″ Warmblood Package
Single Rear Door
Ramp Behind Rear Gate or Double Doors
Axle Upgrades
Tire Upgrades
King Pin Coupler
Hydraulic Jack
Walk Through Door
Line and insulate walls

Trim Options
Stainless Steel Front
Additional Dome Lights
Porch Style Light
Exterior Flood Light
Aluminum Hay Rack and Ladder
Spare Tire
Stallion Graphics
Locking Battery Box
Stainless Side Panels

*Convenience Package includes: Spare tire, water tank, door-mounted organizer, sport bag, flood light each side and rear.
