Adventure MX

Horse Trailer

Available in Gooseneck and Bumper Pull

MSRP
Starting At

Bumper Pull

$*

Gooseneck

$*

*Beginning price may not include any or all accessories or options. Your geographic position, tax, title, license, transport, preparation and other fees may not be included, dealer prices may vary. Contact a local authorized Trails West Trailers dealer for details and availability. Model(s) shown may include additional options.

The Adventure MX is our best seller. It is the best-priced steel-framed aluminum skinned trailer in the industry, having the perfect combination of style, user-friendly features, and value. This trailer has our newly designed aerodynamic front, head side drop down feed windows, tail side sliding windows and rubber wall mats all the way around the horse compartment making it the best-equipped trailer in its class.



Pictures may show optional features. Specifications subject to change without notice.

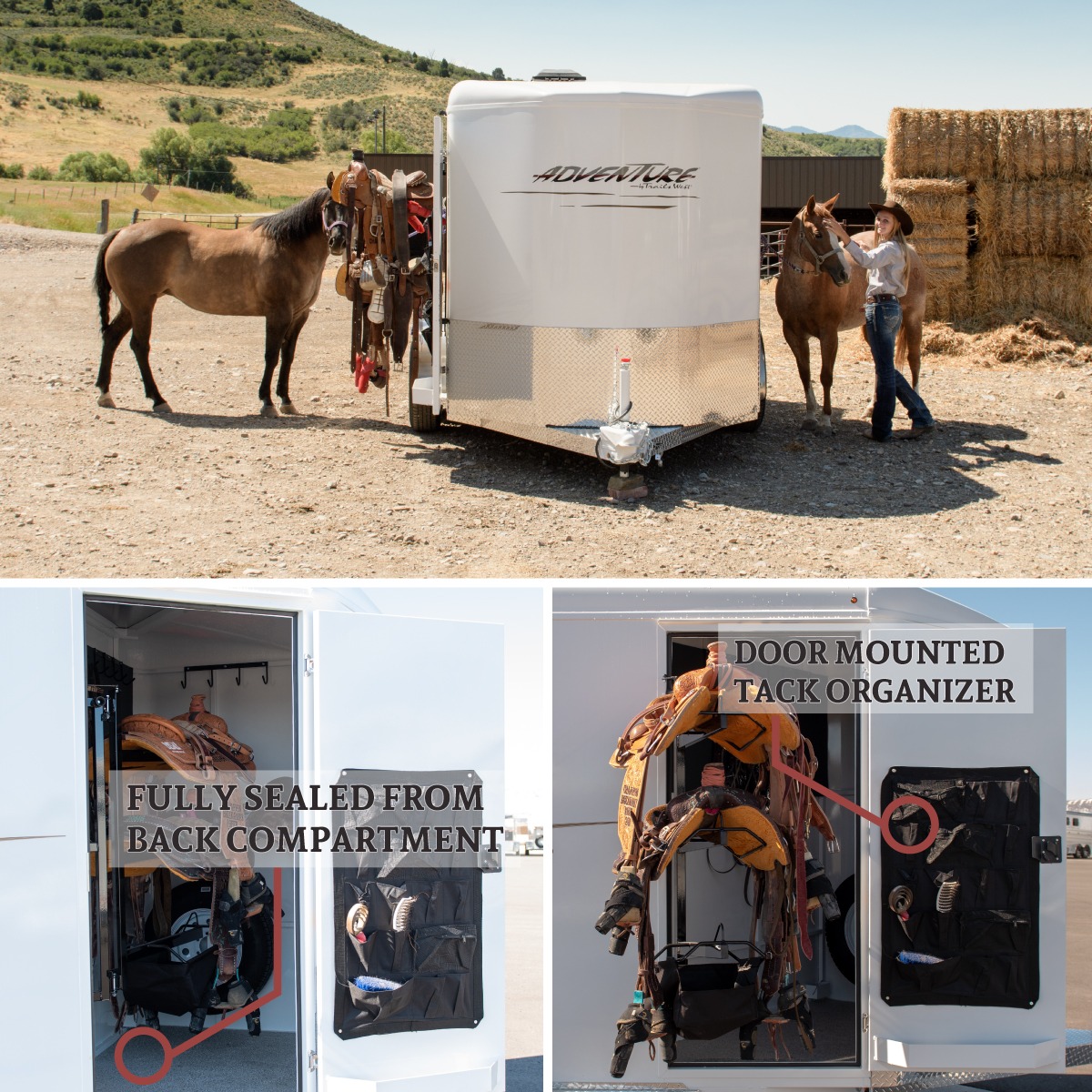

The Industry’s Best Functioning Tack Rooms

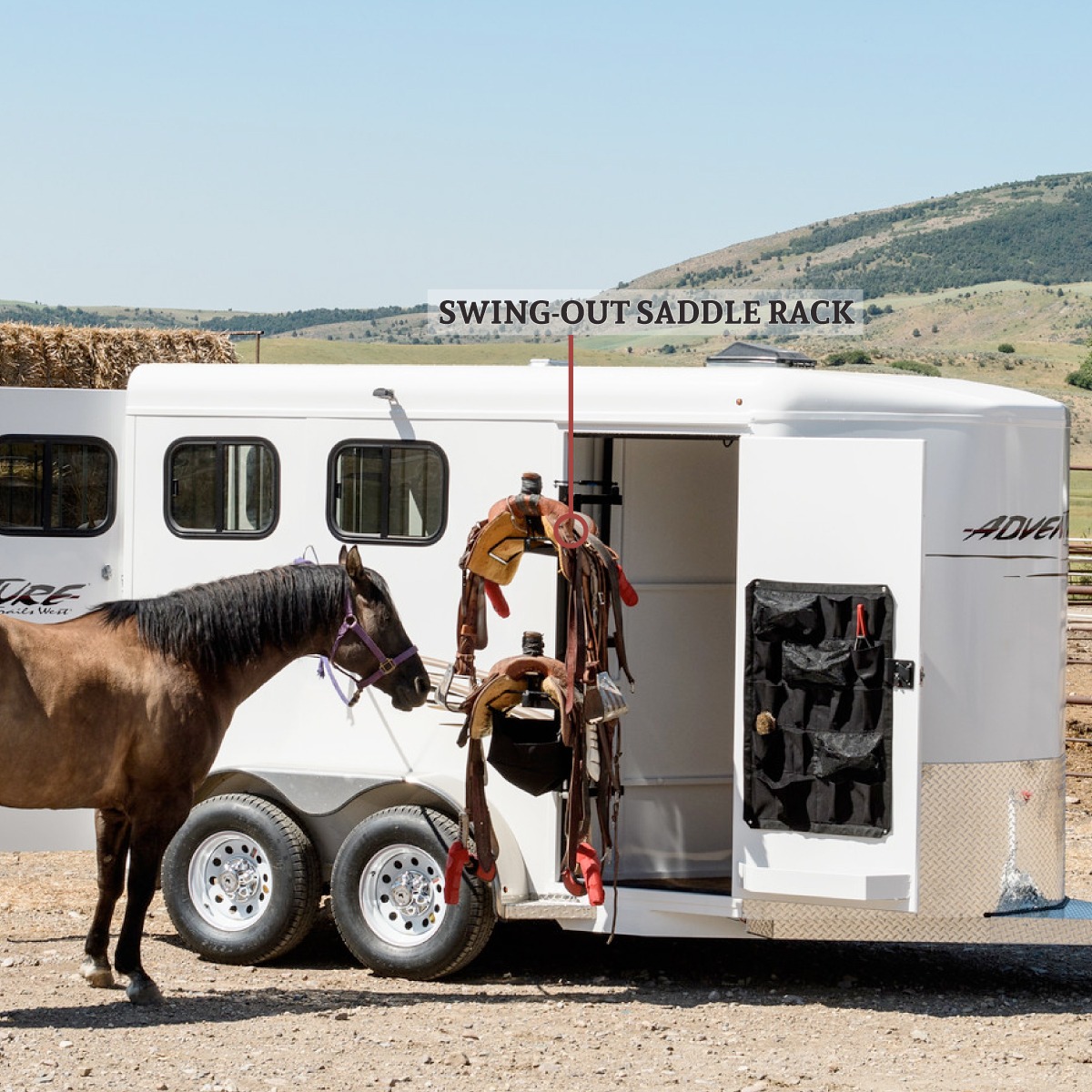

Featuring swing-out blanket and saddle racks.

Adventure MX - Tack Room - Horse Trailer

No Matter What You’re Hauling

We Have the Right Size for You

Gooseneck

2 HORSE GOOSENECK

3 HORSE GOOSENECK

4 HORSE GOOSENECK

Bumper Pull

2 HORSE BUMPER PULL

3 HORSE BUMPER PULL

4 HORSE BUMPER PULL

Sizing It Up

Goosenecks

SIZE
2 Horse GN
3 Horse GN
4 Horse GN

FLOOR LENGTH
12’6″
15’10″
19’2″

WEIGHT*
3900 lbs
4420 lbs.
4940 lbs.

*Weights are approximate.

AXLES
3500 lbs
5200 lbs.
5200 lbs.

TIRE SIZE
15″ 8 Ply Load Range D
16″ 10 Ply Load Range E
16″ 10 Ply Load Range E

Bumper Pull

SIZE
2 Horse BP
3 Horse BP
4 Horse BP

FLOOR LENGTH
13’6″
16’10”
20’2″

WEIGHT*
2920 lbs.
3660 lbs.
4180 lbs.

*Weights are approximate.

AXLES
3500 lbs.
5200 lbs.
5200 lbs.

TIRE SIZE
15″ 8 Ply Load Range D
15″ 8 Ply Load Range D
16″ 10 Ply Load Range E

How It’s Built

Structural

  • 6’ 9” Wide, 7’0” Tall
  • Triple Wall Construction
  • Aluminum Exterior Sheets
  • 1 Piece Aluminum Roof
  • Torsion Axles
  • 4 Wheel Electric Brakes
  • Easy Lube Hubs
  • Radial Tires
  • Aluminum Fenders
  • Tread Brite Steps & Front Gravel Guard
  • Drop Down Feed Windows Head Side
  • Sliding Windows Tail Side
  • Rubber Bumper
  • Molded Seven-Way RV Plug
  • One Year Limited Paint/Trim Warranty
  • Five Year Limited Structure/Floor Warranty

Tack Room

  • 32″ Tack Door
  • Dome Light
  • Corner Brush Tray – Water Tank Ready
  • Tack Door Brush Tray
  • Two, Three or Four Place Saddle Racks
  • 16 Bridle Hooks
  • 4 Place Blanket Rack
  • Clothes Rod
  • Camper Vent
  • Carpeted Floor
  • Carpeted GN Deck and Bulkhead
  • Carpeted Angle Wall
  • Screened Windows Each Side of Gooseneck

Horse Compartment

  • Drop Down Feed Windows (head side)
  • Sliding Windows (tail side)
  • Dome Light
  • Rubber Wall Mats
  • Rubber Floor Mats
  • Slam Latch Dividers
  • Tie Ring Each Stall
  • Double Rear Doors
  • Roof Vent Each Stall

Paint Finish

  • Acidic Phosphatizing Wash
  • Polymer Coating
  • Epoxy Primer
  • Polyurethane Paint
  • Infrared Cured

Available Options

  • Convenience Package*
  • Swing-out Saddle Rack
  • Windows in Rear Doors
  • 25 Gallon Water Tank
  • Door Mounted Tack Organizer
  • Sport Bag
  • Flood Light
  • Spare Tire
  • Exterior Aluminum Ramp
  • Chrome Center Caps
  • Feed Bags
  • Divider Pads

* Convenience Package includes: swing-out saddle rack, spare tire, water tank, door mounted tack organizer, sport bag, load light by each side and rear gate
