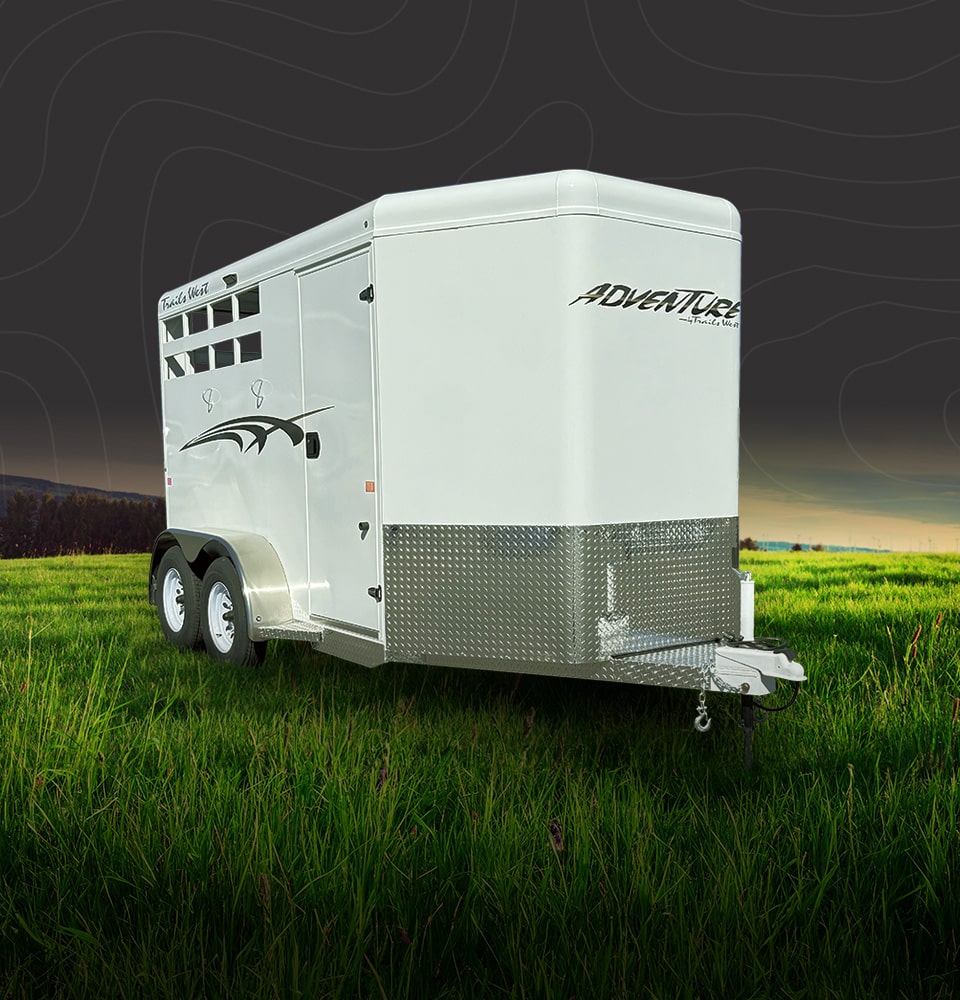

ADVENTURE
Available in Gooseneck and Bumper Pull
The Adventure is our most economical horse trailer and is loaded with standard features, making it one of the best values in the industry. This trailer features double air gaps on head and tail side and measures 6’9″ wide and 7’0″ tall. It comes standard with horse dividers, rubber floor mats and 48″ tall rubber wall mats surrounding the entire horse compartment.
Ample Room and Peace of Mind
Pictures may show optional features. Specifications subject to change without notice
Sizing It Up
No matter what you're hauling, we have the right size for you.
Gooseneck Specifications

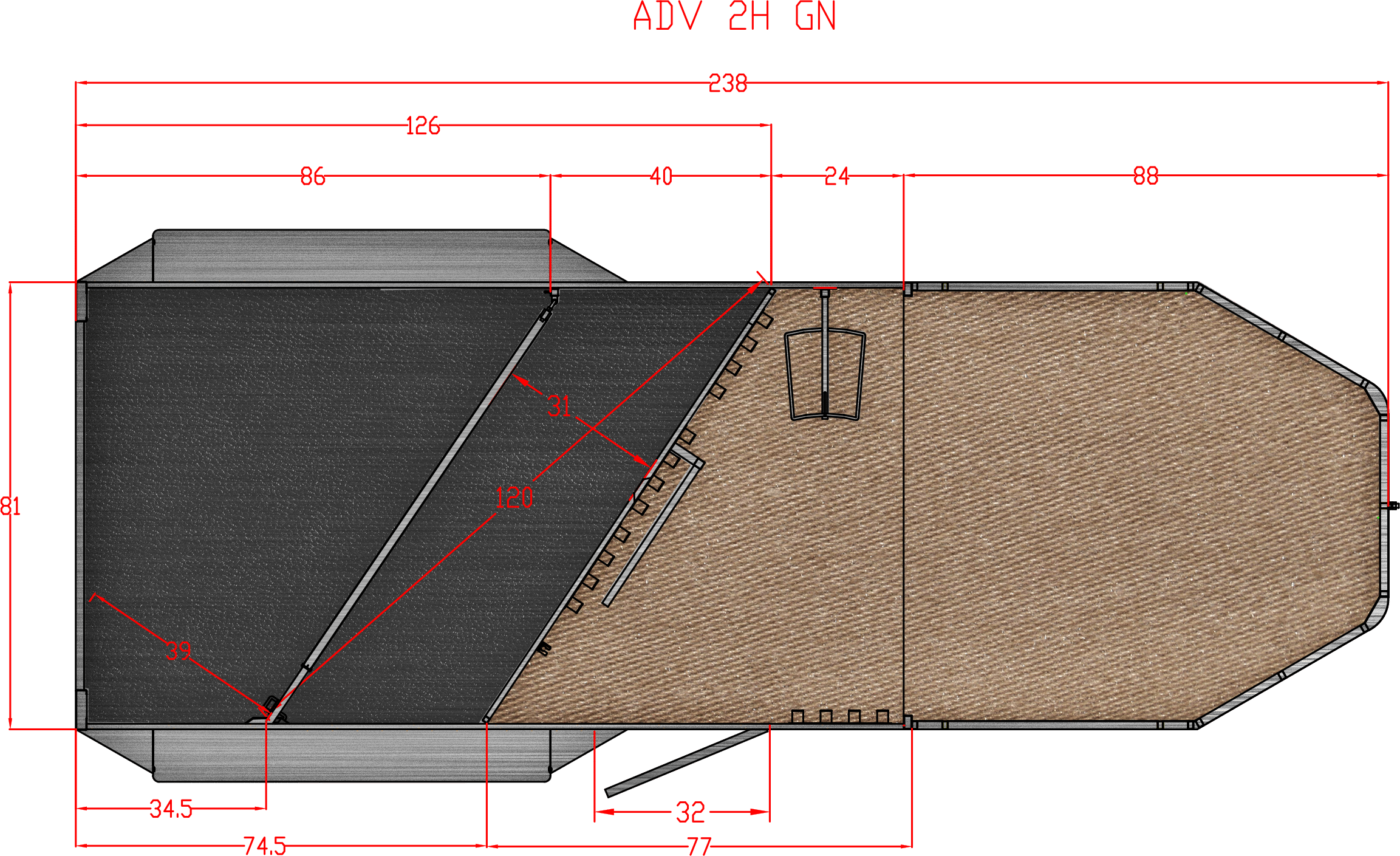

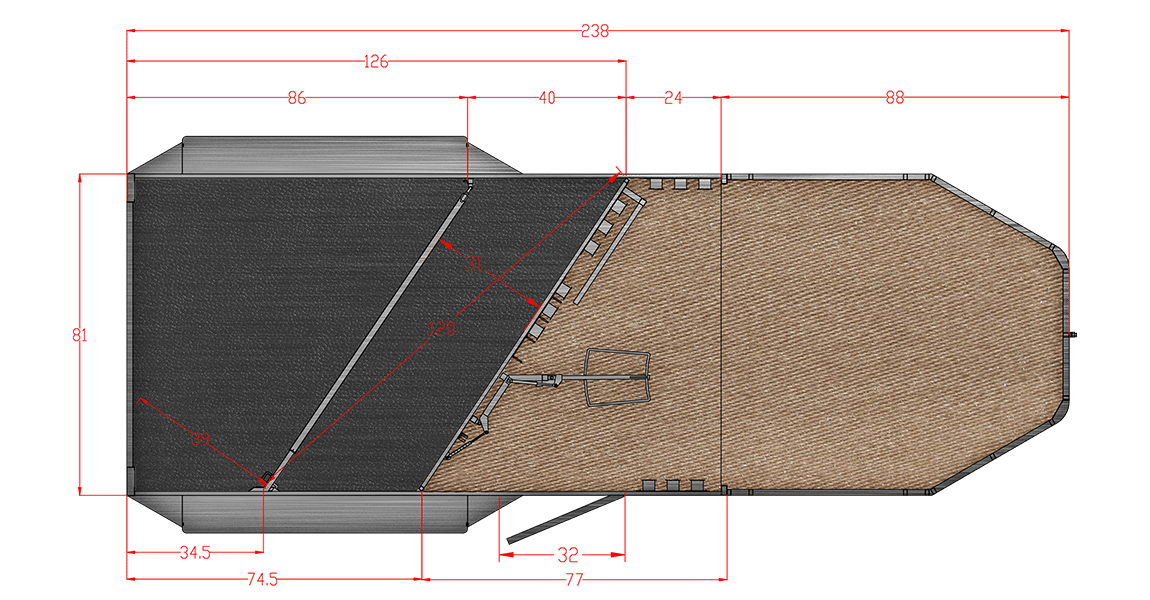

2 Horse GN
Floor: 12’6"
Axles: 3500 lbs
Tires: 15″ 8 Ply Load Range D
Weight: 3980 lbs

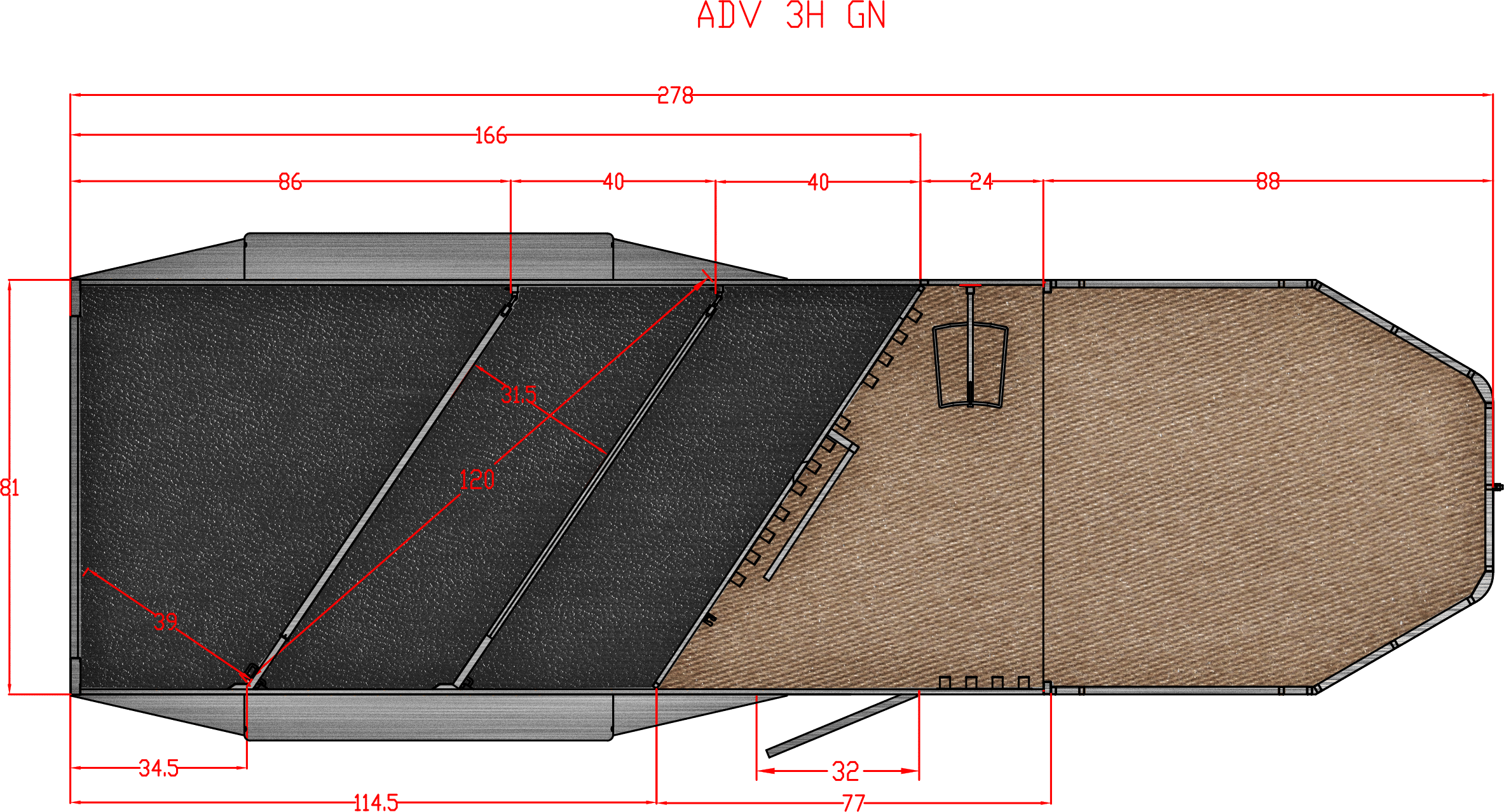

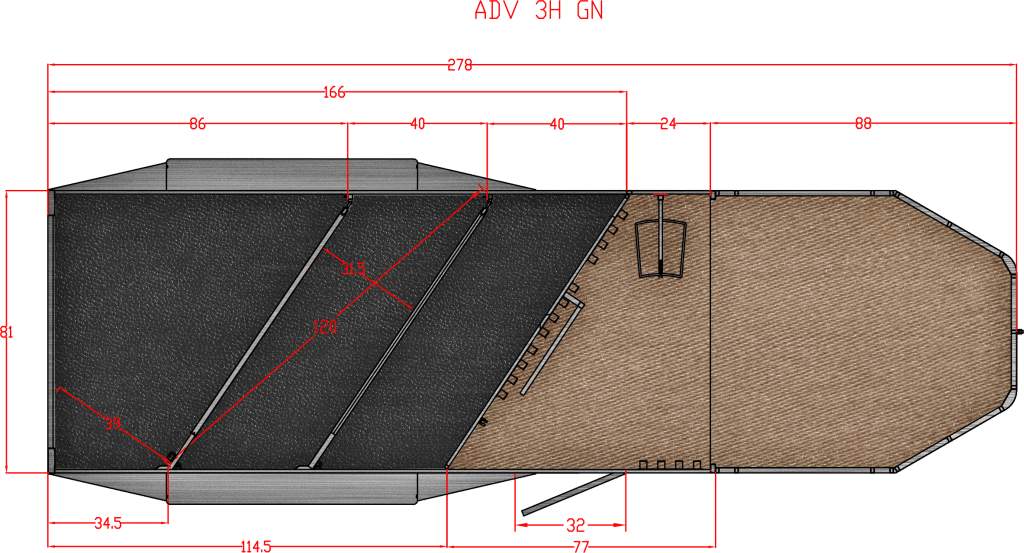

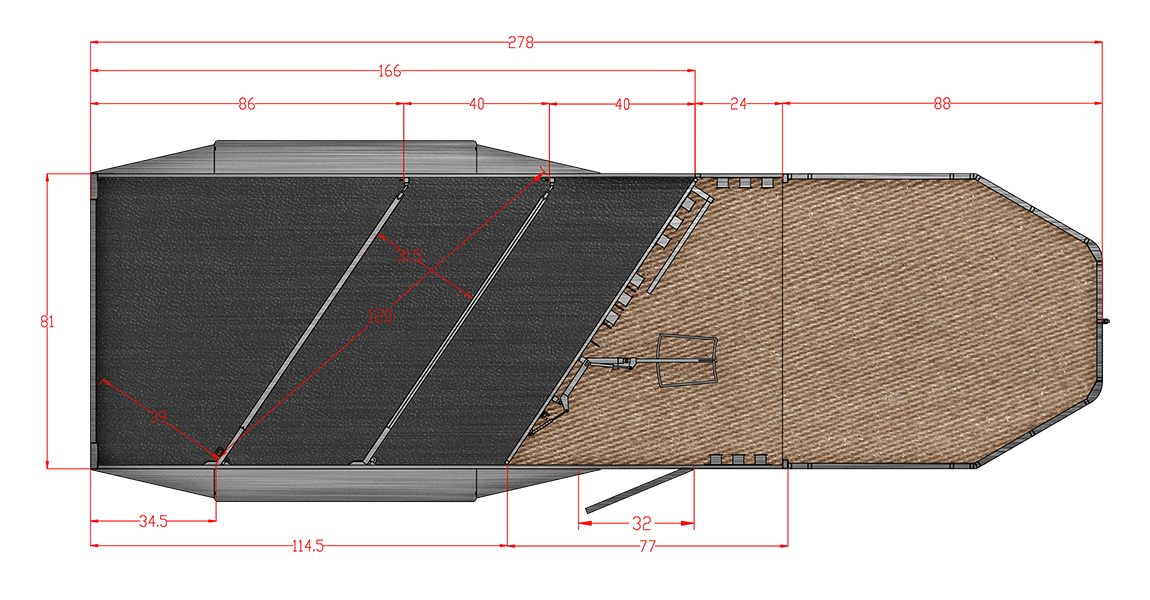

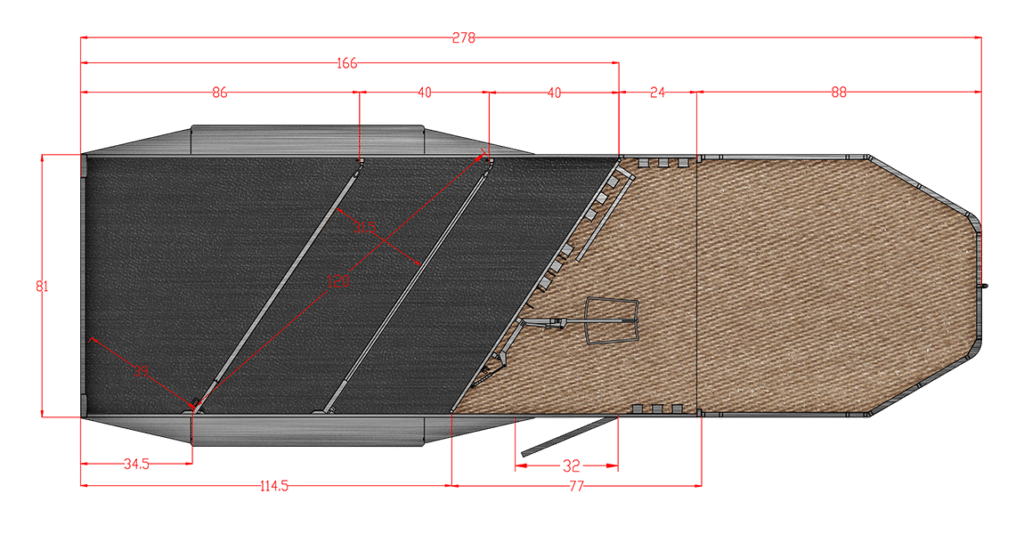

3 Horse GN
Floor: 15’10″
Axles: 5200 lbs
Tires: 16″ 10 Ply Load Range E
Weight: 4560 lbs

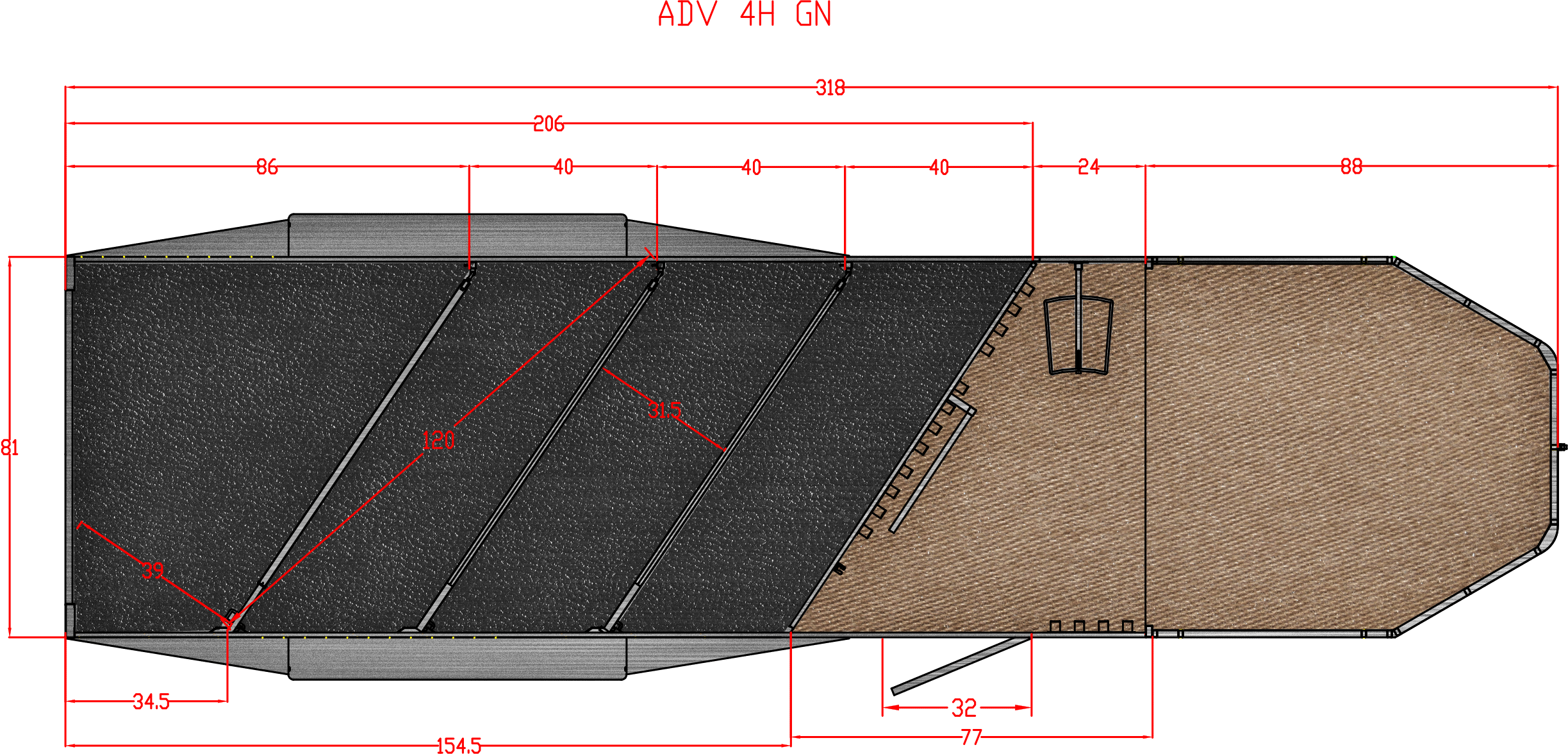

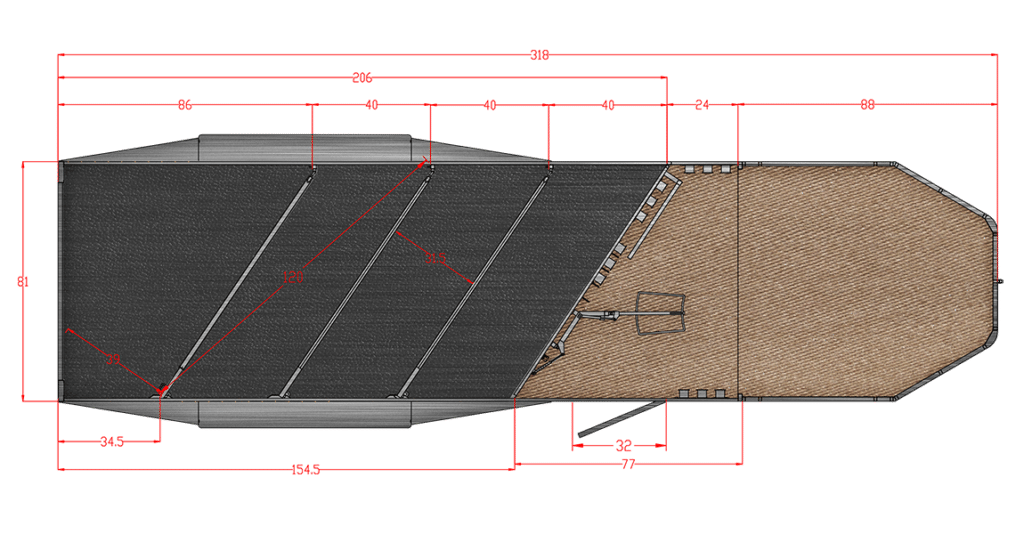

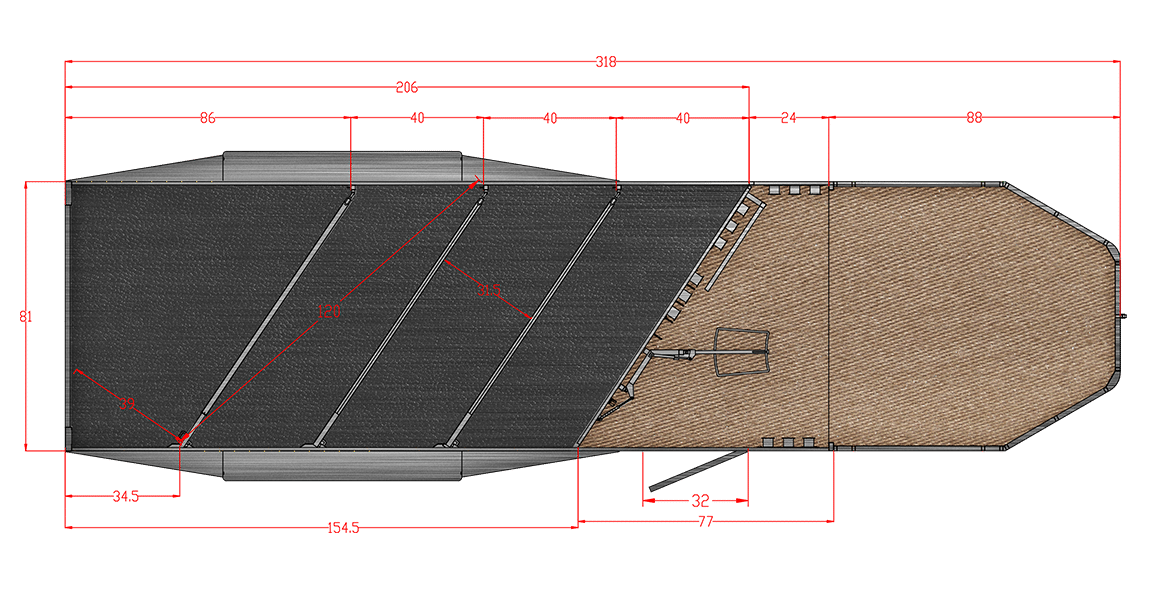

4 Horse GN
Floor: 19’2″
Axles: 5200 lbs
Tires: 16″ 10 Ply Load Range E
Weight: 5160 lbs
Bumper Pull Specifications

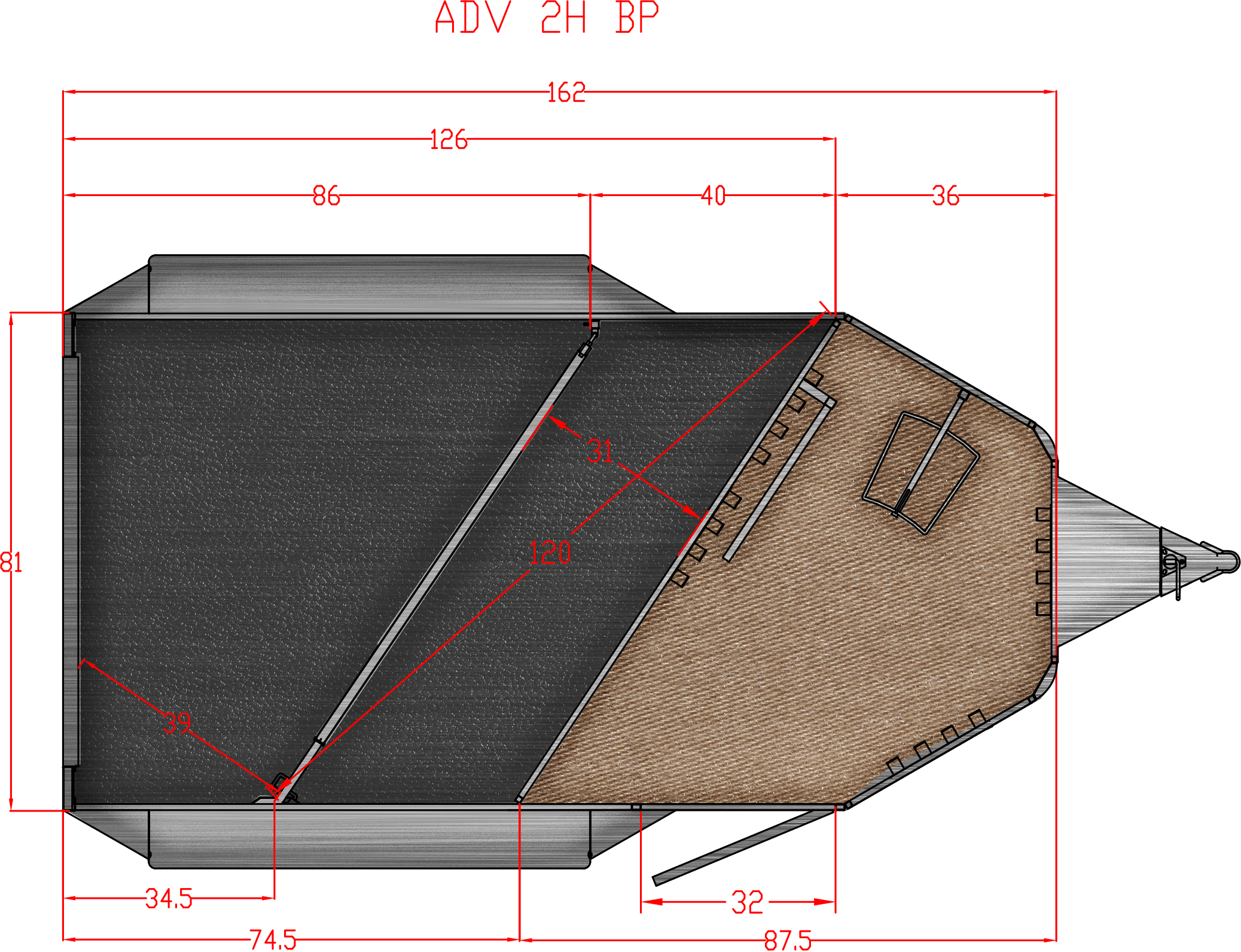

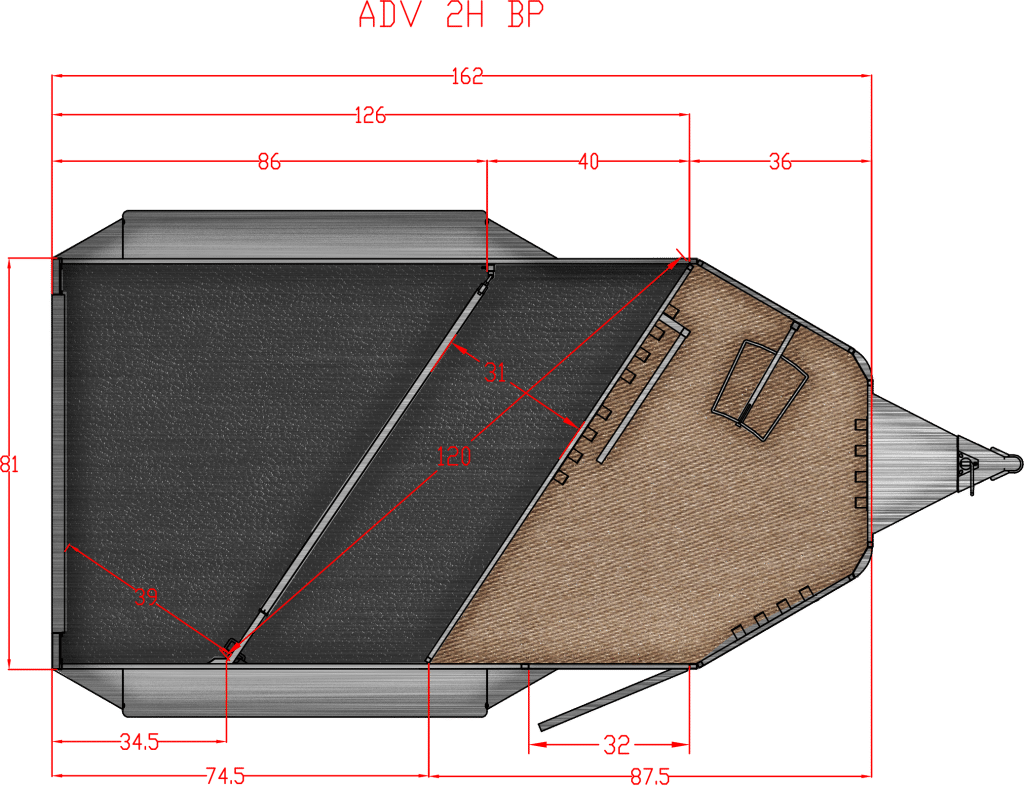

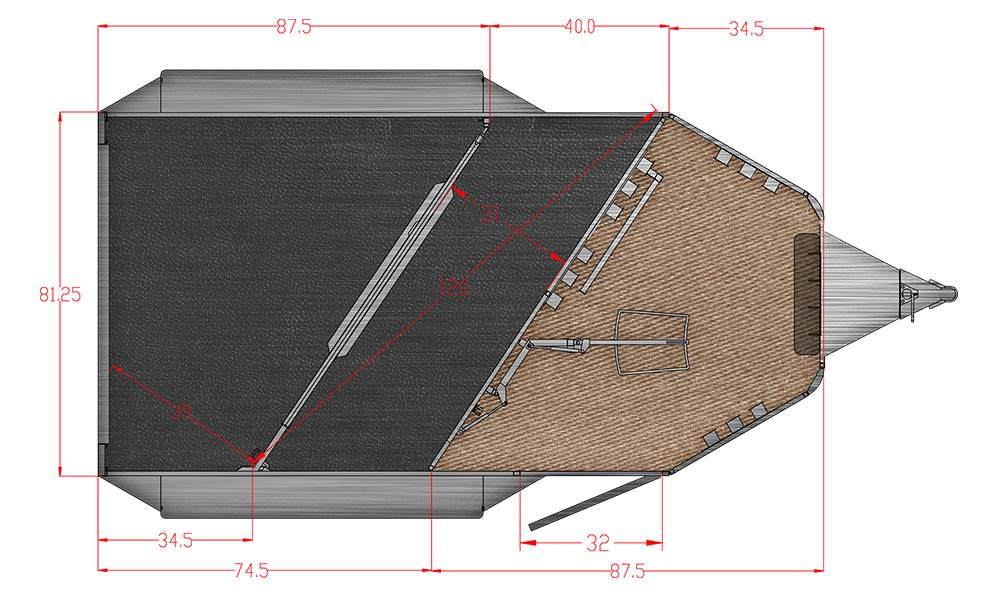

2 Horse BP
Floor: 13’6"
Axles: 3500 lbs
Tires: 15″ 8 Ply Load Range D
Weight: 3080 lbs

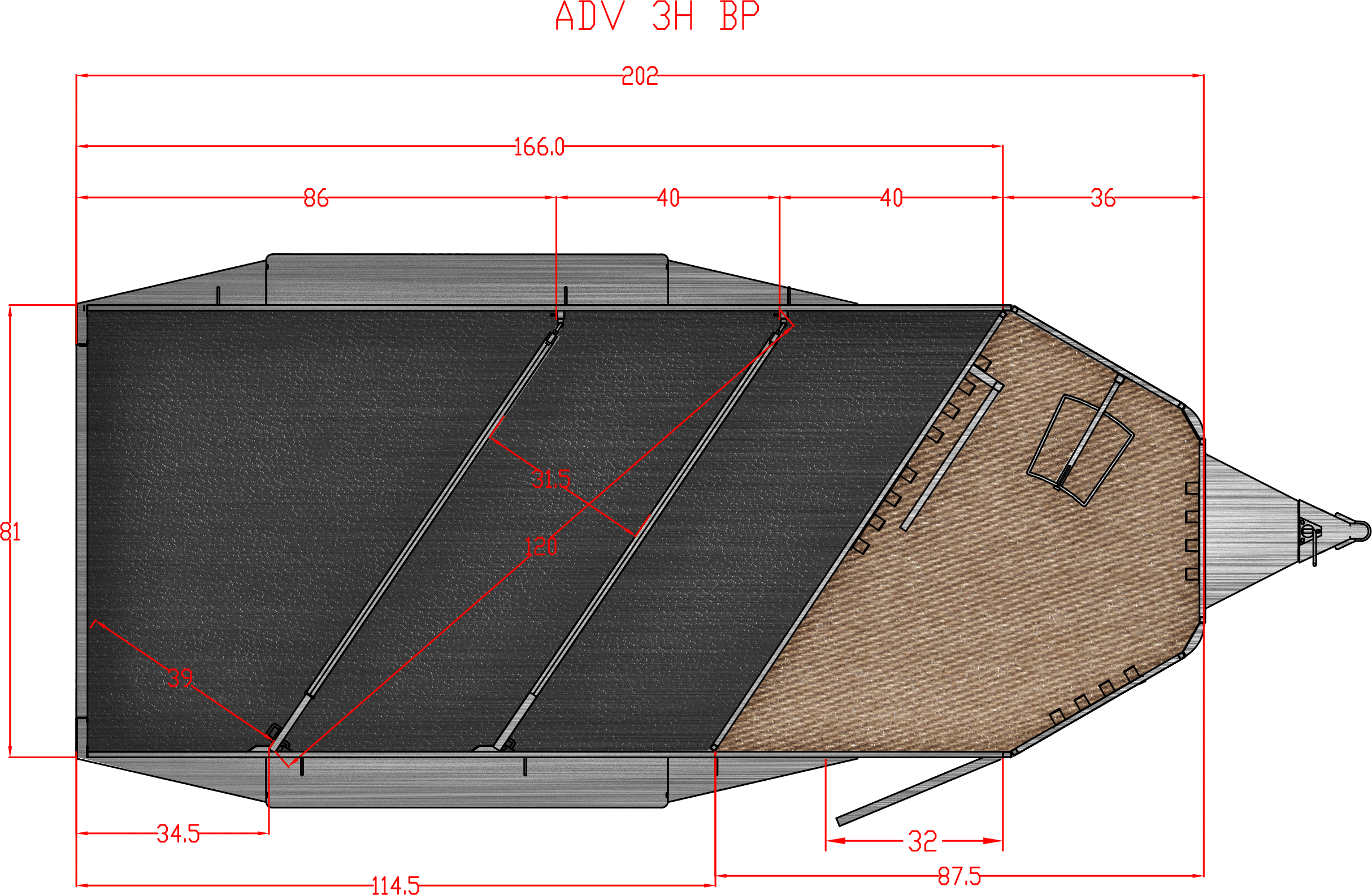

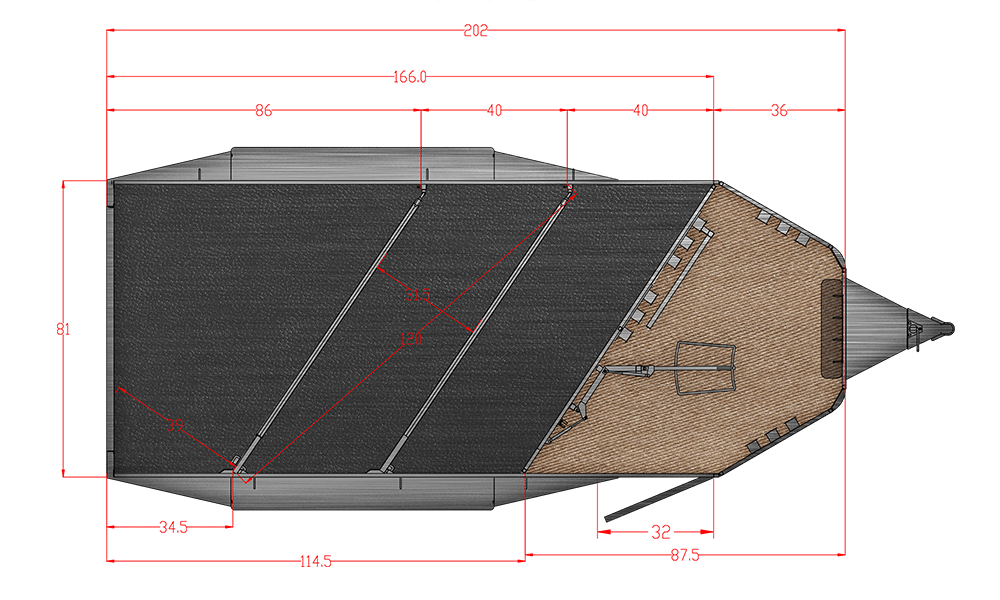

3 Horse BP
Floor: 16’10″
Axles: 5200 lbs
Tires: 16″ 10 Ply Load Range E
Weight: 3820 lbs

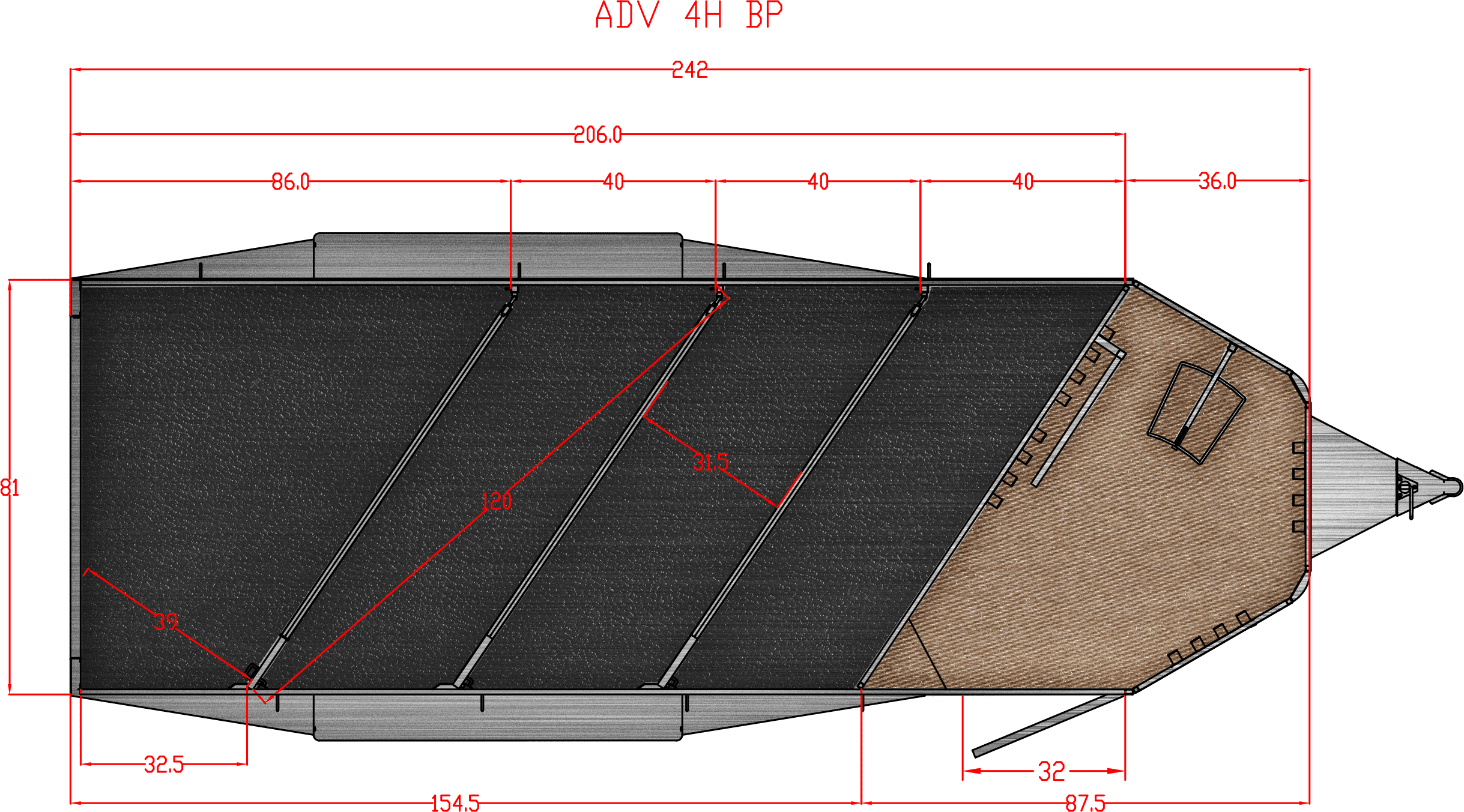

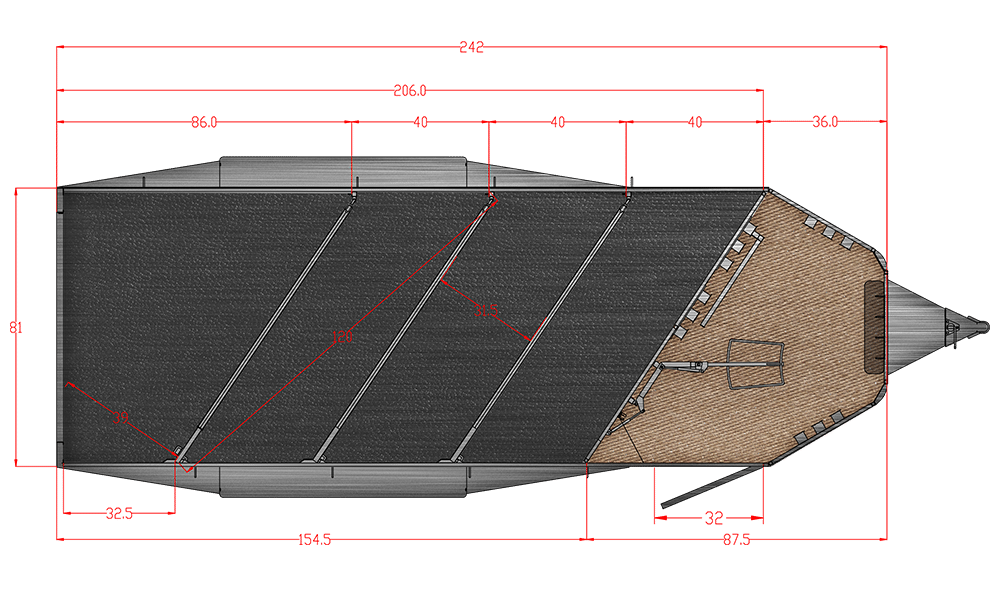

4 Horse BP
Floor: 20’2″
Axles: 5200 lbs
Tires: 16″ 10 Ply Load Range E
Weight: 4420 lbs
How It's Built
Ample Room & Peace of Mind
Structural Features
- 6’ 9” Wide, 7’0” Tall
- Triple Wall Construction
- Electro-galvanized Sheet Steel
- 1 Piece Aluminum Roof
- Torsion Axles
- 4 Wheel Electric Brakes
- Easy Lube Hubs
- Radial Tires
- Aluminum Fenders
- Tread Brite Steps & Front Gravel Guard
- Rubber Bumper
- Epoxy Primer
- Infrared Cured Polyurethane Paint
- Molded Seven-Way RV Plug
Tack Room Features
- Steel Angle Wall
- 32" Tack Door
- Dome Light
- Corner Brush Tray - Water Tank Ready
- Tack Door Brush Tray
- Two, Three or Four Place Saddle Racks
- 16 Bridle Hooks
- 4 Place Blanket Rack
- Clothes Rod
- Camper Vent
- Carpeted Floor
- Carpeted GN Deck and Bulkhead
- Carpeted Angle Wall
Horse Compartment Features
- Double Air Gaps, Head & Tail Slide
- Dome Light
- Rubber Wall Mats
- Rubber Floor Mats
- Jailbar/Flow Through Slam Latch Dividers
- Tie Ring Each Stall
- Single Rear Door
Warranty
- One Year Paint/Trim Warranty
- Five Year Limited Structure/Floor Warranty
Available Options
- Convenience Package*
- Swing-out Saddle Rack
- Plexiglass Head, Tail or Rear Gate
- 25 Gallon Water Tank
- Door Mounted Tack Organizer
- Sport Bag
- Flood Light
- Aluminum Wheels
- Spare Tire
- Roof Vent in Horse Area
- Chrome Center Caps
- Exterior Aluminum Ramp
- Divider Pads
- Feed Bags
* Convenience Package includes: swing-out saddle rack, spare tire, water tank, door mounted tack organizer, sport bag, load light each side and rear gate
Paint & Trim
- Acidic Phosphatizing Wash
- Polymer Coating
- Electro-galvanized Sheet Steel
- Polyurethane Paint
- Infrared Cured
