Santa Fe

Available in Gooseneck and Bumper Pull
Designed with the goal of keeping weight and cost down, the Santa Fe is available in open stock, stock combo and slant-load configurations. This versatile design can be customized to fit all your needs, making it the best multipurpose trailer available.
Best Multipurpose Trailer Available

Pictures may show optional features. Specifications subject to change without notice
Sizing It Up

No matter what you're hauling, we have the right size for you.
Gooseneck Specifications
Open Stock Goosenecks
Santa Fe 14' Gooseneck
Axles: 6000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 17' Gooseneck
Axles: 6000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 21' Gooseneck
Axles: 7000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 24' Gooseneck
Axles: 7000 lbs.
Tires: ST235/85R16 LRG
Santa Fe 28' Gooseneck
Axles: 8000 lbs.
Tires: ST215/75R17.5 LRH

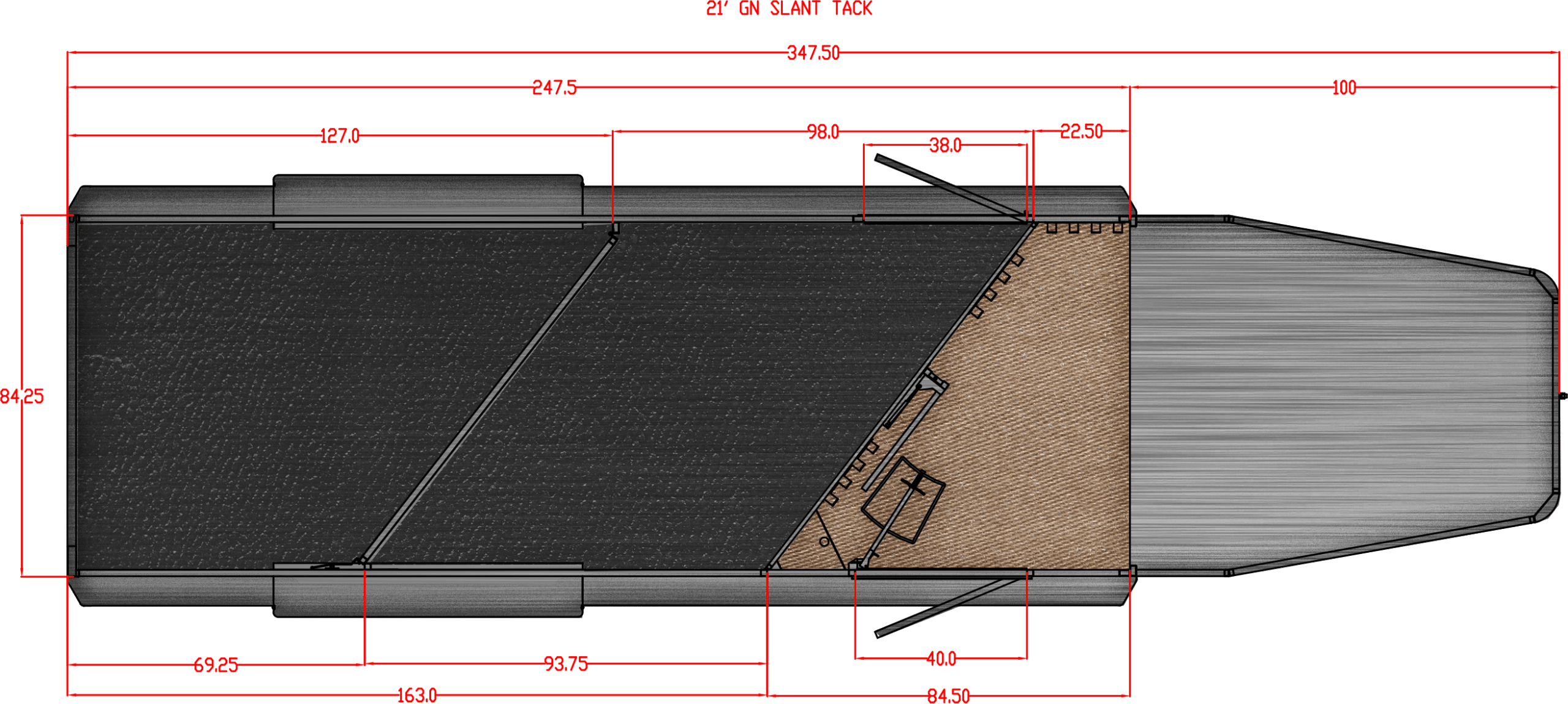

Stock Combo with Sealed 2x7' Slant Tack Goosenecks
Santa Fe 17' Gooseneck
Stock: 12 x 6.5'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE

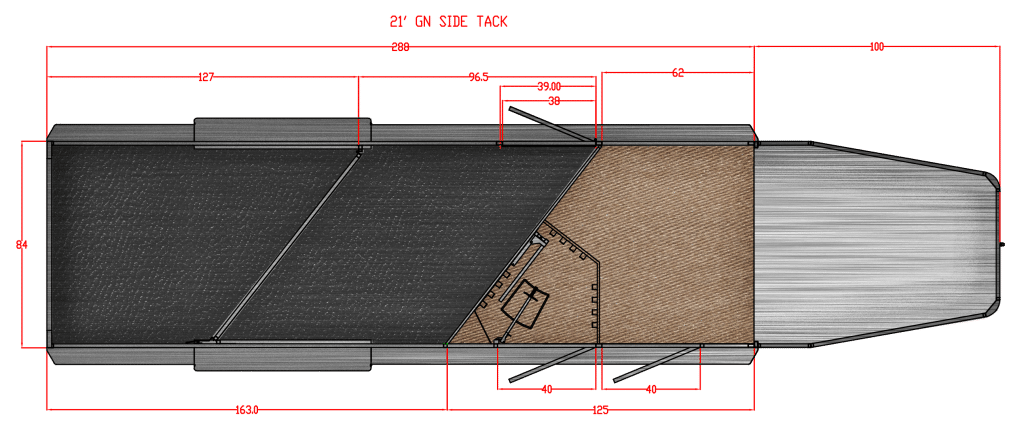

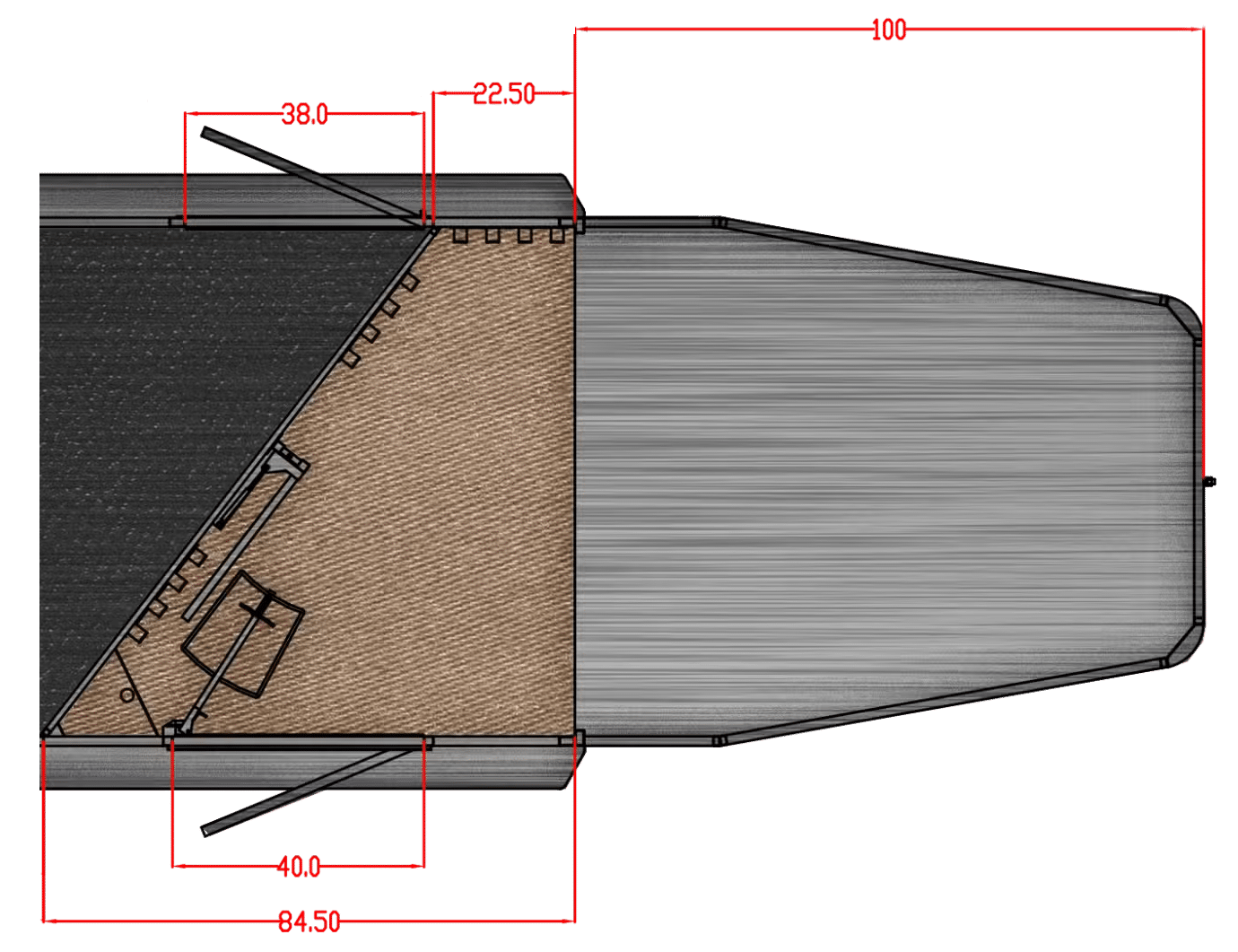

Santa Fe 21' Gooseneck
Stock: 15.5' x 10'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 24' Gooseneck
Stock: 18.5' x 13'
Axles: 7000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 28' Gooseneck
Stock: 22' x 16.5'
Axles: 7000 lbs.
Tires: ST235/85R16 LRG
Santa Fe 31' Gooseneck
Stock: 25.5' x 20'
Axles: 8000 lbs.
Tires: ST215/75R17.5 LRH

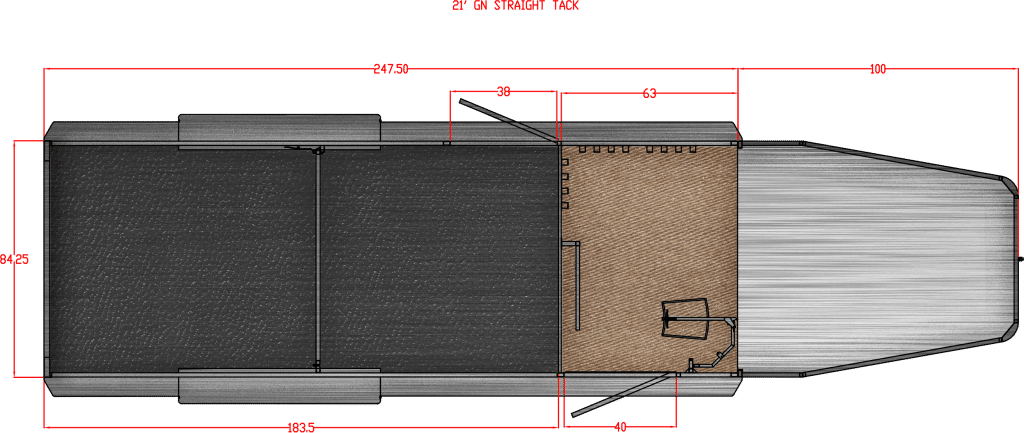

Stock Combo with Sealed 5' Straight Tack Goosenecks
Santa Fe 17' Gooseneck
Stock: 12'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE

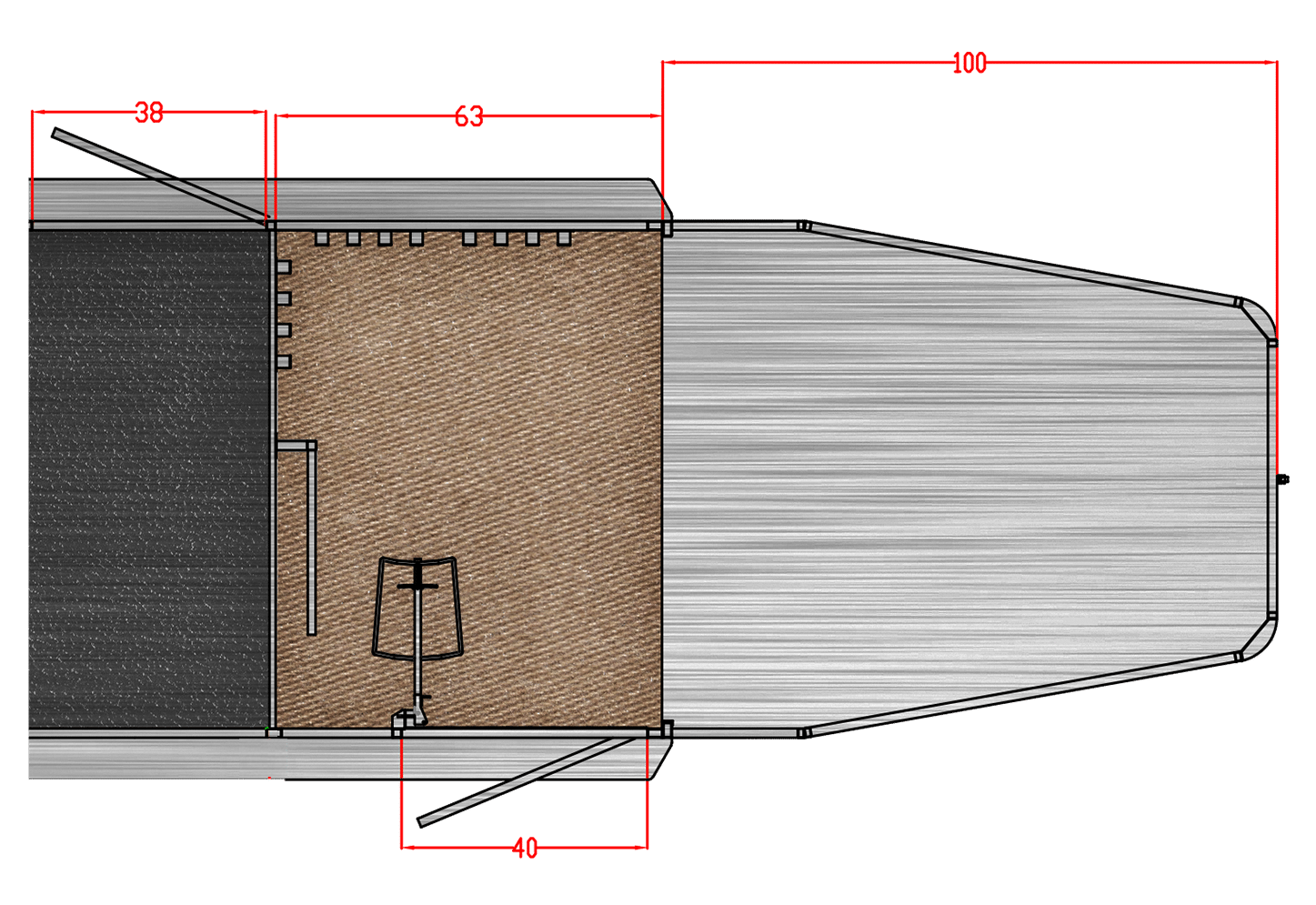

Santa Fe 21' Gooseneck
Stock: 15'5"
Axles: 6000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 24' Gooseneck
Stock: 18'9"
Axles: 7000 lbs.
Tires: ST235/85R16 LRG
Santa Fe 28' Gooseneck
Stock: 22'2"
Axles: 7000 lbs.
Tires: ST235/85R16 LRG
Santa Fe 31' Gooseneck
Stock: 25'6"
Axles: 8000 lbs.
Tires: ST215/75R17.5 LRH

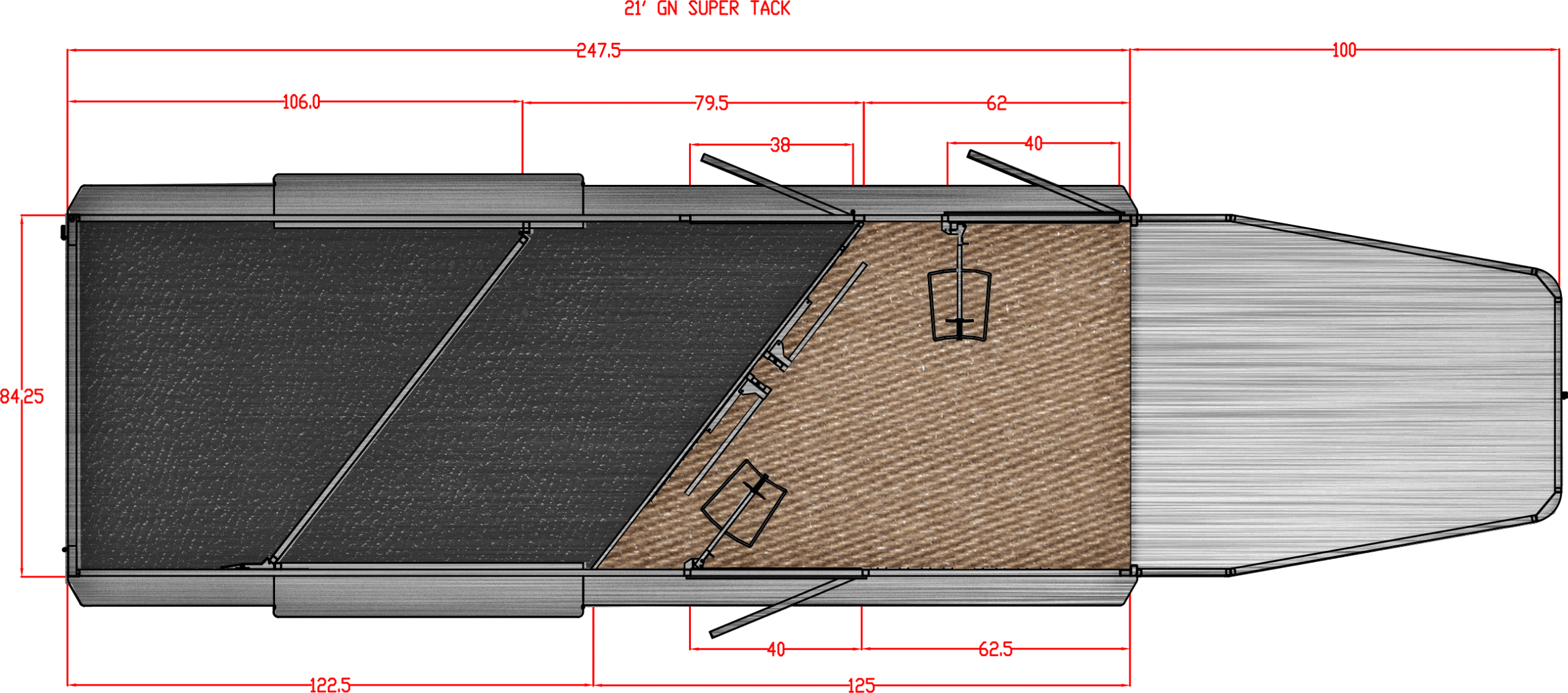

Stock Combo with Sealed 5x10' Super Tack Goosenecks
Santa Fe 17' Gooseneck
Stock: 12' x 6.5'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE

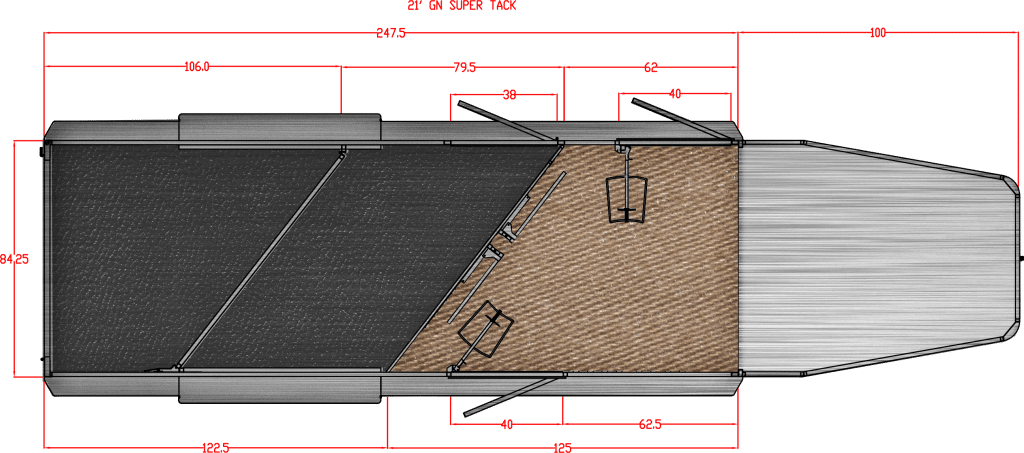

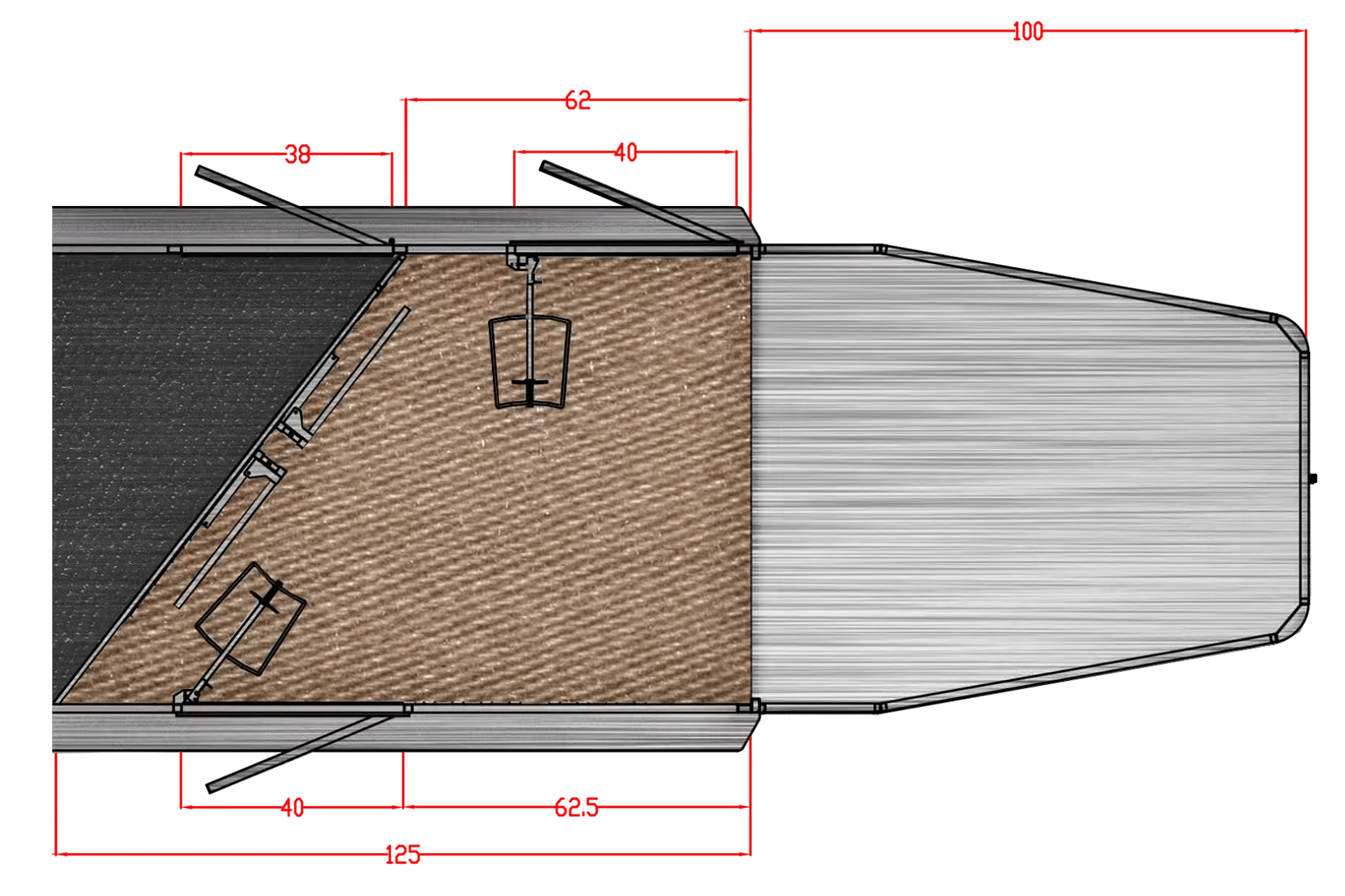

Santa Fe 21' Gooseneck
Stock: 15'5" x 10'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 24' Gooseneck
Stock: 18'9" x 13'
Axles: 7000 lbs.
Tires: ST235/85R16 LRG
Santa Fe 28' Gooseneck
Stock: 22'2" x 16.5'
Axles: 7000 lbs.
Tires: ST235/85R16 LRG
Santa Fe 31' Gooseneck
Stock: 25'6" x 20'
Axles: 8000 lbs.
Tires: ST215/75R17.5 LRH
Bumper Pull Specifications
Open Stock Bumper Pulls

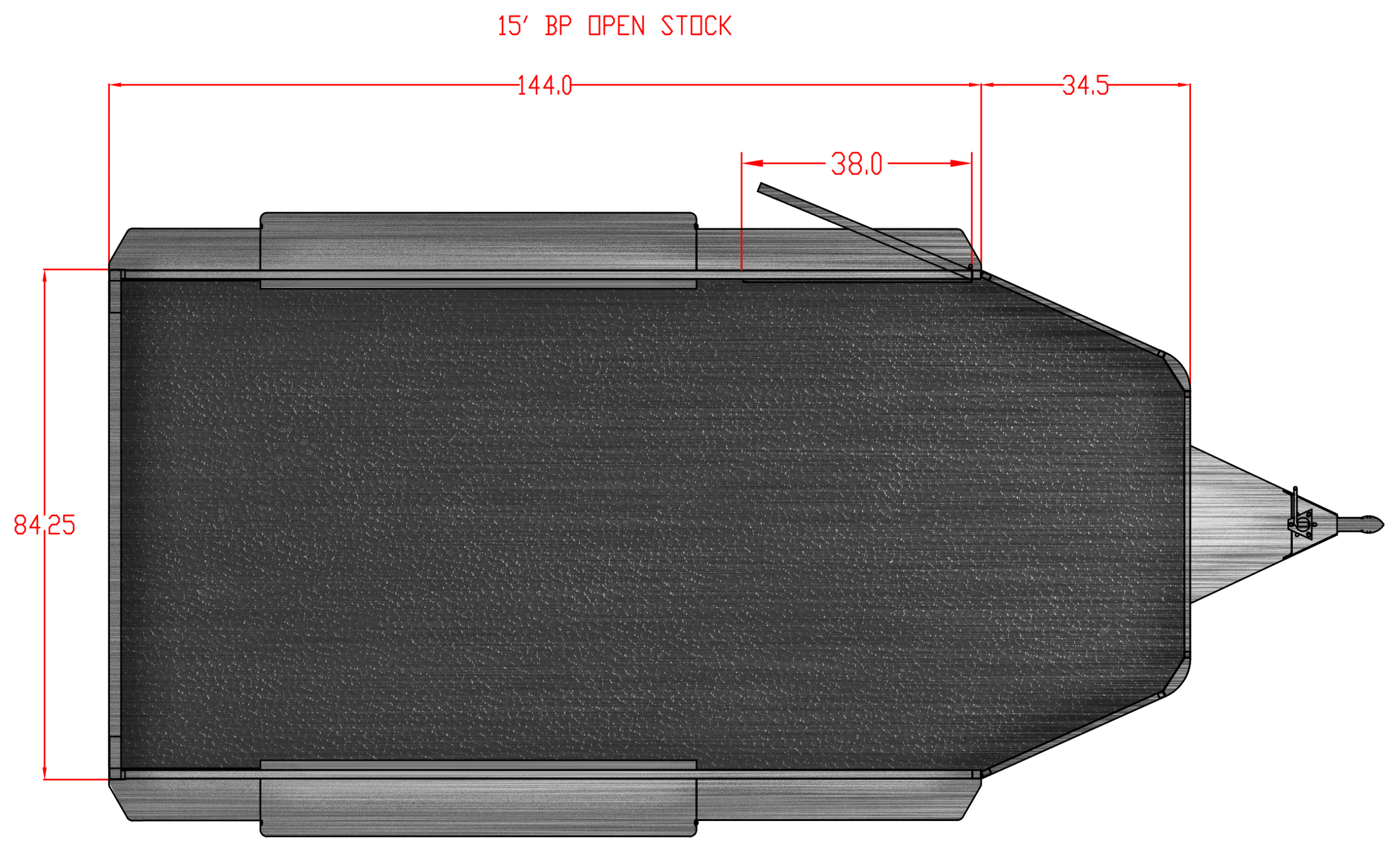

Santa Fe II 15'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE

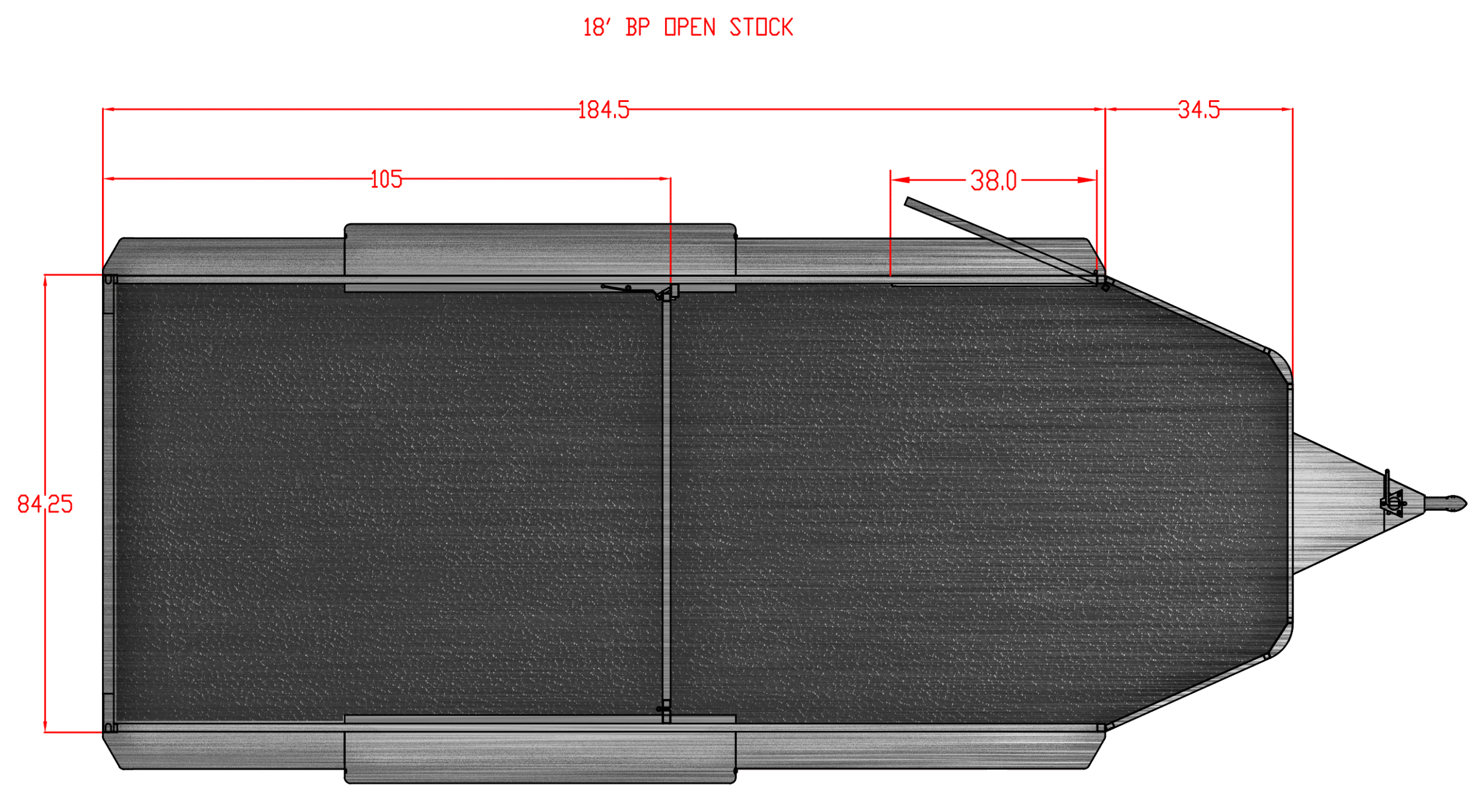

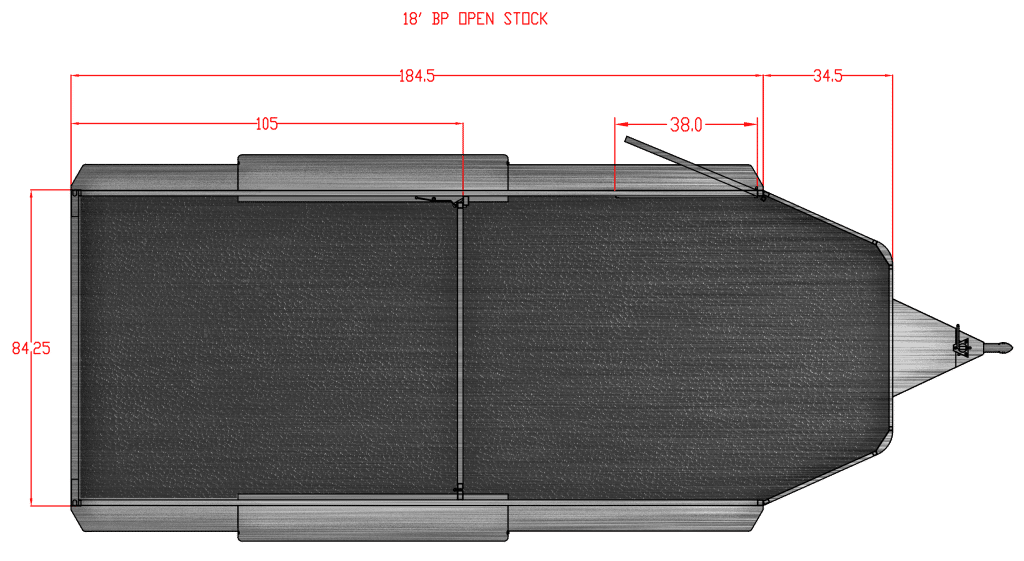

Santa Fe II 18'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE

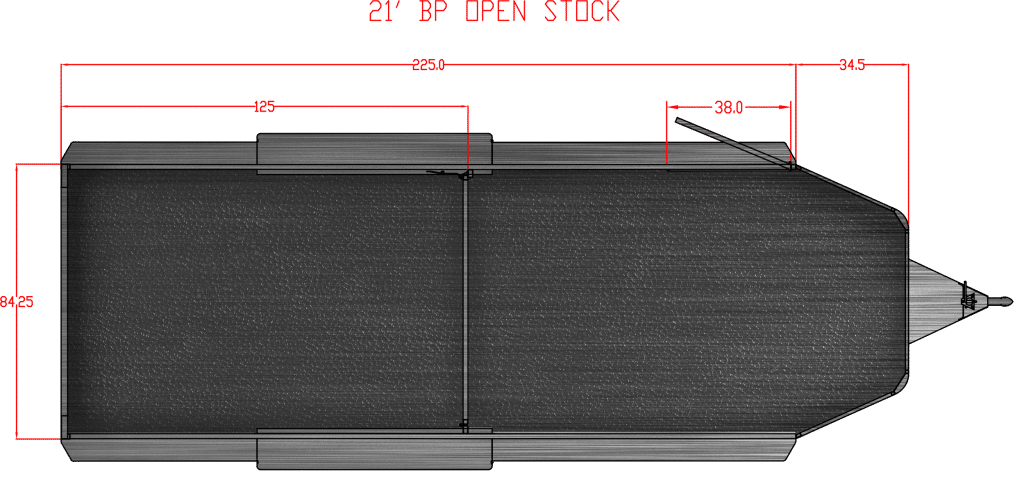

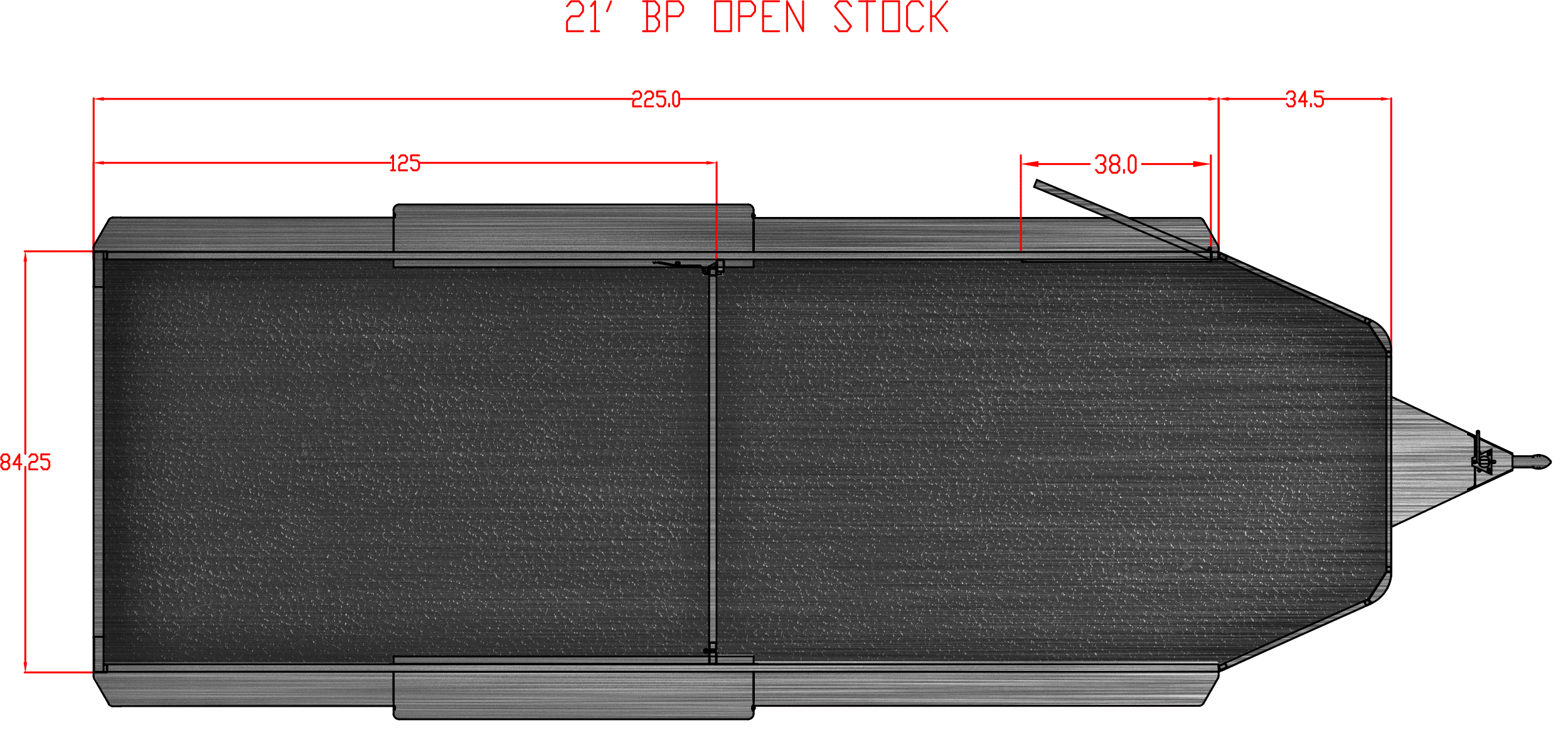

Santa Fe II 21'
Axles: 7000 lbs.
Tires: ST235/80R16 LRE

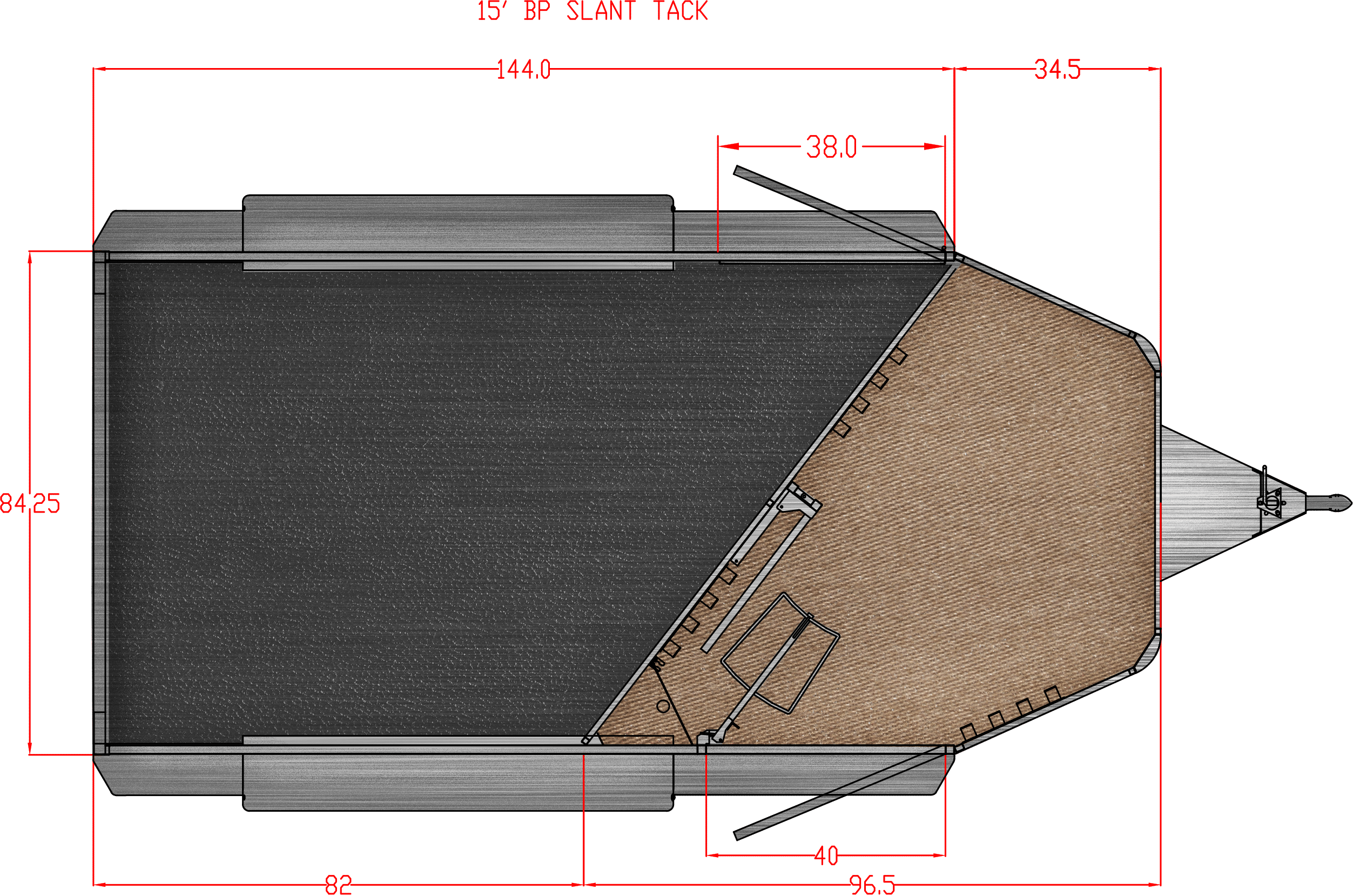

Stock Combo with Sealed Slant Tack Bumper Pulls
Santa Fe II 15'
Stock 12' x 6.5'
Axles: 6000 lbs.
Tires: ST225/75R15LRD
Santa Fe 18'
Stock 15.5' x 10'
Axles: 6000 lbs.
Tires: ST235/80R16 LRE
Santa Fe 21'
Stock: 18.5' x 13'
Axles: 7000 lbs.
Tires: ST235/80R16 LRE
How It's Built

Best Multipurpose Trailer Available
Structural Features
- 7'0" Wide
- 7'0" Tall
- Galvanized Steel Frame w/Aluminum Exterior Extrusions
- Solid Rear Gate w/matching air gaps (Straight Tack Combo Floorplans)
- Solid Cargo Doors (Slant & Super Tack Combo Floorplans)
- Combination Rear Slider Gate (Open Stock Floorplans)
- Center Gate (Not Available On 14")
- Side Gate
- Gooseneck Calf Gate (Open Stock Floorplans)
- 2" x 10" Douglas Fir Floor
- One Piece Aluminum Roof
- Torsion Axles
Tack Room Options
- Convenience Package BP^
- Comfort Package GN*
- Overnighter Package GN**
- Straight and Slant Wall Tack Rooms
- Side Tack
- Mid Tack
- Angled Mid Tack
- 14" x 14" Camper Vent
- Boot Box
- Water Tank
- Additional Tack Hardware
^Includes: 1 ft. in length to tack room, lined and insulated walls and ceiling, boot box and vanity cabinet
*Includes: Paneled and Insulated dressing room, boot box, vanity cabinet, locking battery box, hat racks, coat hooks, clothes rod, mirror, cup holder.
**Includes: Comfort package, 110 V outlet, converter, egress window, furnace, pre-wired for air conditioner, dual boot box, mattress, LP tanks.
Horse/Stock Compartment Options
- Lonestar Package^^
- Sort Gate in Cross Gate
- Aluminum Horse Divider
- Stud Panel
- Pop-Up Roof Vents
- Double Rear Cargo Doors
- Rubber Wall Liner
- Feed Bags
- Stall Fans
^^ Includes: Horse dividers ILO stock gate, drop-down feed doors (head side), roof vent in each stall.
Warranty
- Three Year Limited Paint/Trim Warranty
- Five Year Limited Structure Warranty
- Eight Year Limited Floor Warranty
Structural Options
- Additional Height
- Additional Length to Tack/Dressing Room
- Axle and Tire Upgrades
- Warmblood Packages
- Rear Ramp
- 8' Wide (Gooseneck Models Only)
Paint & Trim
- Epoxy Primer
- Polyurethane White Paint (Optional in Charcoal, Black or Silver)
- Aluminum Fenders & Side Steps
- Tread Brite Front
- Radial Tires
- Rubber Bumper
- Rubber Floor Mats
- Aluminum Wheels
Accessory Options
- 7ft & 8ft Wide Living Quarter Floor Plans Available
- Tack Wall pass Through Door
- GN Access Door (Open Stock Models Only)
- Dressing Room Window
- Line and Insulate Roof
- Extra Tie Rings
- Hay Rack
- Hydraulic Jack
- Exterior Load Lights
- Plexiglas Enclosure
- Stainless Steel Front
Electrical
- Four Wheel Electric Brakes
- Break Away Switch w/Battery
- Molded Seven-Way RV Plug
- Double Tail Lights
- Backup Lights
- Hotwire w/Battery Box
- LED Clearance, Tail and Backup Lights
- LED Lights in Stock Compartment Switched from Rear
