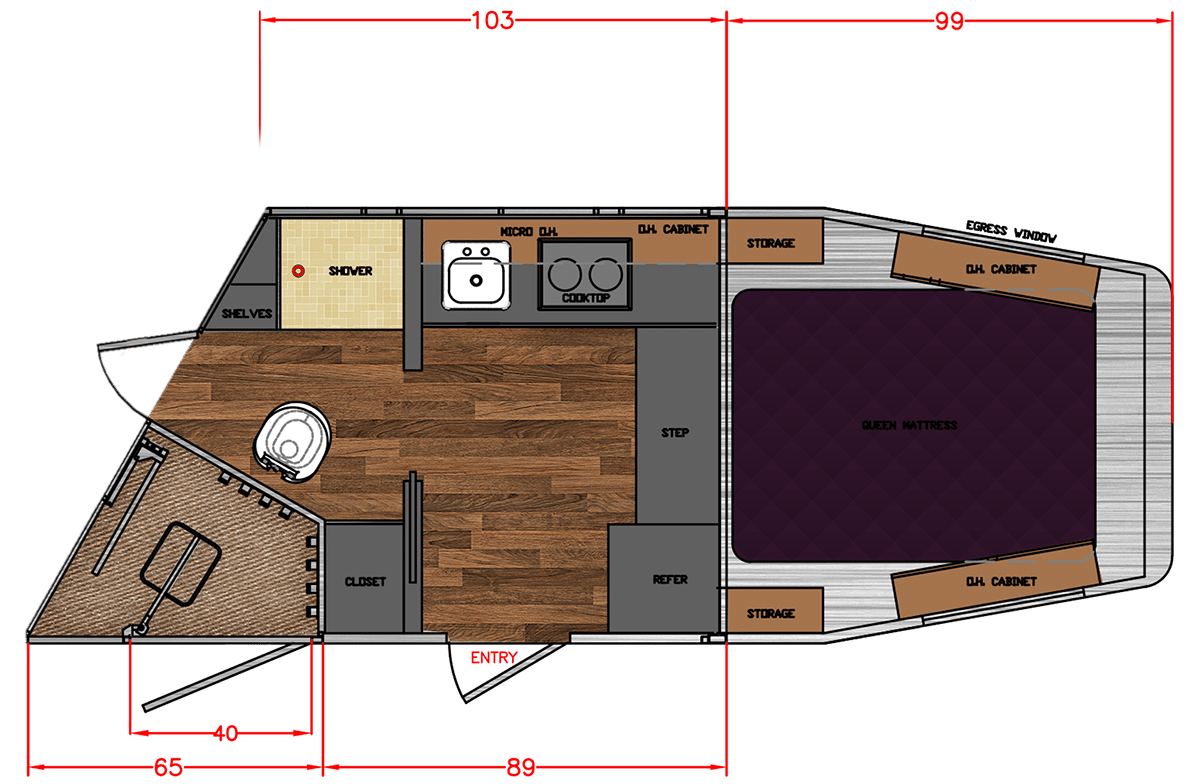

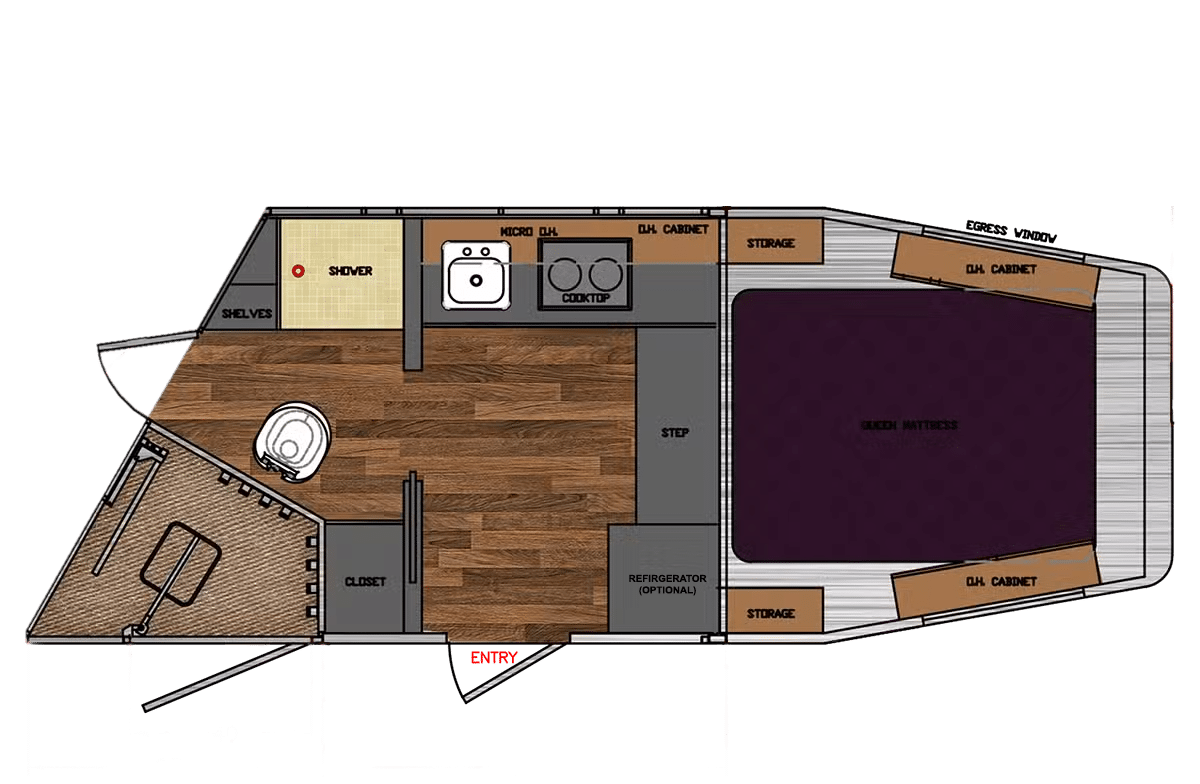

8 FT. WIDE LQ FLOOR PLAN
Western Premium Package
Soft Touch Fabric Wall | Alder Wood Cabinets | Power Awning | LED Accent Lights
Farmhouse Premium Package
Soft Touch Fabric Wall | 2- Tone Alder Cabinets | Power Awning | LED Accent Lights
Sizing It Up
No matter what you're hauling, we have the right size for you.

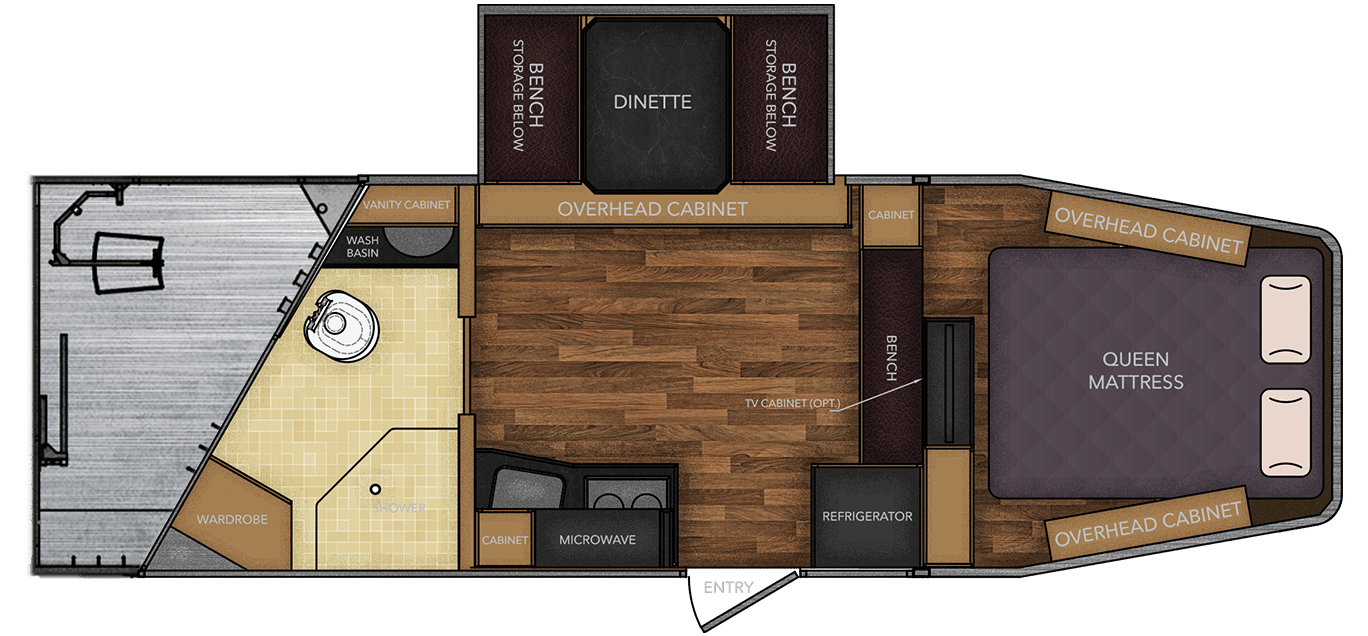

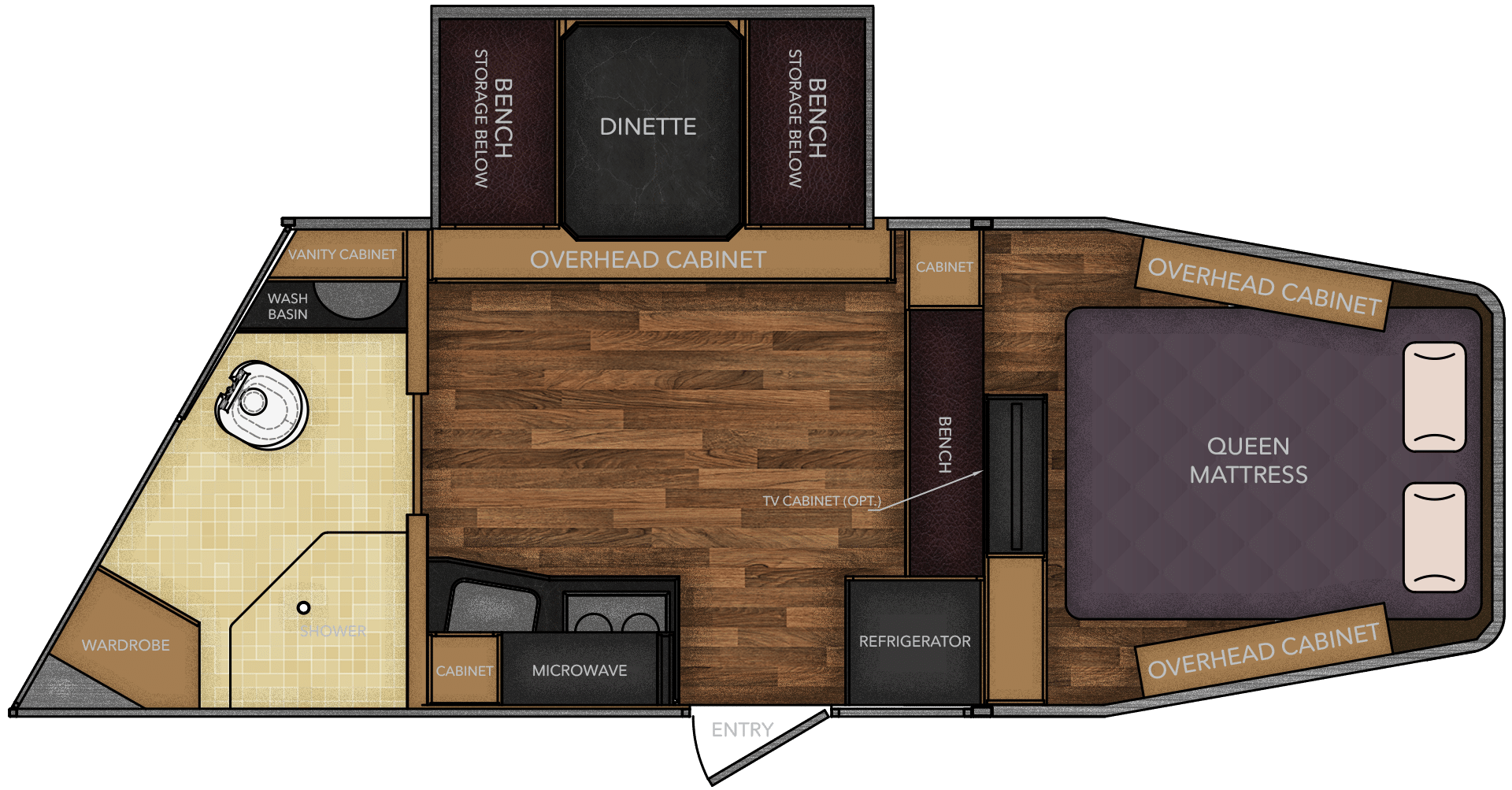

11'x15' Specifications
2 Horse GN
Floor:
22'11"
Axles:
6000 lbs
Tires:
ST235/80R16 LRE
Weight:
9200 lbs
3 Horse GN
Floor:
26'4"
Axles:
7000 lbs
Tires:
ST235/85R16 LRG
Weight:
9900 lbs
4 Horse GN
Floor:
29'9"
Axles:
8000 lbs
Tires:
ST235/85R16 LRG
Weight:
10600 lbs
Note: Addition of slide out will increase trailer weight 1100 lbs.

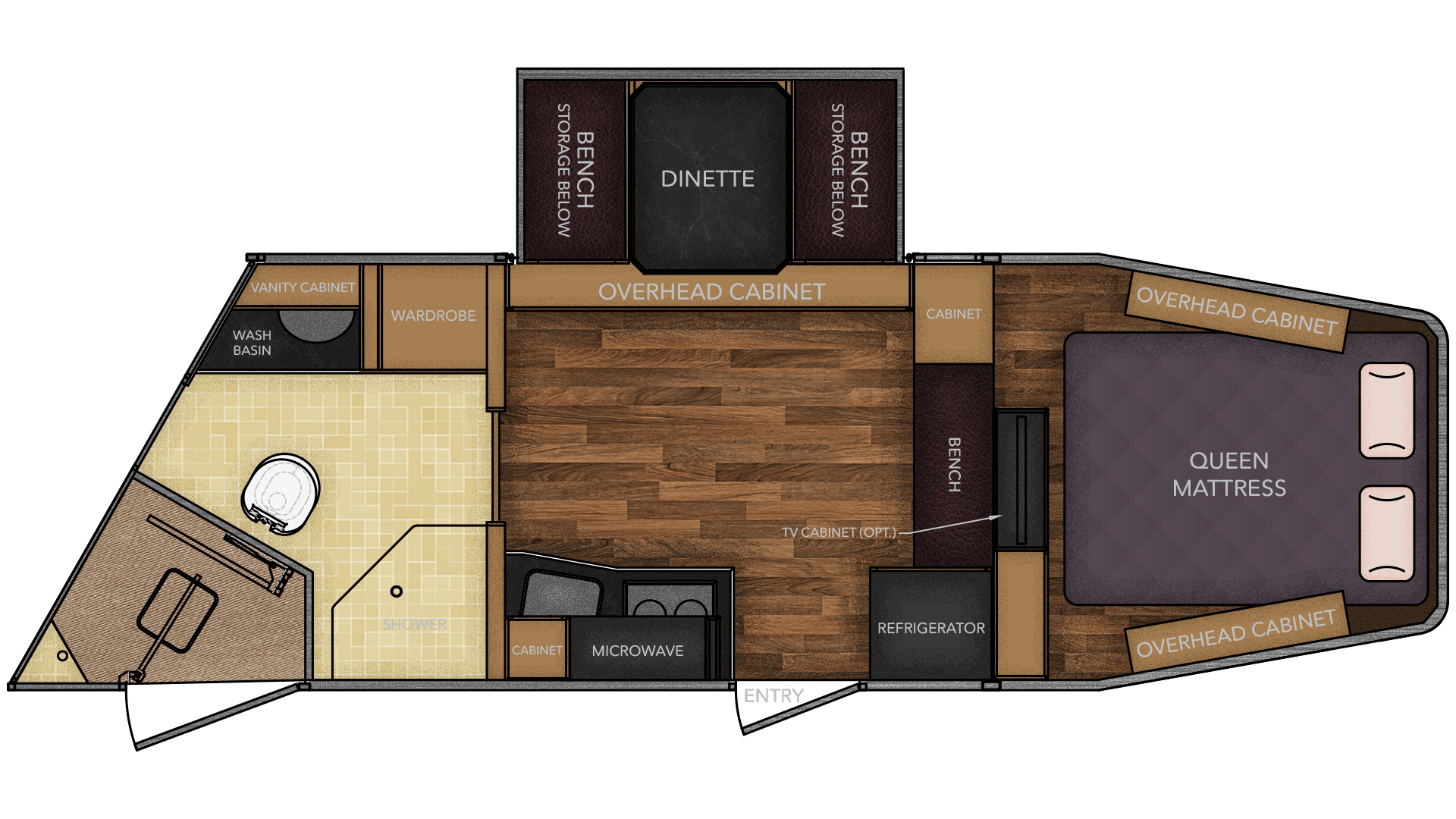

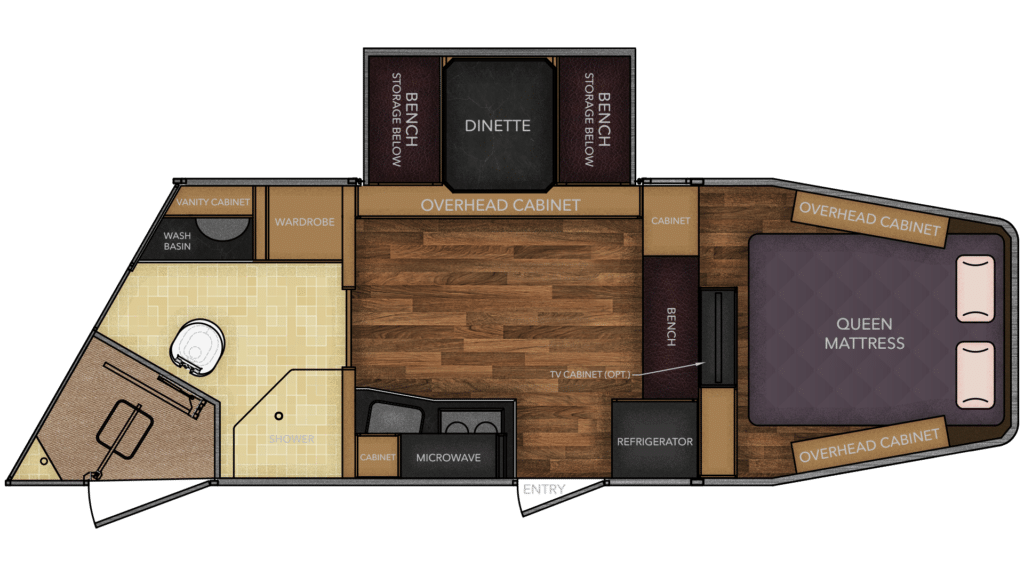

13'x13' Specifications
2 Horse GN
Floor:
24'11"
Axles:
6000 lbs
Tires:
ST235/80R16 LRE
Weight:
10860 lbs
3 Horse GN
Floor:
28'4"
Axles:
7000 lbs
Tires:
ST235/85R16 LRG
Weight:
11800 lbs
4 Horse GN
Floor:
31'9"
Axles:
8000 lbs
Tires:
ST235/85R16 LRG
Weight:
12740 lbs
Note: Addition of slide out will increase trailer weight 1100 lbs.

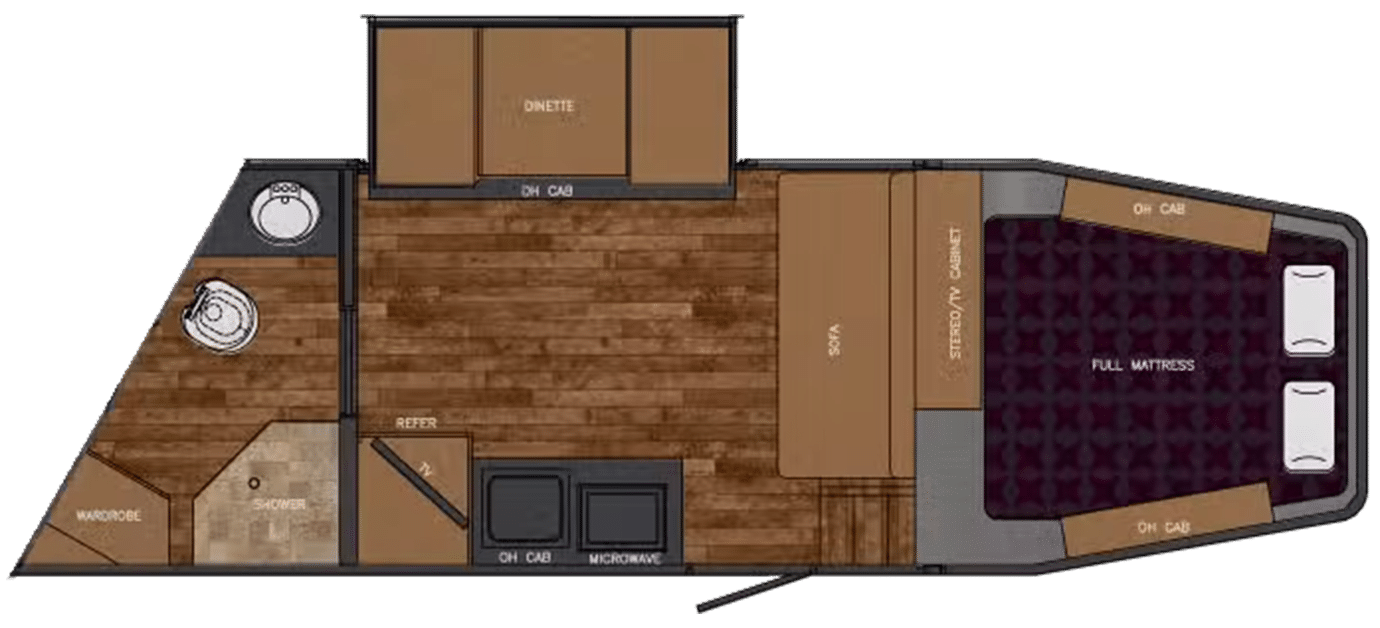

13'x17' Specifications
2 Horse GN
Floor:
24'11"
Axles:
6000 lbs
Tires:
ST235/80R16 LRE
Weight:
10860 lbs
3 Horse GN
Floor:
28'4"
Axles:
7000 lbs
Tires:
ST235/85R16 LRG
Weight:
11800 lbs
4 Horse GN
Floor:
31'9"
Axles:
8000 lbs
Tires:
ST235/85R16 LRG
Weight:
12740 lbs
Note: Addition of slide out will increase trailer weight 1100 lbs.

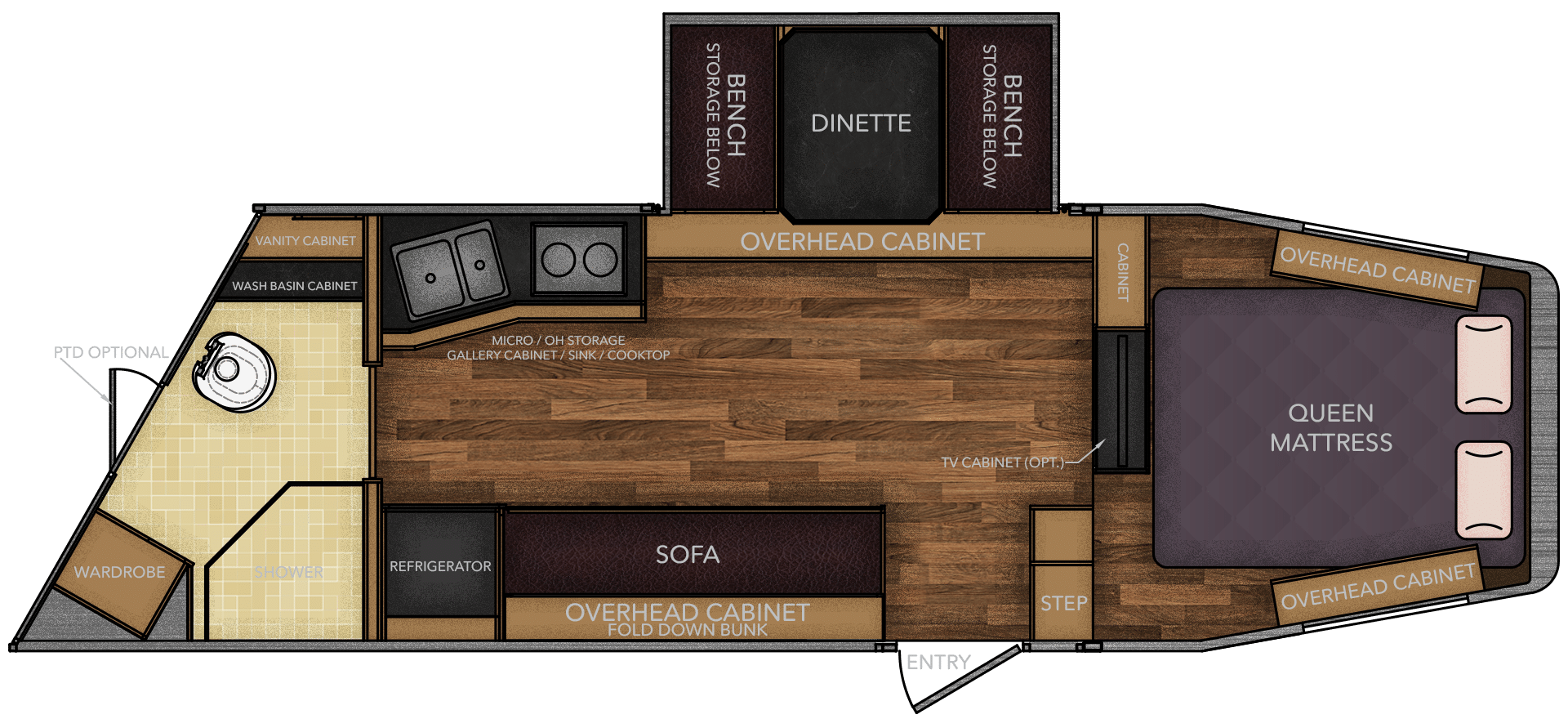

15'x19' Specifications
2 Horse GN
Floor:
26'9"
Axles:
6000 lbs
Tires:
ST235/80R16 LRE
Weight:
10800 lbs
3 Horse GN
Floor:
30'2"
Axles:
7000 lbs
Tires:
ST235/85R16 LRG
Weight:
11900 lbs
4 Horse GN
Floor:
33'7"
Axles:
8000 lbs
Tires:
ST235/85R16 LRG
Weight:
13100 lbs
Note: Addition of slide out will increase trailer weight 1100 lbs.
15'x19' Bunk Specifications
2 Horse GN
Floor:
26'9"
Axles:
6000 lbs
Tires:
ST235/80R16 LRE
Weight:
10800 lbs
3 Horse GN
Floor:
30'2"
Axles:
7000 lbs
Tires:
ST235/85R16 LRG
Weight:
11900 lbs
4 Horse GN
Floor:
33'7"
Axles:
8000 lbs
Tires:
ST235/85R16 LRG
Weight:
13100 lbs
Note: Addition of slide out will increase trailer weight 1100 lbs.
How It's Built
Engineered for comfort, ample storage, and ease of access
Construction & Exterior
- Camper Door w/ 24" Window
- 24" x 48" Egress Window
- 18" x 18" Kitchen Window
- 8'0" Gooseneck
- Hydraulic Jack
- Retractable Step Under Camper Door
- Power Awning
Interior
- Soft Touch Ceiling
- Synthetic Leather Sofa or Cushions
- ​Wood Valences
- Day/Night Shades
- Color Coordinated Interior
- Vinyl Floor w/ Wood Print Throughout
- Hardwood Cabinetry
Horse Compartment
- 7'0" Wide
- 7'6" Tall
- .050 Aluminum Exterior Sheets
- Drop Down Feed Doors - Head Side
- Sliding Windows - Tail Side
- Double Rear Doors
- Rubber Wall Mats - Horse Area
- Pop-Up Roof Vent Each Stall
- Slam Latch Dividers
- Hoof Grip Flooring
Safety
- Locking Water Fill Door
- Fire Extinguisher
- CO/Smoke Detector
- L.P. Detector
- Alternate Emergency Exit
Heating/Insulation
- Dual 5 gal. Propane Tanks w/ Auto Changeover
- Fully Insulated Floor, Roof and Walls
- 18,000 BTU Forced Air Furnace (ducted to bathroom)
- Ducted Air Conditioner
Galley
- 2 Burner Cooktop w/ Range Hood
- 6 cu. ft Double-door Refrigerator (available in 11’x15’ and 13'x13’ floorplans only)
- 8 cu. ft Double-door Refrigerator (available in 13’x17’ and 15'x19' floorplans only)
- Galley Sink
- Wood Trimmed Counter Tops
- Flip-up Counter Top Extension
- Microwave/Convection Oven
Premium Interior
- Western Premium Interior
- Farmhouse Premium Interior
- Weekender Premium Interior
- Upgrade Padded Fabric Walls
- LED Rope Lighting
- Lighted Wardrobe Cabinets
Electrical
- Locking Battery Box (batteries not included)
- AM/FM Stereo
- Monitor Panel
- 12v Outlets
- 110v Outlets
- 110v/12v Power Converter w/ Charger
- 30" Service Cord
- TV Antenna w/ Power Booster
- Porch Light by Camper Door
- Recessed LED Lighting
- Lighted Grab Handle by Exterior Door
Sleeping Accommodations
- Queen Size Bed
- Bedspread, Pillows & Shams
- Sofa/Dinette Converts into Bed
Horse Trailer
- Broom Closet
- Convenience Pkg.*
- Drop Down Tail Side Doors
- Exterior Load Light
- Fan (horse compartment)
- Feed Bag
- Feed Door Safety Screen
- Full Height Dividers
- Hay Rack and Ladder
- Manger
- Pass Through Door
- Rear Ramp
- Sealed Rear Tack
- Side Escape Door w/ Feed Door
- Solid Divider ILO Flow Thru
- Stainless Steel Front
- Stud Divider
* Convenience Package includes: Spare Tire, Water Tank, Door Organizer, (3) Exterior Load Lights, Sport Bag.
Fresh & Waste Water Systems
- Low Point Fresh Water Drains
- Demand Type Water Pump
- Combination Locking Water Center
- 48 gal. Fresh Water Tank
- 28 gal. Black Holding Tank
- 28 gal. Gray Holding Tank
- 6 gal. DSI Water Heater
- Water Heater By-pass
- Sewer Hose Storage Compartment
- Sewer Hose and Adapter
Bathroom
- 36” X 40” Shower Stall
- 12v Exhaust Fan
- Fresh Water Flush Toilet
- Wash Basin w/ Vanity
- Large Wardrobe Closet
Available LQ Options
- 4000W Gas Generator w/ 13 Gal. Fuel Cell
- 320W Solar Panel
- Slide-out Room w/ Dinette (std. in 13'x17' floorplan)
- 8 cu ft. Double Door Refrigerator (std. in 13’x17’ and 15’x19’ floorplan)
- Oven w/ 3 Burner Cooktop
- 24" TV (not available in 13‘x17’ floorplan)
- 32" TV w/ GN Enclosure
- Windows Each Side of Slide-out
- Roll-out Door Screen
- Sofa in Slide-out
- Dual 7.5 gal Propane Tanks
- Shower Dome
- Fantastic Vent
- Western Premium Interior
- Exterior 110v Outlet
- Exterior Faucet
- Exterior Speakers
- Auxiliary Propane Hook-up
- Pre-Wire for Generator (includes hay rack & ladder)
