Classic
Available in Gooseneck and Bumper Pull
Our Classic model is constructed with a steel frame and aluminum skins. It’s 7’0″ wide, and 7’0″ tall and comes standard with custom drop-down feed doors with face grills on the head side, sliding windows on the tail side, and a roof vent in each stall. The large 41″ stalls provide plenty of room and comfort for your horse and feature the industry’s best slam latch divider system. The tack room is roomy and functional and features our state-of-the-art swing-out saddle and blanket racks.
Built to Look Great and Last a Lifetime
Pictures may show optional features. Specifications subject to change without notice
Sizing It Up
No matter what you're hauling, we have the right size for you.
Gooseneck Specifications

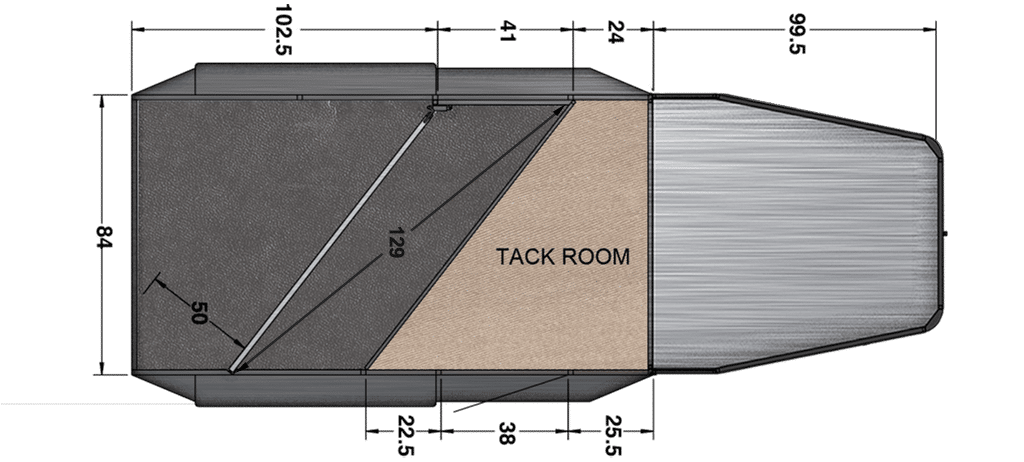

2 Horse GN
Floor: 14'
Axles: 3500 lbs
Tires: ST225/75R15 Load Range D
3 Horse GN
Floor: 17'5"
Axles: 6000 lbs
Tires: ST235/80R16 Load Range E
4 Horse GN
Floor: 20'9"
Axles: 6000 lbs
Tires: ST235/80R16 Load Range E
5 Horse GN
Floor: 24'2"
Axles: 7000 lbs
Tires: ST235/80R16 Load Range E
6 Horse GN
Floor: 27'6"
Axles: 7000 lbs
Tires: ST235/80R16 Load Range E
Bumper Pull Specifications

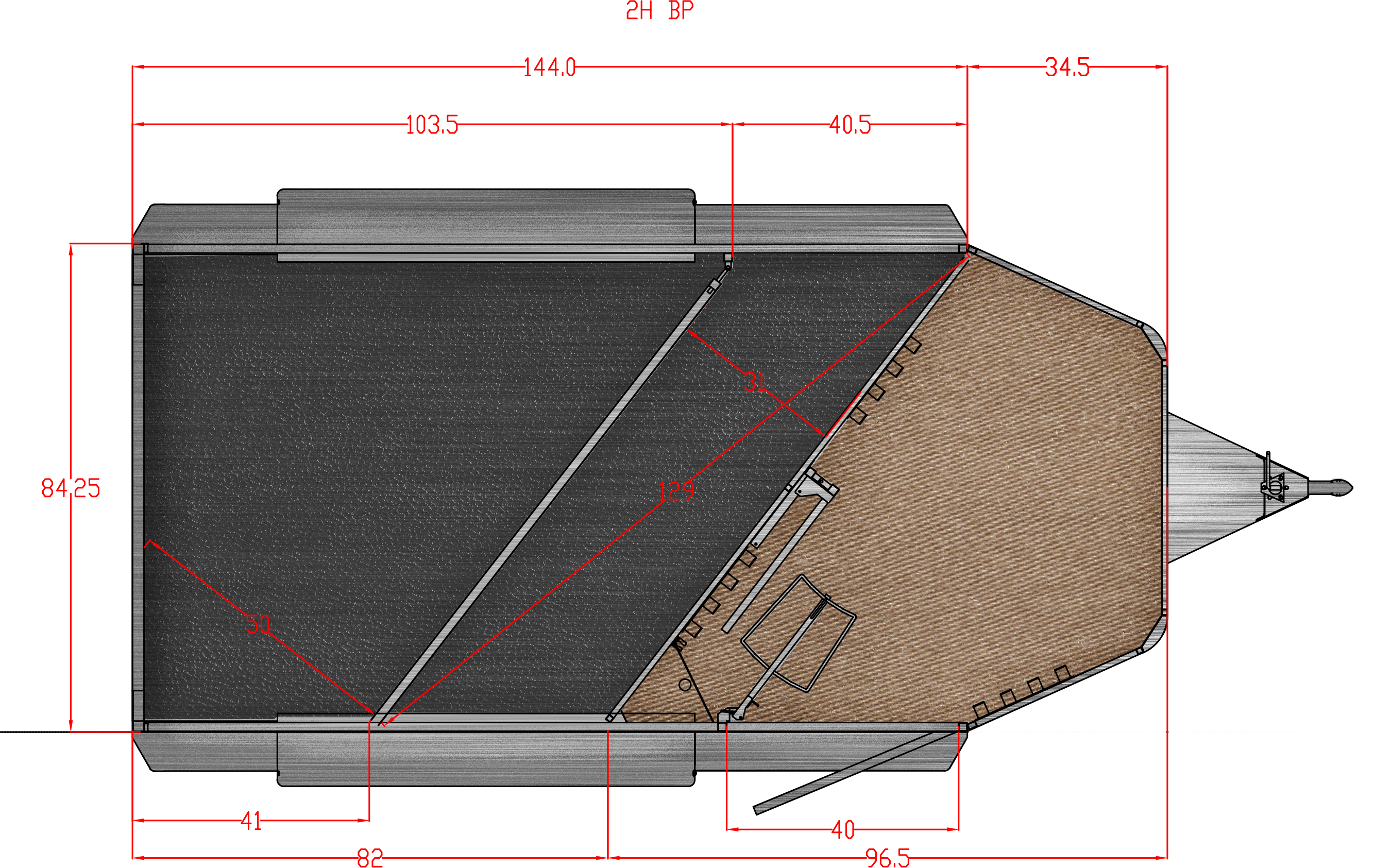

2 Horse BP
Floor: 14'6"
Axles: 3500 lbs
Tires: ST225/75R15 Load Range D
Weight: 3120 lbs.

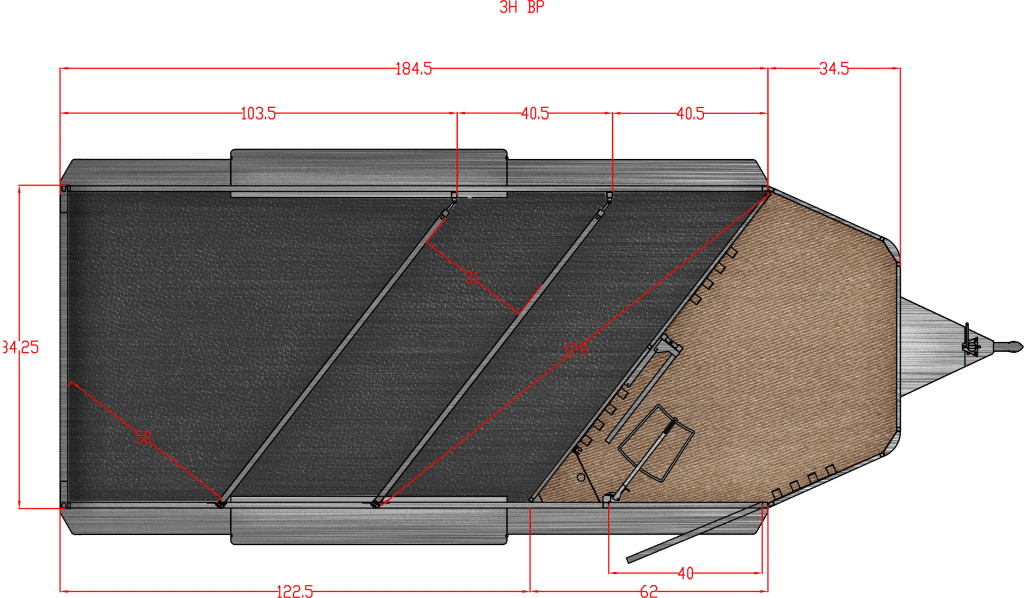

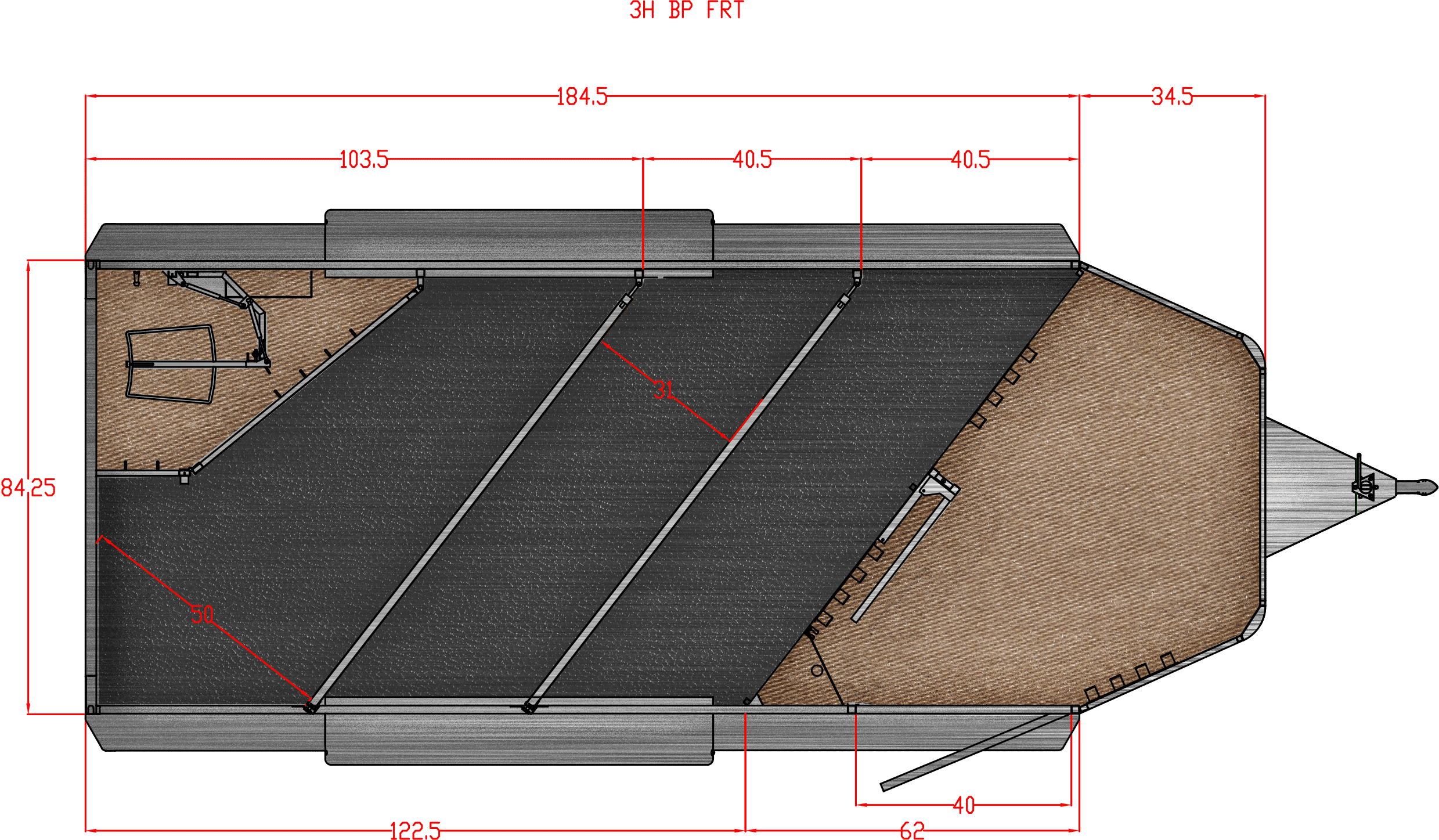

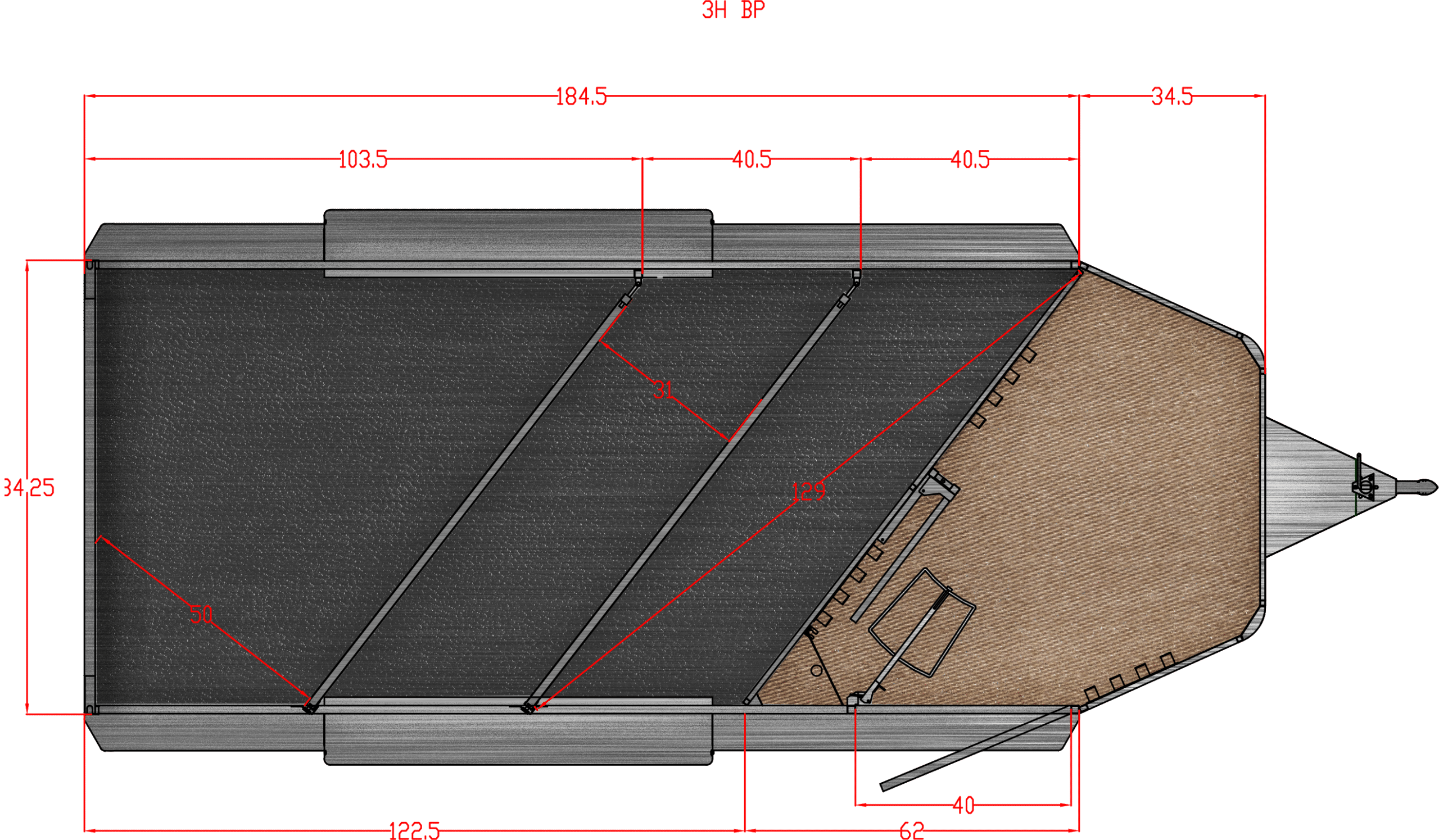

3 Horse BP
Floor: 18'3"
Axles: 6000 lbs
Tires: ST235/80R16 Load Range E
Weight: 3860 lbs

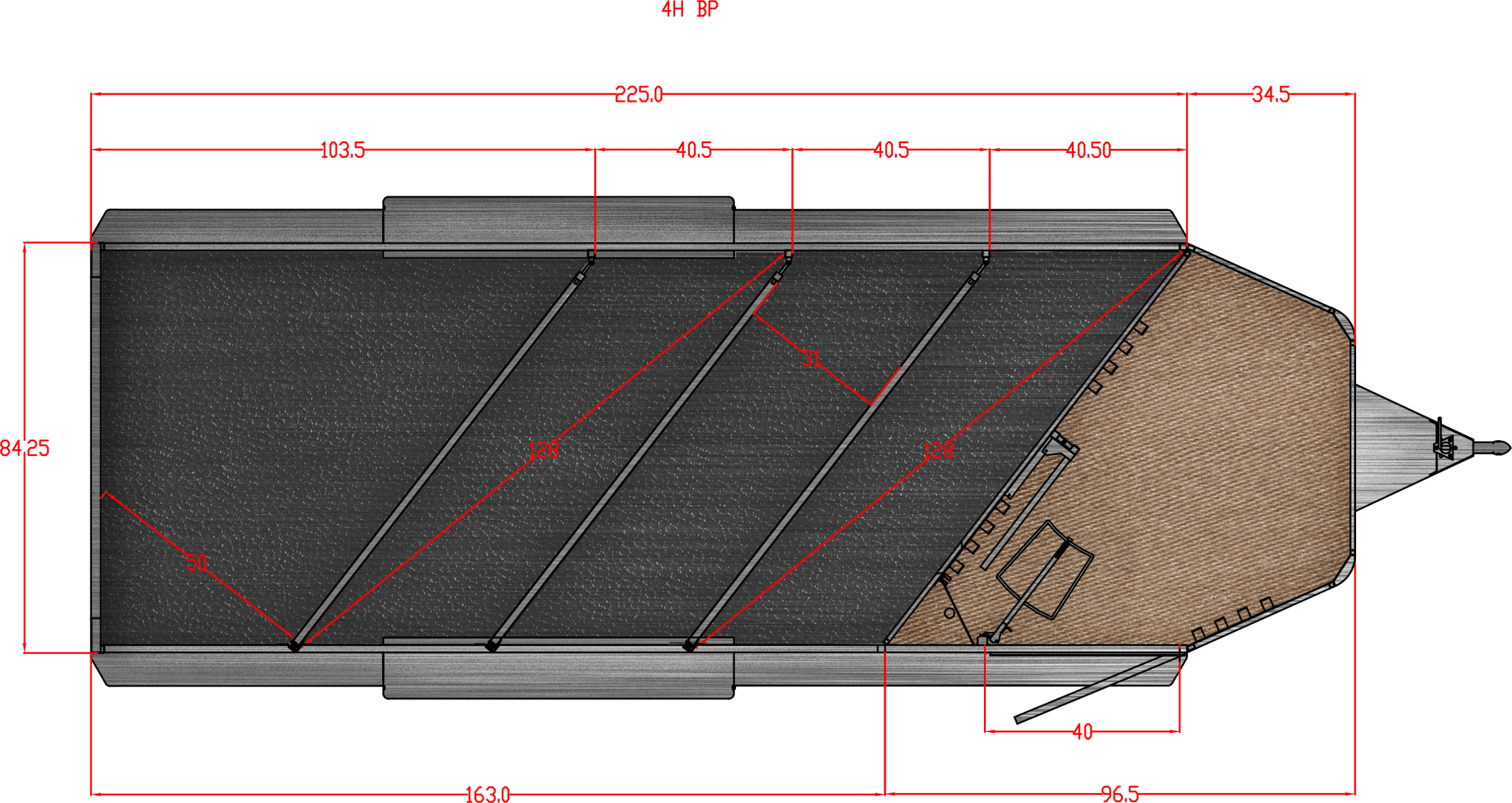

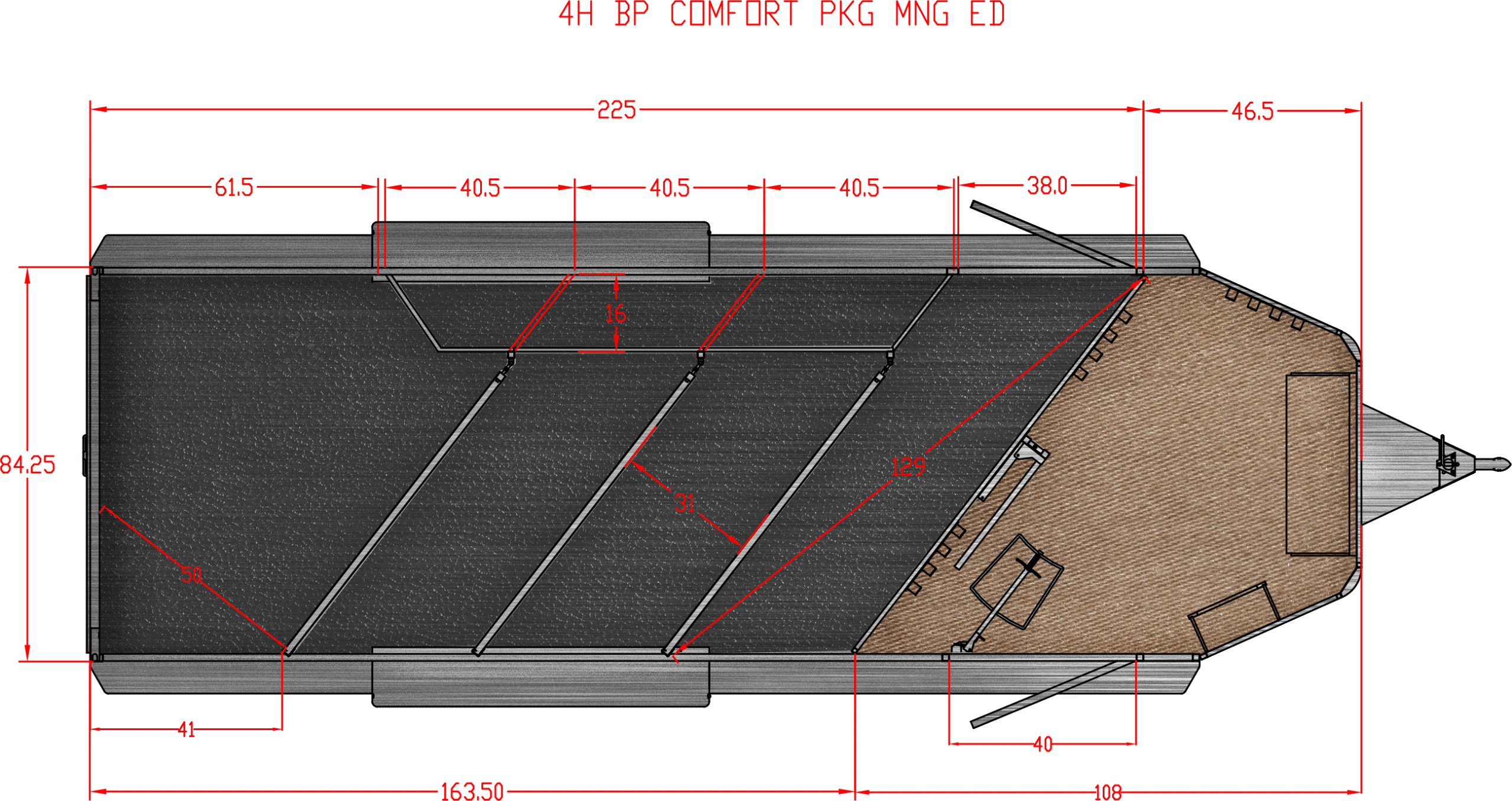

4 Horse BP
Floor: 19’2″
Axles: 6000 lbs
Tires: ST235/80R16 Load Range E
Weight: 4470 lbs
How It's Built
A Strong, Conventional Design
Structural Features
- 7'0" Wide, 7’0” Tall
- Aluminum One-Piece Roof
- .050 Aluminum Exterior Sheets
- Torsion Axles with Easy Lube Hubs
- 4 Wheel Electric Brakes
- Radial Tires
- Aluminum Wheels
- Rubber Bumper
- 2 x 10 Douglas Fir Flooring
Tack Room Features
- Fully Sealed Angle Wall W/ Full Carpet
- Carpeted Floor and Gooseneck Deck
- Screened Window on Each Side of Gooseneck
- 38" Tack Door with Window
- Dome Light (2 in GN)
- Clothes Rod
- 12 Bridle Hooks
- 4 Headstall Holders
- 2 Brush Trays
- Swing-Out Saddle Rack
- Swing-Out Blanket Rack
Horse Compartment Features
- Triple Wall Construction
- Bottom Latch Drop Down Feed Doors Head Side
- Drop Down Feed Door Safety Grill
- Sliding Windows Tail Side
- Roof Vent in Each Stall
- LED Dome Light in Each Stall
- Slam latch, Aluminum, Jailbar Dividers
- Divider Pads
- Rubber Floor Mats
- Rubber Wall Mats
- 45/55 Double Rear Doors
Warranty
- One Year Paint/Trim Warranty
- Five Year Limited Structure Warranty
- Eight Year Limited Floor Warranty
Structural Options
- Additional Height

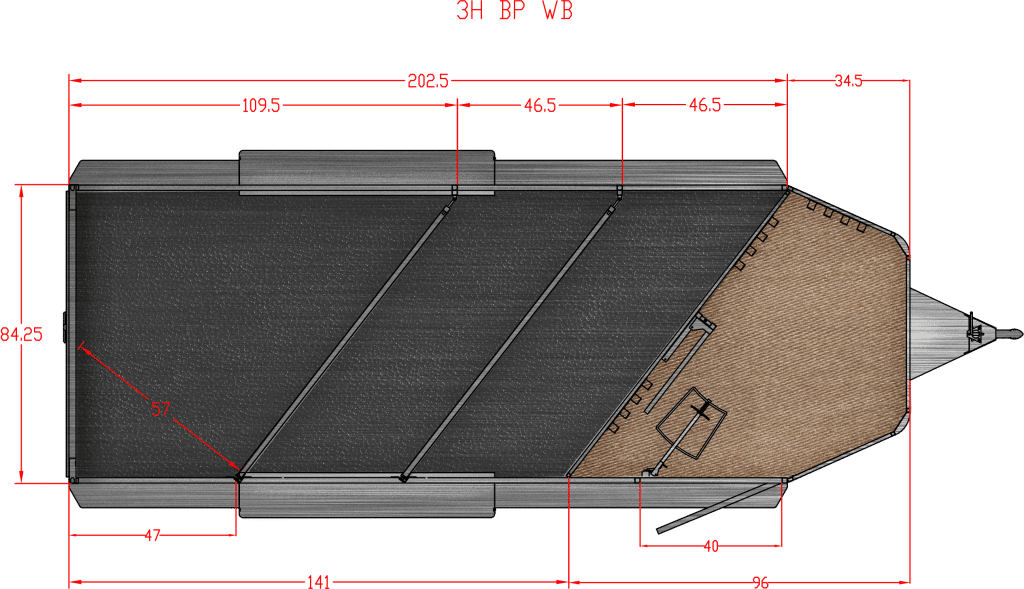

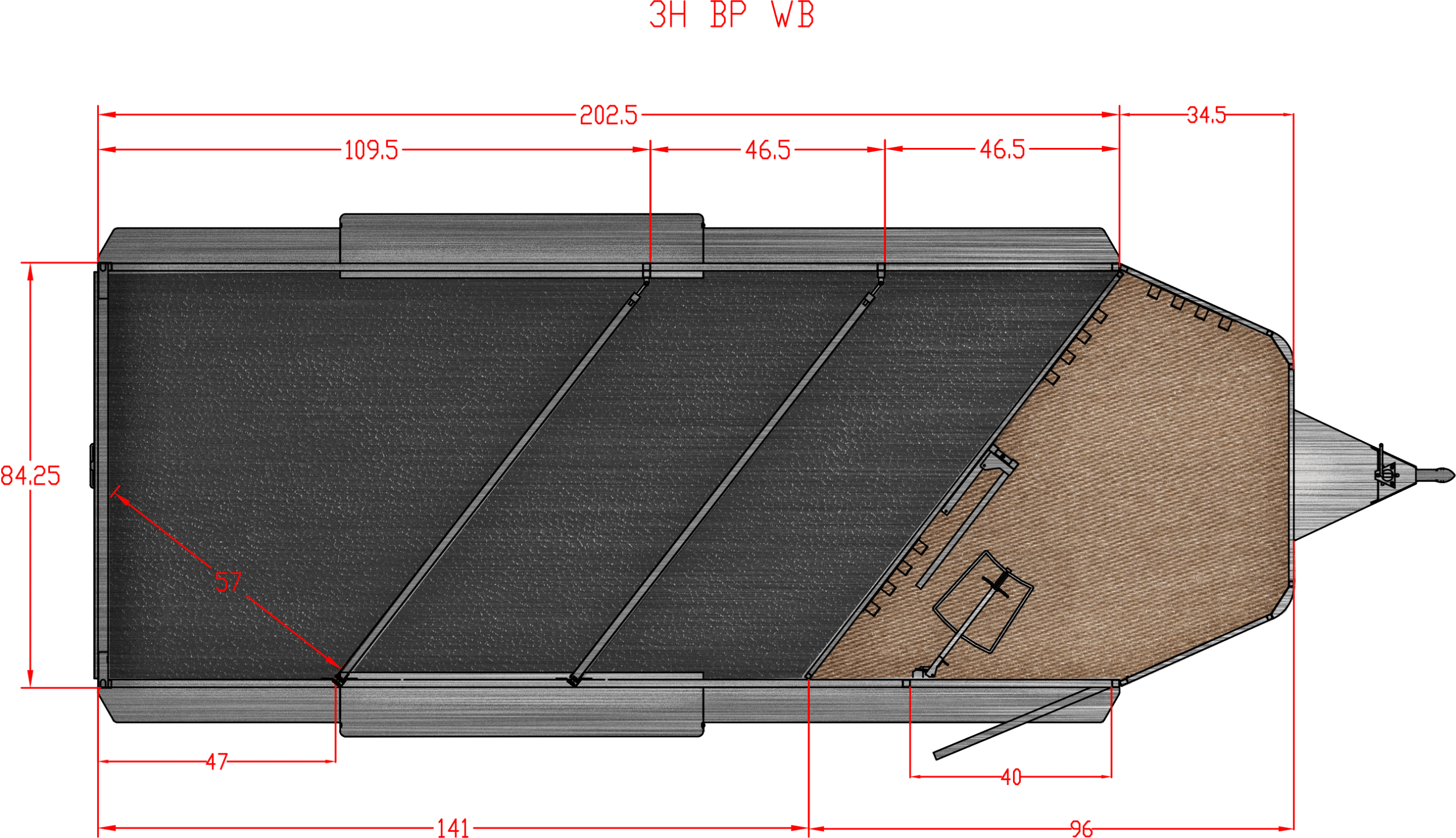

- Warmblood Package w/ Additional Height
- 7'0" Warmblood Package
- Single Rear Door
- Ramp Behind Rear Gate or Double Doors
- Axle Upgrades
- Tire Upgrades
- King Pin Coupler
- Hydraulic Jack
- 8' Wide (Gooseneck Models Only)
Horse Compartment Options
- Tailside Drop Down Door
- Solid Divider
- Removable Aluminum Stud Partition
- Side Escape Door w/Drop Down Feed Door

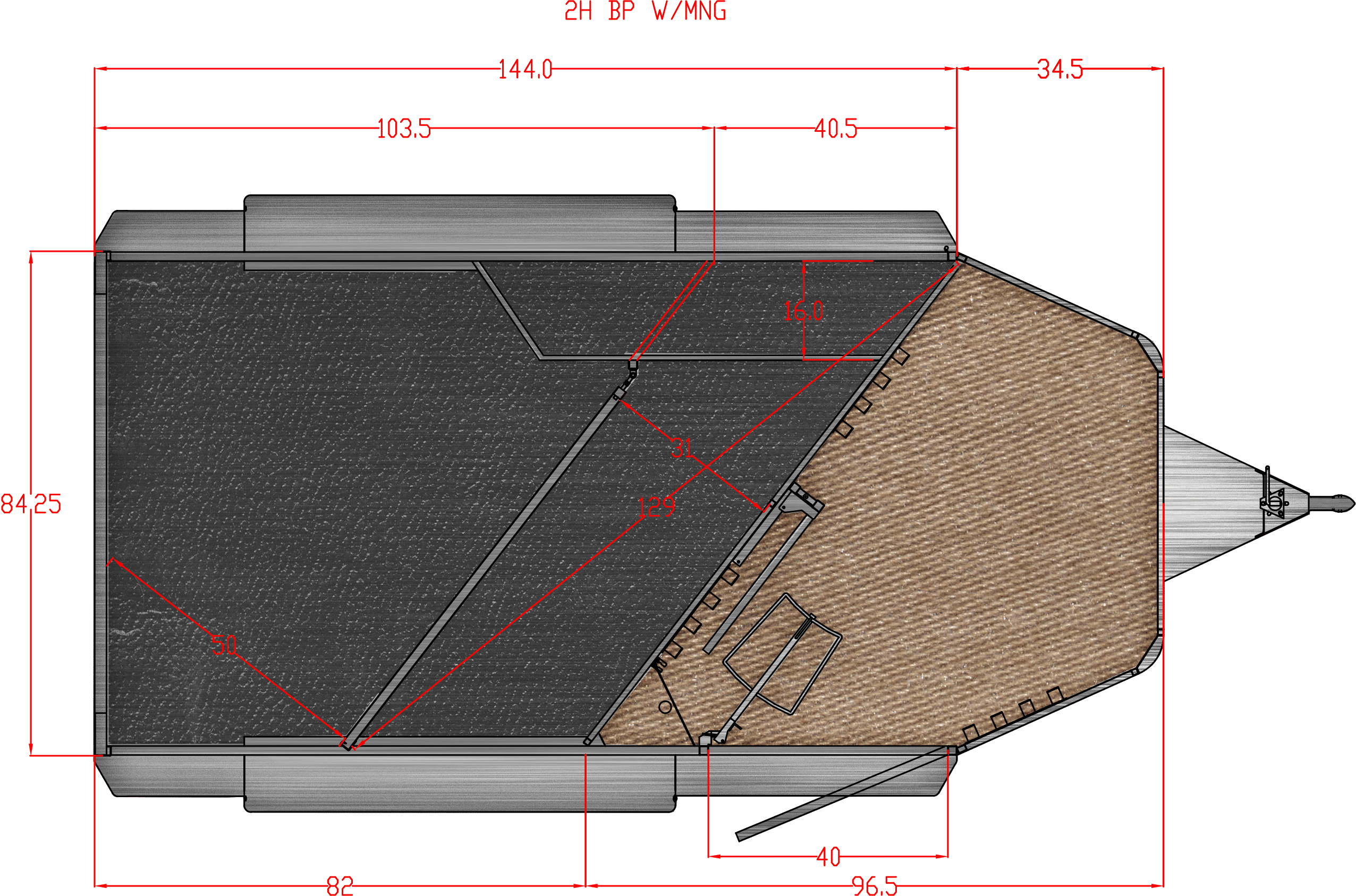

- Manger with Storage Below
- Rear Broom Closet
- Halter Tie Straps
- Windows in Rear Doors
- Feed Bags
- Padded Butt Strap (Rear Tack Only)
- Line and Insulated Top Half of Walls
- Line and Insulated Roof
- Stall Fans
Tack Room Options
- Convenience Package BP^
- Comfort Package GN*
- Overnighter Package GN**
- Vanity Cabinet with Mirrored Door
- Stationary Saddle Rack
- Walkthrough Door
- Additional Length

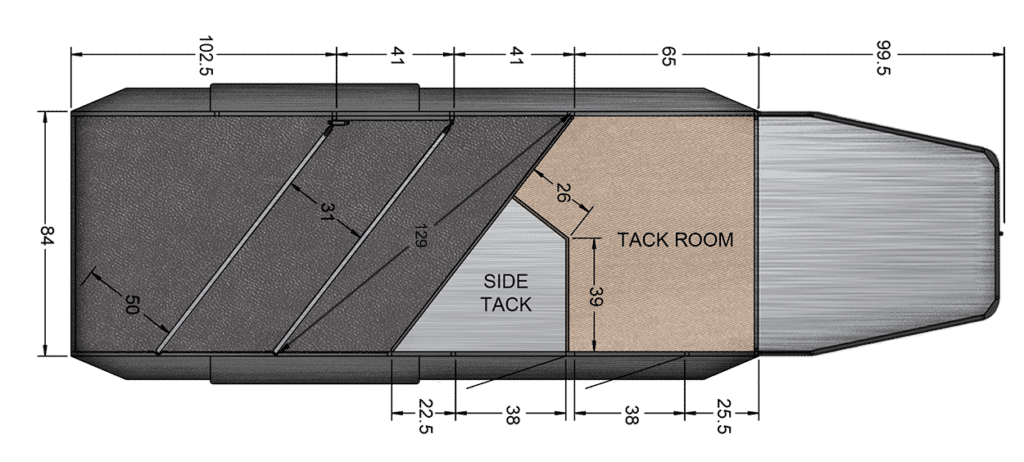

- Side Tack
- Mid-Tack
- Angled Mid-Tack
- Sealed Rear Tack

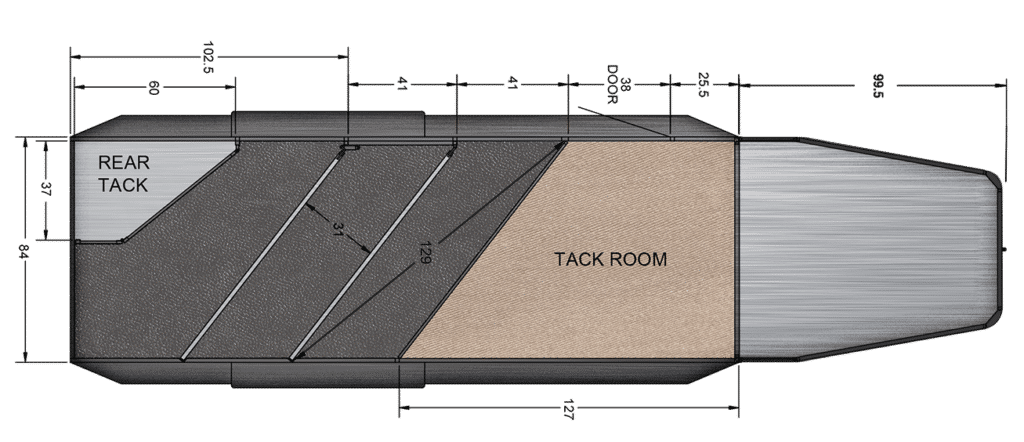

- Folding Rear Tack
- Living Quarters
- Air Conditioner
- Pre-Wire for Air Conditioner
- Half Boot Box
- Boot Box Cooler
- Door Mounted Tack Organizer
- Sport Boots Bag (Saddle Rack Mounted)
- 25 Gallon Water Tank w/ Hose
- Stereo w/ CD Player
- Exterior Speakers w/ Comfort Package
- Rubber Mats on Floor
- 18" x 18" Window
- 24" x 48" Window
- 24" x 48" Egress Window
- 14" x 14" Camper Window
^Includes: 1 ft. in length to tack room, lined and insulated walls and ceiling, boot box and vanity cabinet
*Includes: Paneled and Insulated dressing room, boot box, vanity cabinet, locking battery box, hat racks, coat hooks, clothes rod, mirror, cup holder.
**Includes: Comfort package, 110 V outlet, converter, egress window, furnace, pre-wired for air conditioner, dual boot box, mattress, LP tanks.
Accessory Options
- Silver, Charcoal, or Black Roof Rail
- Convenience Package*
- Aluminum Hay Rack and Ladder
- Stainless Steel Lower Wall Panels
- Stainless Steel Front
- Additional Dome Lights
- Porch Light
- Spare Tire
- Flood Light
- Locking Battery Box
Paint & Trim
- Acidic Phosphatizing Wash
- Polymer Coating
- Epoxy Primer
- Polyurethane Paint
- Infrared Cured
- Choice of Graphic Color
- Tread Brite Front & GN Gussets
- Backup Lights
- Double Tail Lights
- Molded 7-Way RV Plug
- Hotwire Package w/ Battery Box
- LED Lighting
